MSS-LR-PC(40) Equivalent & Substitute Parts

Part Overview

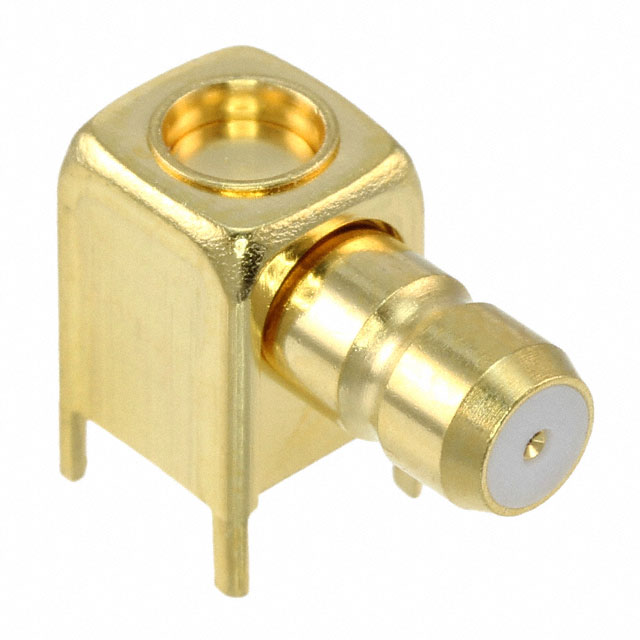

The MSS-LR-PC(40) is a coaxial connector receptacle manufactured by Hirose Electric Co., Ltd., designed for 50-ohm RF applications. This right-angle, through-hole mounted connector features a female socket configuration with solder contact termination and crimp shield termination. The part is currently in Last Time Buy status, indicating discontinued production with limited inventory availability. Identifying equivalent and substitute parts is essential for ensuring design continuity, procurement flexibility, and long-term supply chain reliability.

Substiute Parts

MSS-LR-PC(40)

Hirose Electric Co., Ltd.In Stock: 828MSS-LR-PC(40) Datasheet

Current PartRFQ

MSS-LR-PC-A(40)

Hirose Electric Co LtdIn Stock: 1103MSS-LR-PC-A(40) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MSS-LR-PC(40) is determined by strict equivalence across the following critical parameters:

• Connector Type & Style: Receptacle, female socket configuration within the MSS series
• Impedance Rating: 50 ohms for RF signal integrity
• Mounting Configuration: Through-hole, right-angle orientation for PCB integration
• Contact & Shield Termination: Solder contact with crimp shield termination
• Frequency Performance: Maximum operating frequency of 500 MHz
• Environmental Compliance: RoHS compliance and MSL rating

The MSS-LR-PC-A(40) qualifies as a manufacturer-recommended substitute based on matching these core electrical and mechanical parameters while maintaining compatibility with existing PCB designs and assembly processes.

Parameter Comparison

Engineering Selection Recommendations

The MSS-LR-PC-A(40) is the manufacturer-recommended substitute for the MSS-LR-PC(40). Both connectors maintain identical electrical and mechanical specifications, ensuring direct compatibility in existing designs. The primary distinction is product status: the original MSS-LR-PC(40) is in Last Time Buy phase with limited inventory (771 pcs), while the MSS-LR-PC-A(40) is in Active production status with greater availability (1036 pcs). Both parts maintain RoHS compliance and equivalent environmental ratings. Selection should prioritize the MSS-LR-PC-A(40) for new designs and long-term supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can the MSS-LR-PC-A(40) be used as a direct replacement for the MSS-LR-PC(40)?

A: Yes. Both connectors share identical electrical specifications (50-ohm impedance, 500 MHz maximum frequency), mechanical configuration (through-hole, right-angle mounting), and termination methods (solder contact, crimp shield). PCB footprints and assembly processes remain unchanged.

Q: What is the difference between these two part numbers?

A: The MSS-LR-PC(40) is in Last Time Buy status with declining inventory. The MSS-LR-PC-A(40) is the active production equivalent with sustained availability. The "A" designation indicates the current production variant.

Q: Are there any compliance or environmental differences?

A: Both parts maintain RoHS compliance and MSL rating of 1 (Unlimited). Environmental operating ranges and material specifications are equivalent.

Q: Should I transition to the MSS-LR-PC-A(40) for new designs?

A: Yes. The active production status of the MSS-LR-PC-A(40) ensures long-term supply availability and design continuity. The Last Time Buy status of the original part indicates limited future procurement options.

Q: Are packaging specifications identical?

A: Both parts are supplied in bulk packaging suitable for manufacturing environments. Packaging specifications are equivalent for assembly and handling purposes.
