MSSA211NG Equivalent & Substitute Parts

Part Overview

The MSSA211NG is a slide switch manufactured by TE Connectivity ALCOSWITCH Switches, configured as a Double Pole Double Throw (DPDT) switch with non-shorting contact timing. This component is rated for 0.4VA at 20V AC/DC and features a through-hole mounting configuration with gold-plated copper alloy contacts. The part is classified as obsolete, necessitating identification of functionally equivalent alternatives from active product lines to maintain design continuity and ensure supply chain availability.

Substiute Parts

MSSA211NG

TE Connectivity ALCOSWITCH SwitchesIn Stock: 1040MSSA211NG Datasheet

Current PartRFQ

1201M2S1CQE2

C&KIn Stock: 13531201M2S1CQE2 Datasheet

SimilarRFQ

1201M2S3CBE2

C&KIn Stock: 20931201M2S3CBE2 Datasheet

SimilarRFQ

1201M2S3CQE2

C&KIn Stock: 31491201M2S3CQE2 Datasheet

SimilarRFQ

500SDP1S1M2QEA

E-SwitchIn Stock: 998500SDP1S1M2QEA Datasheet

SimilarRFQ

500SDP1S1M2REA

E-SwitchIn Stock: 854500SDP1S1M2REA Datasheet

SimilarRFQ

500SDP1S4M2QEA

E-SwitchIn Stock: 904500SDP1S4M2QEA Datasheet

SimilarRFQ

SS22SDP2LC

NKK SwitchesIn Stock: 1029SS22SDP2LC Datasheet

SimilarRFQ

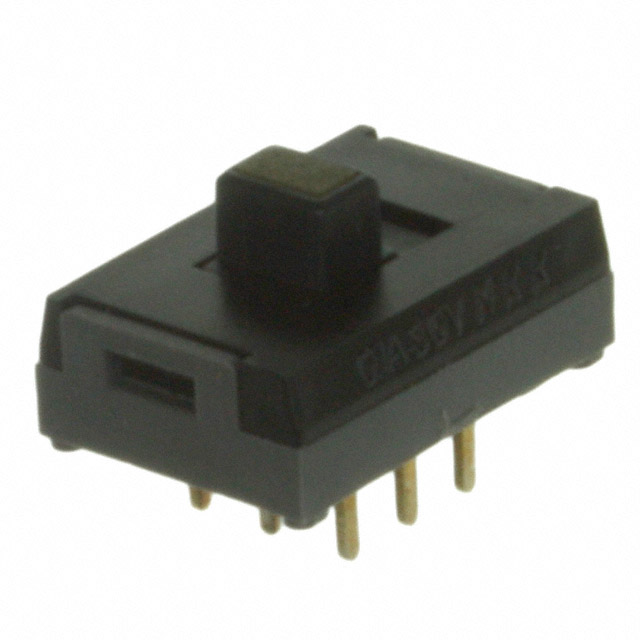

SS22SDP2LE

NKK SwitchesIn Stock: 773SS22SDP2LE Datasheet

SimilarRFQ

SS22SDP2LF

NKK SwitchesIn Stock: 814SS22SDP2LF Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MSSA211NG is determined by strict alignment of electrical and mechanical parameters. The primary substitution criteria are:

Mandatory Matching Parameters:

• Circuit configuration: DPDT
• Switch function: On-On
• Current rating: 0.4VA (AC/DC)
• Voltage rating: 20V AC and 20V DC
• Mounting type: Through Hole
• Termination style: PC Pin
• Contact finish: Gold

Secondary Compatibility Factors:

• Contact material: Copper or Copper Alloy
• Operating temperature range: Must encompass or exceed -20°C to 65°C
• RoHS compliance: ROHS3 Compliant
• Moisture sensitivity level: MSL 1 (Unlimited)

Substitute parts are grouped into two categories based on electrical performance alignment:

Category A - Direct Electrical Equivalents (0.4VA, 20V): Parts matching all mandatory electrical parameters with identical current and voltage ratings.

Category B - Higher Performance Alternatives (6A, 120V): Parts with superior electrical ratings that operate within the MSSA211NG's voltage and current envelope, suitable for applications requiring design margin or future capability expansion.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes (Direct Electrical Equivalents):

The C&K 1201M2S3CBE2 and E-Switch 500SDP1S1M2REA are the preferred direct substitutes for the MSSA211NG. Both parts maintain identical electrical specifications (0.4VA, 20V AC/DC) and through-hole PC pin termination. The 1201M2S3CBE2 offers extended electrical life (100,000 cycles versus 30,000 cycles) and expanded operating temperature range (-30°C to 65°C). The 500SDP1S1M2REA provides the widest operating temperature envelope (-30°C to 85°C) while maintaining mechanical and electrical life ratings equivalent to the original part. Both alternatives are active products with ROHS3 compliance and MSL 1 moisture sensitivity rating.

Secondary Substitutes (Higher Performance Ratings):

The C&K 1201M2S1CQE2, C&K 1201M2S3CQE2, E-Switch 500SDP1S1M2QEA, and E-Switch 500SDP1S4M2QEA provide superior electrical ratings (5A to 6A at 120V AC) while remaining compatible with the MSSA211NG's 20V DC operating envelope. These parts are suitable for applications where design margin or future capability expansion is required. All secondary substitutes are active products with ROHS3 compliance.

Not Recommended:

The NKK Switches SS22SDP2LF, SS22SDP2LE, and SS22SDP2LC are not suitable substitutes. These parts feature significantly lower current ratings (100mA DC), different contact timing (Shorting MBB versus Non-Shorting BBM), reduced electrical life (10,000 cycles), and narrower operating temperature range (-15°C to 60°C). The contact material (Phosphor Bronze with Silver finish) and contact timing characteristics differ fundamentally from the MSSA211NG specification.

Frequently Asked Questions (FAQ)

Q: Can the 1201M2S3CBE2 directly replace the MSSA211NG in existing designs?

A: Yes. The 1201M2S3CBE2 maintains identical electrical specifications (0.4VA, 20V AC/DC), DPDT circuit configuration, On-On switch function, and through-hole PC pin termination. The part is pin-compatible and electrically equivalent. The extended electrical life (100,000 cycles) and expanded operating temperature range provide additional design margin.

Q: What is the difference between the 500SDP1S1M2REA and 500SDP1S1M2QEA?

A: The 500SDP1S1M2REA is rated for 0.4VA at 20V AC/DC with gold-plated contacts, directly matching the MSSA211NG electrical specification. The 500SDP1S1M2QEA is rated for 5A at 120V AC with silver-plated contacts, providing higher electrical performance. Selection depends on application requirements and whether design margin is needed.

Q: Are the NKK Switches SS22SDP2 series parts suitable alternatives?

A: No. The SS22SDP2 series parts have significantly lower current ratings (100mA DC maximum), different contact timing (Shorting MBB), reduced electrical life (10,000 cycles), and narrower operating temperature range. These parts do not meet the MSSA211NG electrical or mechanical specifications.

Q: What is the significance of contact timing (Non-Shorting BBM versus Shorting MBB)?

A: Contact timing determines the switching sequence when transitioning between positions. Non-Shorting (BBM) breaks the existing connection before making the new connection, preventing momentary short circuits. Shorting (MBB) makes the new connection before breaking the existing connection. The MSSA211NG uses Non-Shorting timing; substitutes with different contact timing may cause circuit behavior changes.

Q: Can higher-rated parts like the 1201M2S1CQE2 (6A, 120V) be used in place of the MSSA211NG (0.4VA, 20V)?

A: Yes, from an electrical compatibility perspective. Higher-rated parts operate safely at lower electrical loads. However, physical differences such as actuator length (1.02mm versus 2.79mm) and contact finish (Silver versus Gold) may affect mechanical fit and circuit performance. Verify mechanical compatibility and contact material requirements before substitution.

Q: What does MSL 1 (Unlimited) moisture sensitivity mean?

A: MSL 1 indicates the component has unlimited shelf life and requires no special moisture control during storage or handling. All listed substitutes maintain MSL 1 rating, ensuring equivalent moisture sensitivity characteristics.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All substitute parts listed are ROHS3 compliant, matching the compliance status of the MSSA211NG. This ensures regulatory equivalence for applications subject to RoHS requirements.

Q: What is the impact of different actuator lengths on substitution?

A: Actuator length affects the physical engagement depth with the switch mechanism. The MSSA211NG has a 2.79mm actuator length. Substitute parts range from 1.02mm to 5.08mm. Verify that the selected substitute's actuator length is compatible with the mechanical design of the application before implementation.
