Equivalent & Substitute Parts for MSD15-2415 DC DC Converter

Part Overview

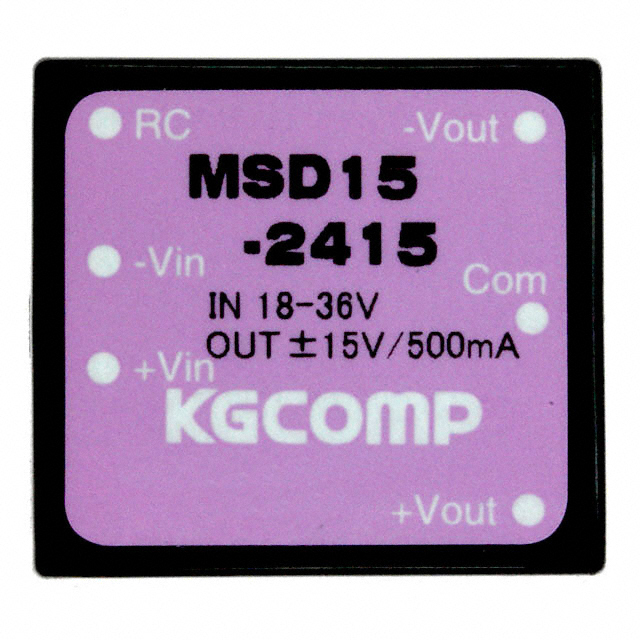

The MSD15-2415 is a DC DC converter manufactured by Kaga Electronics USA, designed for ITE (Commercial) applications requiring isolated, dual output voltages of +15V and -15V at up to 500mA each, with an input voltage range of 18V–36V and 15W output power. The product is currently classified as obsolete, making it necessary to identify substitute parts with matched electrical and mechanical characteristics to ensure uninterrupted system operation or maintenance.

Substiute Parts

MSD15-2415

Kaga Electronics USAIn Stock: 969MSD15-2415 Datasheet

Current PartRFQ

PXB15-24WD15/N

TDK-Lambda Americas IncIn Stock: 682PXB15-24WD15/N Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is determined strictly by matching essential electrical output characteristics (voltage, current, power), input range, mechanical attributes (package, mounting type, dimensions), and compliance factors (certifications, RoHS status). For DC DC converters, key substitution parameters are:

• Voltage and Current ratings for both inputs and outputs
• Output Power
• Number of Outputs and Output Voltage Levels
• Isolation Voltage
• Physical mounting and package compatibility
• Product compliance and approval certification

Parameter Comparison

Engineering Selection Recommendations

The MSD15-2415 is obsolete. Substitution should prioritize parts such as PXB15-24WD15/N which retain matching electrical parameters (dual ±15V outputs at 500mA, 15W, input 18–36V up to 36V), mechanical compatibility (through-hole, 6-DIP Module package), and RoHS environmental compliance. Where agency and standard approvals are required, confirm based on provided documentation or explicit part data; do not infer.

Frequently Asked Questions (FAQ)

Q1: What defines a compatible substitute for the MSD15-2415 DC DC converter?
A: Compatibility requires matching output voltages and currents, input voltage range, output power, isolation voltage, number of outputs, mounting type, package, dimensions, and RoHS compliance.

Q2: Are substitute parts required to have the same approval agency and standards?
A: Substitution is strictly based on provided approval information. If explicit agency or standard data is present, only use it as listed.

Q3: Is package size critical for substituting DC DC converters in existing designs?
A: Yes, substitute parts must match the mounting type and package dimensions specified, such as 6-DIP Module, to ensure fit and layout compatibility.

Q4: What are the considerations for selecting active substitute parts over obsolete ones?
A: Selection should be based on the part’s product status and compliance, using only parameters provided. Active status is preferred when direct replacement of obsolete inventory is necessary.
