MS3116F18-11P Equivalent & Substitute Parts

Part Overview

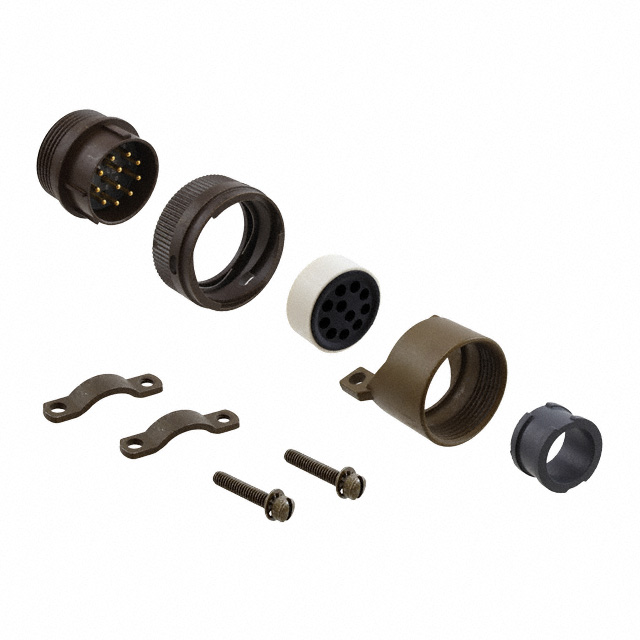

The MS3116F18-11P is an 11-position circular connector plug manufactured by ITT Cannon, LLC, featuring male pins with solder cup termination. This connector is designed for free-hanging, in-line applications requiring bayonet lock fastening and environmental resistance. The part operates across a temperature range of -55°C to 125°C with a current rating of 13A and voltage ratings of 1000VAC/1400VDC.

This connector remains in active product status with substantial inventory availability (20,099 pcs). Substitute parts are identified to address specific application requirements, including alternative termination methods, packaging configurations, or compliance considerations.

Substiute Parts

MS3116F18-11P

ITT Cannon, LLCIn Stock: 20143MS3116F18-11P Datasheet

Current PartRFQ

MSW06E18-11P-SR

Milspecwest, LLCIn Stock: 959MSW06E18-11P-SR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MS3116F18-11P is determined by the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: Plug, Male Pins
• Number of Positions: 11
• Shell Size - Insert: 18-11
• Fastening Type: Bayonet Lock
• Mounting Type: Free Hanging (In-Line)
• Operating Temperature Range: -55°C to 125°C
• Current Rating: 13A minimum
• Ingress Protection: Environment Resistant

Allowable Variations:

• Termination method (Solder Cup vs. Solder)
• Manufacturer and series designation
• Shell finish and contact finish specifications
• Packaging format (Bulk vs. Bag)
• Voltage rating (substitute must meet or exceed application requirements)

The identified substitute MSW06E18-11P-SR from Milspecwest, LLC satisfies all mandatory matching parameters while offering an alternative termination approach (Solder vs. Solder Cup) and different packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

MS3116F18-11P Selection Criteria:

• Primary choice for applications requiring solder cup termination with direct PCB or wire integration
• Supports full voltage specification of 1000VAC/1400VDC
• Bulk packaging suitable for high-volume production environments
• Active product status with extensive inventory (20,099 pcs)
• Established ITT Cannon KPT series compatibility

MSW06E18-11P-SR Selection Criteria:

• Alternative for applications utilizing solder termination methodology
• Voltage rating of 800V is suitable for applications not requiring the full 1000VAC/1400VDC specification
• Bag packaging appropriate for smaller quantity orders or kit assembly
• Military-grade designation (26482 Style Connectors series)
• Lower inventory availability (920 pcs) requires lead time consideration

Compliance Considerations: Both parts are RoHS non-compliant and REACH-affected. Selection should account for regulatory requirements of the end application. The MS3116F18-11P carries EAR99 ECCN classification; MSW06E18-11P-SR also carries EAR99 classification.
