MS23ASG30 Equivalent & Substitute Parts

Part Overview

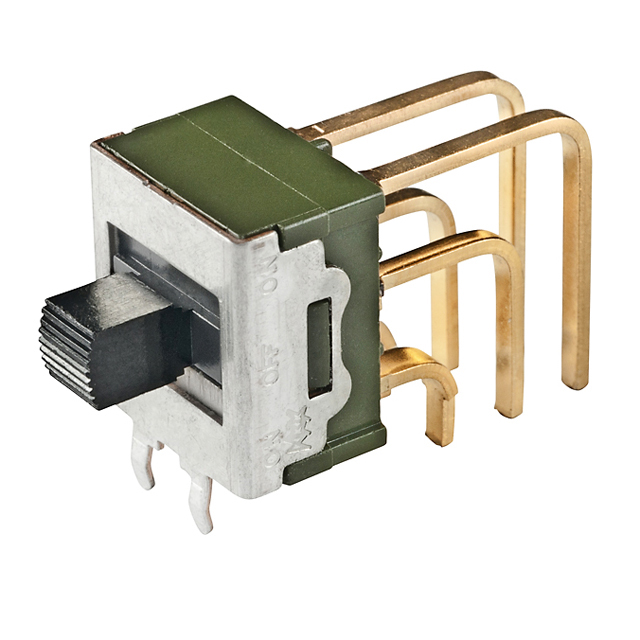

The MS23ASG30 is a slide switch manufactured by NKK Switches, configured as a DPDT (Double Pole Double Throw) switch with non-shorting contact timing. It is rated for 0.4VA at 28V AC/DC and features a through-hole, right-angle mounting configuration with PC pin termination. The switch is currently classified as obsolete, making identification of equivalent and substitute parts essential for ongoing system maintenance, repair, and component sourcing.

Substiute Parts

MS23ASG30

NKK SwitchesIn Stock: 954MS23ASG30 Datasheet

Current PartRFQ

MSN23ASG30

NKK SwitchesIn Stock: 1072MSN23ASG30 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MS23ASG30 is determined by strict equivalence across the following critical parameters:

• Circuit configuration (DPDT)
• Contact timing specification (Non-Shorting/BBM)
• Switch function (On-Off-On)
• Electrical ratings (0.4VA at 28V AC/DC)
• Mounting type (Through Hole, Right Angle)
• Termination style (PC Pin)
• Contact material and finish (Copper with Gold plating)
• Operating temperature range (-30°C to 85°C)
• Mechanical and electrical life specifications (100,000 and 50,000 cycles respectively)
• Compliance certifications (ROHS3, REACH Unaffected)

The MSN23ASG30, manufactured by NKK Switches, meets all these criteria and is classified as an active product, making it a direct functional equivalent.

Parameter Comparison

Engineering Selection Recommendations

The MSN23ASG30 is the direct substitute for the obsolete MS23ASG30. Both parts are manufactured by NKK Switches and share identical electrical, mechanical, and environmental specifications. The MSN23ASG30 carries active product status, ensuring ongoing availability and supply chain continuity. Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying regulatory requirements for current applications. Selection of the MSN23ASG30 eliminates obsolescence risk while maintaining full functional and physical compatibility with existing designs.

Frequently Asked Questions (FAQ)

Q: Can the MSN23ASG30 be used as a direct replacement for the MS23ASG30?

A: Yes. The MSN23ASG30 is electrically and mechanically equivalent to the MS23ASG30 across all specified parameters, including circuit configuration, voltage and current ratings, mounting type, and termination style.

Q: What is the primary reason for substitution?

A: The MS23ASG30 is classified as obsolete. The MSN23ASG30 is an active product from the same manufacturer, providing equivalent functionality with assured supply availability.

Q: Are there any differences in compliance or certifications?

A: No. Both parts maintain ROHS3 compliance, REACH unaffected status, and identical ECCN and HTSUS classifications.

Q: Will the MSN23ASG30 fit the same PCB footprint?

A: Yes. Both parts feature identical through-hole, right-angle mounting configurations with PC pin termination, ensuring mechanical and electrical compatibility with existing circuit board designs.

Q: Are the electrical performance characteristics identical?

A: Yes. Both parts are rated for 0.4VA at 28V AC/DC, feature DPDT non-shorting contact timing, and support On-Off-On switch function with identical mechanical and electrical life specifications.
