MS23 Slide Switch DP3T Equivalent & Substitute Parts

Part Overview

The MS23 is an active-status slide switch manufactured by APEM Inc., configured as a DP3T (Double Pole Triple Throw) through-hole component. This switch operates at 6V DC with a 300mA current rating and features a 2.00mm actuator length and travel distance. The MS23 is designed for On-On-On switching applications with silver contact finish and thermoplastic actuator material. Finding equivalent substitute parts may be necessary due to inventory constraints, lead time requirements, or specific application compatibility needs while maintaining core electrical and mechanical functionality.

Substiute Parts

MS23

APEM Inc.In Stock: 1246MS23 Datasheet

Current PartRFQ

CL-SB-23C-01

Nidec Components CorporationIn Stock: 1358CL-SB-23C-01 Datasheet

SimilarRFQ

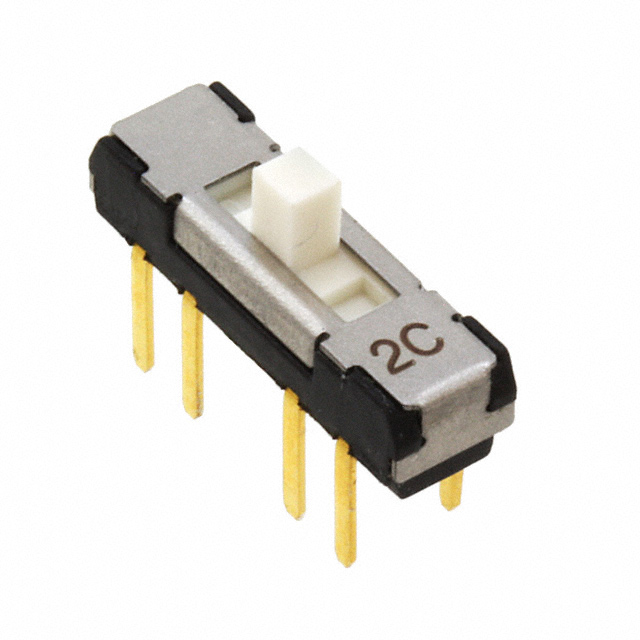

CL-SB-23C-02

Nidec Components CorporationIn Stock: 1021CL-SB-23C-02 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the MS23 are identified based on strict alignment with core electrical and mechanical parameters. The substitution criteria are:

• Circuit configuration must be DP3T
• Switch function must be On-On-On
• Actuator type must be Standard
• Actuator length must be 2.00mm
• Switch travel must be 2.00mm
• Mounting type must be Through Hole
• Termination style must be PC Pin
• Electrical life must be 10,000 Cycles
• Product status must be Active
• RoHS3 compliance required

The substitute parts CL-SB-23C-01 and CL-SB-23C-02 (both manufactured by Nidec Components Corporation) meet these core criteria. However, these substitutes operate at higher voltage (12V DC) and lower current (200mA) compared to the MS23 (6V DC, 300mA). These differences represent parameter variations within the allowed substitution scope and do not prevent functional equivalence in applications where the higher voltage and lower current ratings are acceptable.

Parameter Comparison

Engineering Selection Recommendations

Both CL-SB-23C-01 and CL-SB-23C-02 are active-status products with ROHS3 compliance and REACH unaffected status, matching the regulatory compliance profile of the MS23. Selection between these substitutes and the original MS23 should be based on application voltage and current requirements. The Nidec substitutes support higher voltage operation (12V versus 6V) but lower current capacity (200mA versus 300mA). Both substitute parts maintain identical mechanical form factor, actuator geometry, and electrical life specifications. The primary distinction between the two Nidec options is contact finish: CL-SB-23C-01 features silver finish (matching MS23), while CL-SB-23C-02 features gold finish for enhanced corrosion resistance in specific environmental conditions.

Frequently Asked Questions (FAQ)

Q: Can CL-SB-23C-01 or CL-SB-23C-02 be used as direct replacements for MS23?

A: These parts share identical circuit configuration (DP3T), switch function (On-On-On), actuator geometry (2.00mm length and travel), mounting type (Through Hole), and termination style (PC Pin). However, the voltage and current ratings differ. The substitutes operate at 12V DC with 200mA capacity, while the MS23 operates at 6V DC with 300mA capacity. Substitution is valid only when the application circuit can accommodate 12V operation and does not require current capacity exceeding 200mA.

Q: What is the difference between CL-SB-23C-01 and CL-SB-23C-02?

A: Both parts are electrically and mechanically identical. The sole difference is contact finish: CL-SB-23C-01 has silver finish, while CL-SB-23C-02 has gold finish. Gold finish provides superior corrosion resistance and is preferred in high-humidity or corrosive environments.

Q: Are all three parts packaged identically?

A: MS23 is packaged as "-" (not specified in provided data). CL-SB-23C-01 and CL-SB-23C-02 are both packaged in Bulk. Packaging differences do not affect electrical or mechanical compatibility.

Q: Do the substitute parts meet the same compliance standards as MS23?

A: Yes. All three parts are ROHS3 compliant, REACH unaffected, and carry MSL rating of 1 (Unlimited). Regulatory compliance is equivalent across all options.

Q: What is the operating temperature range difference?

A: MS23 operates from -10°C to 60°C. Both CL-SB-23C-01 and CL-SB-23C-02 operate from -40°C to 85°C, providing extended low-temperature and high-temperature capability.
