MS-156C Coaxial Switch Receptacle Equivalent & Substitute Parts

Part Overview

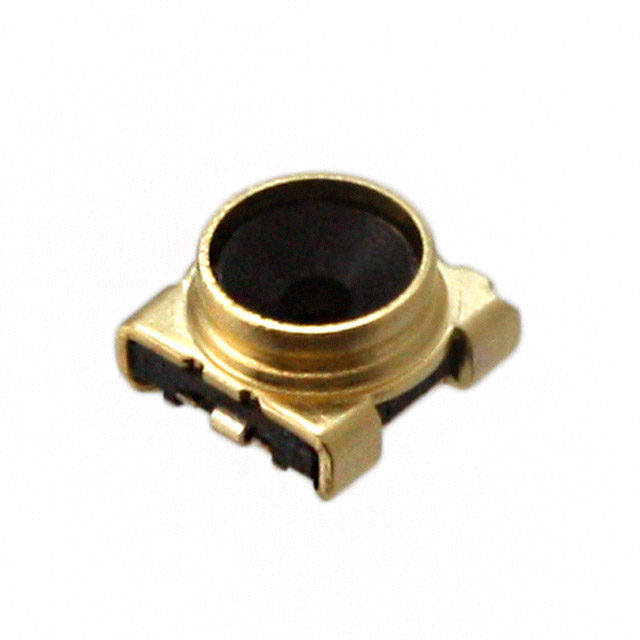

The MS-156C is an active coaxial switch receptacle manufactured by Hirose Electric Co Ltd, designed for 50 Ohm RF applications. This surface mount component features a 4mm plug diameter connector with internal switching capability and operates across a frequency range up to 11 GHz. The part is RoHS compliant and maintains an unlimited moisture sensitivity level (MSL 1), making it suitable for standard manufacturing environments. Equivalent and substitute parts are identified to provide design flexibility, accommodate supply chain variations, and support alternative packaging or performance requirements within the same functional category.

Substiute Parts

MS-156C

Hirose Electric Co LtdIn Stock: 6596MS-156C Datasheet

Current PartRFQ

MS-156HF

Hirose Electric Co LtdIn Stock: 14486MS-156HF Datasheet

MFR RecommendedRFQ

MS-156HF(01)

Hirose Electric Co LtdIn Stock: 3773MS-156HF(01) Datasheet

MFR RecommendedRFQ

MS-156HF(20)

Hirose Electric Co LtdIn Stock: 3163MS-156HF(20) Datasheet

MFR RecommendedRFQ

MS-156HF(22)

Hirose Electric Co LtdIn Stock: 1825MS-156HF(22) Datasheet

MFR RecommendedRFQ

MS-156C(20)

Hirose Electric Co LtdIn Stock: 6991MS-156C(20) Datasheet

Parametric EquivalentRFQ

MS-156C3

Hirose Electric Co LtdIn Stock: 39165MS-156C3 Datasheet

Parametric EquivalentRFQ

MS-156C3(20)

Hirose Electric Co LtdIn Stock: 9494MS-156C3(20) Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution relationships for the MS-156C are determined by strict adherence to the following electrical and mechanical parameters:

Primary Substitution Criteria:

• Impedance: 50 Ohms (mandatory)
• Connector Style: Coaxial Switch - 4mm Plug Dia (mandatory)
• Connector Type: Receptacle, Female Socket (mandatory)
• Contact Termination: Solder (mandatory)
• Mounting Type: Surface Mount (mandatory)
• Operating Temperature Range: -40°C ~ 85°C (mandatory)
• Mating Cycles: 100 (mandatory)

Secondary Considerations:

• Frequency - Max: Parts rated at 11 GHz or higher are direct equivalents; parts rated at 6 GHz are functional substitutes with reduced frequency capability
• Insertion Loss: Variations indicate different contact materials (Copper Alloy vs. Beryllium Copper) but do not affect substitutability
• Packaging Format: Tape & Reel (TR) and Strip packaging are interchangeable for component selection; packaging choice depends on assembly process requirements
• RoHS Status: All parts maintain RoHS compliance; ROHS3 designation indicates updated compliance documentation

The MS-156C is grouped with MS-156C(20), MS-156C3, and MS-156C3(20) as parametric equivalents sharing identical electrical specifications. The MS-156HF series (MS-156HF, MS-156HF(01), MS-156HF(20), MS-156HF(22)) represents manufacturer-recommended substitutes with equivalent mechanical and thermal characteristics but reduced maximum frequency rating (6 GHz vs. 11 GHz).

Parameter Comparison

Engineering Selection Recommendations

Parametric Equivalents (Direct Substitution): MS-156C(20), MS-156C3, and MS-156C3(20) are direct parametric equivalents to MS-156C. All maintain identical electrical specifications including 11 GHz maximum frequency and 0.4 dB insertion loss. Selection among these parts depends on packaging preference (all available in Tape & Reel format) and inventory availability. MS-156C3 and MS-156C3(20) carry ROHS3 compliance designation, providing updated regulatory documentation for applications requiring current RoHS certification standards.

Manufacturer-Recommended Substitutes (Functional Substitution): The MS-156HF series (MS-156HF, MS-156HF(01), MS-156HF(20), MS-156HF(22)) represents manufacturer-approved alternatives. These parts meet all mechanical, thermal, and impedance requirements but operate at a reduced maximum frequency of 6 GHz compared to the MS-156C's 11 GHz rating. The MS-156HF series uses Beryllium Copper center contacts, resulting in lower insertion loss (0.15 dB vs. 0.4 dB). Selection of MS-156HF variants is appropriate for applications operating below 6 GHz where the improved insertion loss performance provides system benefits. Packaging options include Tape & Reel (MS-156HF, MS-156HF(20), MS-156HF(22)) and Strip (MS-156HF(01)) formats.

Compliance Considerations: All listed parts maintain RoHS compliance. Applications requiring ROHS3 documentation should specify MS-156C3 or MS-156C3(20). All parts are MSL 1 (unlimited moisture sensitivity), eliminating bake-out requirements for standard manufacturing environments.

Frequently Asked Questions (FAQ)

Q: Can MS-156HF parts replace MS-156C in all applications? A: MS-156HF parts are functional substitutes for applications operating at frequencies up to 6 GHz. Applications requiring operation above 6 GHz must use MS-156C, MS-156C(20), MS-156C3, or MS-156C3(20). All other electrical and mechanical parameters are equivalent.

Q: What is the difference between MS-156C and MS-156C3? A: MS-156C and MS-156C3 are parametrically identical. The primary difference is RoHS compliance documentation: MS-156C carries RoHS Compliant status, while MS-156C3 carries ROHS3 Compliant status. Both meet current RoHS requirements; selection depends on documentation requirements for your application.

Q: Does packaging format affect component performance? A: No. Packaging format (Tape & Reel vs. Strip) does not affect electrical or mechanical performance. Selection depends on assembly process requirements. Tape & Reel packaging is standard for automated pick-and-place assembly; Strip packaging is used for manual or alternative assembly processes.

Q: Why does MS-156HF have lower insertion loss than MS-156C? A: Insertion loss differences result from center contact material composition. MS-156HF uses Beryllium Copper (0.15 dB insertion loss), while MS-156C uses Copper Alloy (0.4 dB insertion loss). Both materials meet the 50 Ohm impedance and mechanical requirements; material selection reflects design optimization for different frequency ranges.

Q: Are all parts in this list interchangeable for PCB layout? A: Yes. All parts share identical mechanical dimensions, mounting footprint, and solder termination specifications. PCB layout and assembly processes require no modification when substituting between listed parts.

Q: What does MSL 1 mean for manufacturing? A: MSL 1 (Moisture Sensitivity Level 1) indicates unlimited shelf life without moisture control requirements. These parts do not require bake-out procedures before soldering and can be stored in standard manufacturing environments without desiccant packaging.
