MS12ASG40 Equivalent & Substitute Parts

Part Overview

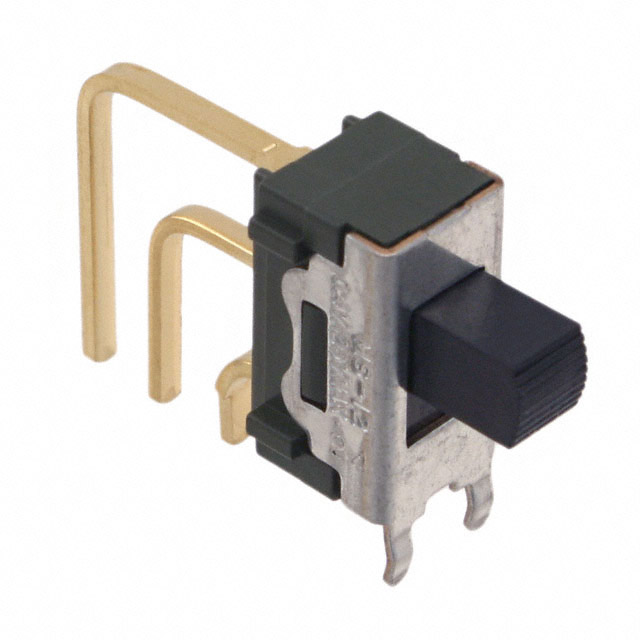

The MS12ASG40 is a slide switch manufactured by NKK Switches, configured as a single-pole double-throw (SPDT) switch with non-shorting contact timing. This through-hole, right-angle vertical mount component is rated for 0.4VA at 28V AC/DC operation. The product is currently obsolete, making identification of functionally equivalent alternatives essential for ongoing system support, maintenance, and new design implementations where legacy compatibility is required.

Substiute Parts

MS12ASG40

NKK SwitchesIn Stock: 1818MS12ASG40 Datasheet

Current PartRFQ

MSN12ASG40

NKK SwitchesIn Stock: 1282MSN12ASG40 Datasheet

MFR RecommendedRFQ

48ASSP1S1M7QAT

Grayhill Inc.In Stock: 76748ASSP1S1M7QAT Datasheet

SimilarRFQ

48ASSP1S1M7QBT

Grayhill Inc.In Stock: 103248ASSP1S1M7QBT Datasheet

SimilarRFQ

48ASSP1S1M7RAT

Grayhill Inc.In Stock: 107248ASSP1S1M7RAT Datasheet

SimilarRFQ

48ASSP1S1M7RBT

Grayhill Inc.In Stock: 88048ASSP1S1M7RBT Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MS12ASG40 is determined by the following critical parameters: circuit configuration (SPDT), switch function (On-On), voltage rating compatibility (minimum 28V DC), current rating capability (minimum 0.4VA), mounting type (through-hole vertical orientation), actuator length proximity (5.08mm to 5.10mm), operating temperature range overlap (-30°C to 85°C), and regulatory compliance (ROHS3 or equivalent).

The substitute parts identified fall into two functional categories:

Category 1 - Direct Functional Equivalent: MSN12ASG40 (NKK Switches) maintains identical electrical specifications and mounting configuration while offering active product status.

Category 2 - Higher-Rated Alternatives: The Grayhill Inc. 48A series parts (48ASSP1S1M7QAT, 48ASSP1S1M7QBT, 48ASSP1S1M7RAT, 48ASSP1S1M7RBT) provide SPDT on-on functionality with enhanced current ratings (5A) and voltage capabilities (125V AC), accommodating applications requiring greater electrical headroom while maintaining compatible mechanical form factors and operating temperature ranges.

Parameter Comparison

Engineering Selection Recommendations

MSN12ASG40 is the primary recommended substitute. As an active product from the original manufacturer NKK Switches, it provides continuity of design intent and supply chain reliability. ROHS3 compliance and identical series designation ensure regulatory alignment and functional compatibility.

48ASSP1S1M7QBT and 48ASSP1S1M7RBT (Grayhill Inc., through-hole mounting) are suitable alternatives for applications where enhanced electrical ratings provide design margin. Both maintain ROHS3 compliance and through-hole vertical mounting orientation matching the original MS12ASG40 configuration. The 48ASSP1S1M7QBT variant supports higher current (5A) and AC voltage (125V), while 48ASSP1S1M7RBT maintains the original 0.4VA current rating with 20V DC maximum.

48ASSP1S1M7QAT and 48ASSP1S1M7RAT (Grayhill Inc., panel mount) are not recommended for direct substitution due to mounting type incompatibility with through-hole PCB layouts, though they remain functionally equivalent for applications permitting panel-mount reconfiguration.

Frequently Asked Questions (FAQ)

Q: Can MSN12ASG40 be used as a direct replacement for MS12ASG40?

A: Yes. MSN12ASG40 maintains SPDT on-on circuit configuration, identical series designation, and active product status from NKK Switches. Electrical specifications and mounting orientation are compatible with the obsolete MS12ASG40.

Q: What are the key differences between the Grayhill 48A series substitutes?

A: The 48ASSP1S1M7QAT and 48ASSP1S1M7RAT variants are rated for 0.4VA at 20V DC maximum, matching the original MS12ASG40 current specification but with reduced voltage headroom. The 48ASSP1S1M7QBT and 48ASSP1S1M7RBT variants provide 5A at 125V AC capability, suitable for higher-power applications. Mounting type differs: QAT and RAT are panel mount; QBT and RBT are through-hole.

Q: Are there mechanical compatibility concerns with Grayhill substitutes?

A: Actuator length is nominally equivalent (5.08mm vs. 5.10mm original), and switch travel is comparable (2.16mm vs. 2.20mm). Through-hole variants (QBT, RBT) maintain identical mounting orientation. Panel-mount variants (QAT, RAT) require PCB layout modification and are not recommended for direct substitution without design review.

Q: Do all substitute parts meet RoHS compliance requirements?

A: MSN12ASG40, 48ASSP1S1M7QAT, 48ASSP1S1M7QBT, and 48ASSP1S1M7RBT are ROHS3 compliant. 48ASSP1S1M7RAT carries RoHS compliance designation without ROHS3 specification. All parts are REACH unaffected and carry EAR99 ECCN classification.

Q: What is the impact of reduced electrical life in Grayhill substitutes?

A: Grayhill 48A series parts specify 30,000 electrical life cycles compared to 50,000 cycles for MS12ASG40. This represents a 40% reduction in rated cycle life. Applications requiring extended operational life or high-cycle switching should account for this specification difference in maintenance planning.

Q: Can higher-rated Grayhill parts (5A, 125V) be used in 0.4VA, 28V applications?

A: Yes. Higher electrical ratings provide design margin and are backward-compatible with lower-power applications. The 48ASSP1S1M7QBT and 48ASSP1S1M7RBT variants support 28V DC operation and exceed the 0.4VA current requirement, making them suitable for applications requiring future design flexibility or enhanced reliability margins.
