MS12ASG13 Equivalent & Substitute Parts

Part Overview

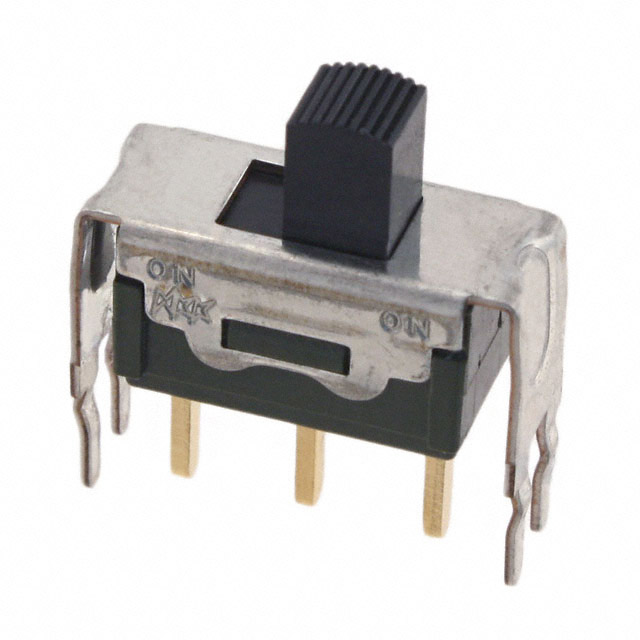

The MS12ASG13 is a slide switch manufactured by NKK Switches, configured as a Single Pole Double Throw (SPDT) with non-shorting contact timing. This through-hole mounted component is rated for 0.4VA at 28V AC/DC and features gold-plated copper contacts with epoxy sealed terminals. The product is currently obsolete, making identification of suitable substitute components essential for ongoing system maintenance and new design implementations where legacy compatibility is required.

Substiute Parts

MS12ASG13

NKK SwitchesIn Stock: 1588MS12ASG13 Datasheet

Current PartRFQ

MSN12ASG13

NKK SwitchesIn Stock: 862MSN12ASG13 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MS12ASG13 is determined by strict alignment with the following electrical and mechanical parameters:

• Circuit configuration must be SPDT
• Contact timing must be non-shorting (BBM)
• Current rating must support minimum 0.4VA
• Voltage rating must support minimum 28V AC and 28V DC
• Mounting type must be through-hole with PC pin termination
• Contact material and finish must be copper with gold plating
• Operating temperature range must encompass -30°C to 85°C
• Mechanical life must meet or exceed 100,000 cycles
• RoHS3 compliance is required

The MSN12ASG13, manufactured by NKK Switches, meets all specified electrical and mechanical parameters and is classified as an active product, making it a direct substitute for the obsolete MS12ASG13.

Parameter Comparison

Engineering Selection Recommendations

The MSN12ASG13 is the qualified substitute for the obsolete MS12ASG13. Both components are manufactured by NKK Switches and maintain identical electrical specifications, mechanical characteristics, and compliance certifications. The MSN12ASG13 carries active product status, ensuring ongoing availability and supply chain continuity. Both parts are ROHS3 compliant and carry EAR99 ECCN classification. Selection of the MSN12ASG13 eliminates obsolescence risk while maintaining full functional and physical compatibility with existing designs utilizing the MS12ASG13.
