MS12AFG01 Equivalent & Substitute Parts Reference

Part Overview

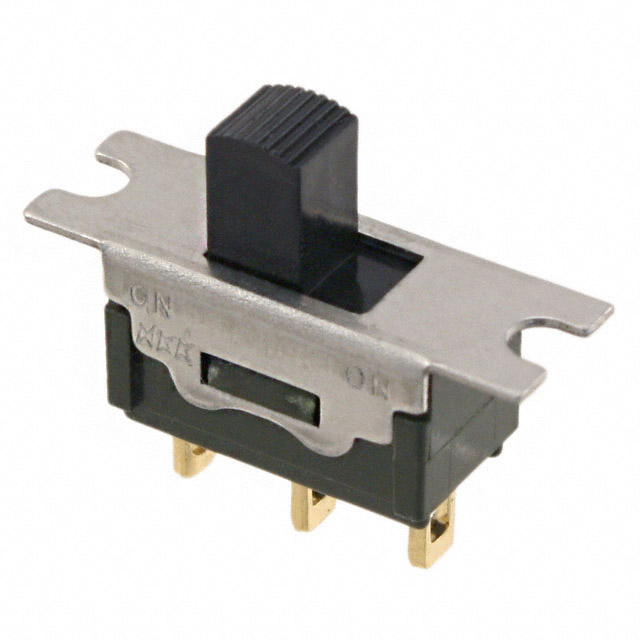

The MS12AFG01 is a slide switch manufactured by NKK Switches, configured as a single-pole double-throw (SPDT) panel mount component with non-shorting contact timing. This switch is rated for 0.4VA at 28V AC/DC and features gold-plated copper contacts with epoxy sealed terminals. The product is currently listed as obsolete, making identification of equivalent substitute parts essential for ongoing maintenance, repair, and legacy system support.

Substiute Parts

MS12AFG01

NKK SwitchesIn Stock: 1340MS12AFG01 Datasheet

Current PartRFQ

MSN12AFG01

NKK SwitchesIn Stock: 1178MSN12AFG01 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MS12AFG01 is determined by strict equivalence across the following critical parameters:

• Circuit Configuration: SPDT topology must be maintained
• Contact Timing: Non-shorting (BBM) contact behavior required
• Electrical Ratings: 0.4VA at 28V AC/DC minimum
• Mounting Interface: Panel mount configuration with solder lug termination
• Physical Dimensions: Actuator length (5.10mm) and switch travel (2.20mm) compatibility
• Contact Material & Finish: Copper with gold plating for reliability and corrosion resistance
• Environmental Compliance: ROHS3 compliance and REACH unaffected status

The substitute part MSN12AFG01 from NKK Switches meets all specified electrical, mechanical, and environmental parameters, establishing direct functional equivalence with the obsolete MS12AFG01.

Parameter Comparison

Engineering Selection Recommendations

The MSN12AFG01 is the designated manufacturer substitute for the obsolete MS12AFG01. Both components are manufactured by NKK Switches and share identical ECCN and HTSUS classifications, confirming regulatory and trade alignment. The substitute part maintains ROHS3 compliance, ensuring compatibility with modern procurement and environmental standards.

The transition from the obsolete MS12AFG01 to the active MSN12AFG01 provides access to current manufacturing stock and ongoing supply chain support. Selection of the MSN12AFG01 is appropriate for applications requiring direct replacement of the MS12AFG01 in legacy systems or new designs requiring equivalent SPDT slide switch functionality.
