MS112BPC Equivalent & Substitute Parts

Part Overview

The MS112BPC is a 6.35mm (0.250", 1/4") stereo headphone jack connector manufactured by Switchcraft Inc., designed for panel-mount, through-hole applications with solder termination. This connector features three conductors (TRS configuration) and is part of the Hi-D JAX® MS-11* series. The MS112BPC is currently in active production with 865 units available in new original stock. Finding equivalent substitute parts is necessary to ensure supply chain continuity, optimize procurement timelines, and maintain design flexibility across manufacturing batches.

Key Parameters

Parameter	Specification
Connector Type	Phone Jack (Stereo)
Gender	Female
Signal Configuration	Stereo (3 Conductor, TRS)
Mating Diameter	6.35mm (0.250", 1/4")
Number of Contacts	3 Conductors, 3 Contacts
Mounting Type	Panel Mount, Through Hole
Termination Method	Solder
Shielding	Unshielded
Operating Temperature Range	-20°C ~ 65°C
Voltage Rating	48VDC
Current Rating	250 mA
Contact Material Plating	Tin
Body Material	Brass
Panel Hole Size	0.375" (9.52mm)
Thread Size	3/8"-32
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

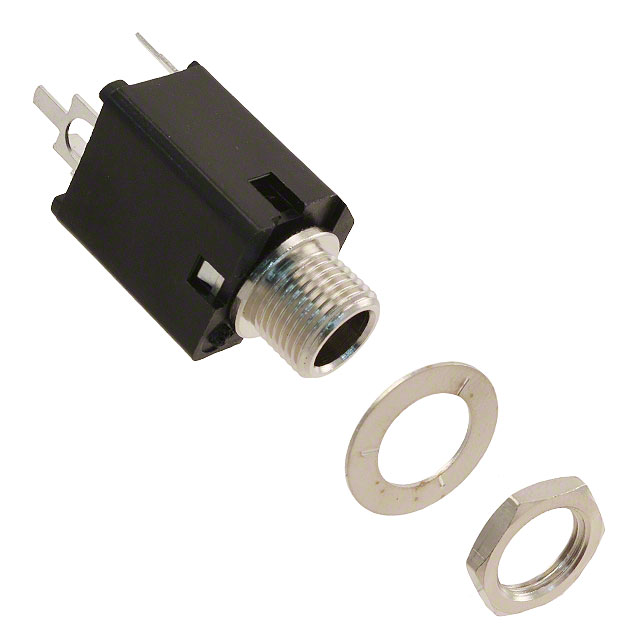

The M112BPCX qualifies as a direct substitute for the MS112BPC based on the following critical parameters that determine functional and mechanical compatibility:

Electrical Compatibility Parameters:

Identical connector type (Phone Jack, Stereo)
Identical signal configuration (3 Conductor, TRS)
Identical mating diameter (6.35mm / 0.250")
Identical number of contacts (3 Conductors, 3 Contacts)
Identical voltage rating (48VDC)
Identical current rating (250 mA)
Identical contact material plating (Tin)

Mechanical Compatibility Parameters:

Identical mounting type (Panel Mount, Through Hole)
Identical termination method (Solder)
Identical panel hole size (0.375" / 9.52mm)
Identical thread size (3/8"-32)
Identical body material (Brass)
Identical operating temperature range (-20°C ~ 65°C)

Compliance Parameters:

Identical RoHS status (ROHS3 Compliant)
Both parts are Active product status

The M112BPCX is packaged in Bulk format, whereas the MS112BPC packaging is unspecified. Both parts are manufactured by Switchcraft Inc. and belong to the Hi-D JAX® series family.

Parameter Comparison

Parameter	MS112BPC (Main Part)	M112BPCX (Substitute)
Manufacturer	Switchcraft Inc.	Switchcraft Inc.
Category	Barrel Connectors	Barrel Connectors
Connector Type	Phone Jack (Stereo)	Phone Jack (Stereo)
Gender	Female	Female
Signal Configuration	Stereo (3 Conductor, TRS)	Stereo (3 Conductor, TRS)
Mating Diameter	6.35mm (0.250", 1/4")	6.35mm (0.250", 1/4")
Number of Contacts	3 Conductors, 3 Contacts	3 Conductors, 3 Contacts
Mounting Type	Panel Mount, Through Hole	Panel Mount, Through Hole
Termination Method	Solder	Solder
Shielding	Unshielded	Unshielded
Operating Temperature	-20°C ~ 65°C	-20°C ~ 65°C
Voltage Rating	48VDC	48VDC
Current Rating	250 mA	250 mA
Contact Material Plating	Tin	Tin
Body Material	Brass	Brass
Panel Hole Size	0.375" (9.52mm)	0.375" (9.52mm)
Thread Size	3/8"-32	3/8"-32
RoHS Status	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active
Inventory Availability	865 Pcs New Original In Stock	1196 Pcs New Original In Stock

Engineering Selection Recommendations

Both the MS112BPC and M112BPCX are Active product status components manufactured by Switchcraft Inc. and maintain full ROHS3 compliance. The M112BPCX offers higher inventory availability (1196 units versus 865 units), making it a viable alternative for procurement scenarios requiring extended lead times or larger order quantities. Both parts meet identical electrical and mechanical specifications for 6.35mm stereo headphone jack applications with solder termination and panel-mount installation. Selection between these parts should be based on packaging requirements, inventory availability, and procurement timelines, as all functional and compliance parameters are equivalent.

Frequently Asked Questions (FAQ)

Q: Can the M112BPCX be used as a direct replacement for the MS112BPC in existing designs?

A: Yes. The M112BPCX is electrically and mechanically equivalent to the MS112BPC. Both connectors feature identical 6.35mm stereo (TRS) configurations, solder termination, panel-mount through-hole installation, and operate within the same temperature and voltage specifications. No design modifications are required.

Q: What are the key parameters that determine substitution compatibility?

A: Substitution compatibility is determined by: connector type (Phone Jack, Stereo), signal configuration (3 Conductor, TRS), mating diameter (6.35mm), number of contacts (3), mounting type (Panel Mount, Through Hole), termination method (Solder), panel hole size (0.375"), thread size (3/8"-32), operating temperature range (-20°C ~ 65°C), voltage rating (48VDC), and current rating (250 mA). Both parts match all these parameters.

Q: What is the difference between the MS112BPC and M112BPCX?

A: The primary difference is packaging format. The M112BPCX is supplied in Bulk packaging, while the MS112BPC packaging specification is not detailed. Additionally, the M112BPCX has higher inventory availability (1196 units versus 865 units). All electrical, mechanical, and compliance specifications are identical.

Q: Are both parts RoHS compliant?

A: Yes. Both the MS112BPC and M112BPCX are ROHS3 compliant and suitable for applications requiring environmental compliance standards.

Q: What is the current rating for these connectors?

A: Both connectors are rated for 250 mA maximum current at 48VDC, suitable for standard audio and low-power signal applications.
