MRA206-BA Equivalent & Substitute Parts

Part Overview

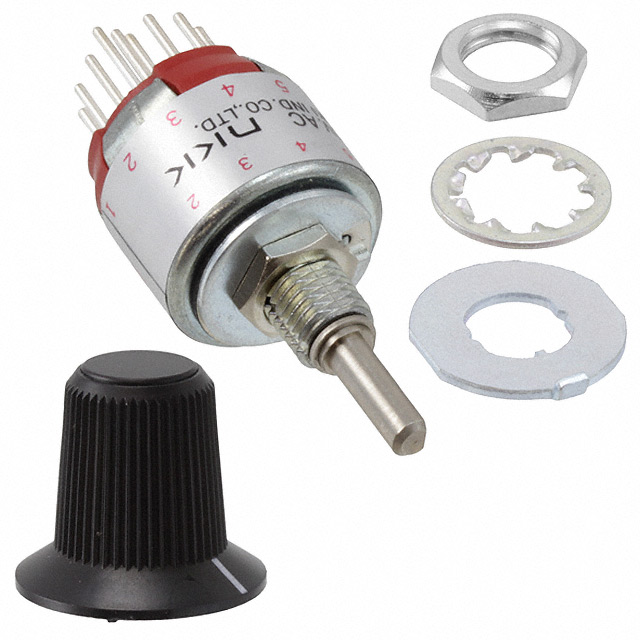

The MRA206-BA is a rotary switch manufactured by NKK Switches, designed for panel-mount applications requiring multi-position selection. This component features a 2-6 position adjustable configuration with dual-pole, six-throw (DP6T) switching capability, rated for 250mA AC at 125VAC. The product is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new design implementations where equivalent functionality is required.

Substiute Parts

MRA206-BA

NKK SwitchesIn Stock: 862MRA206-BA Datasheet

Current PartRFQ

MRAN206-BA

NKK SwitchesIn Stock: 1193MRAN206-BA Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MRA206-BA is determined by equivalence across the following critical parameters:

• Electrical Performance: Current rating (250mA AC), voltage rating (125VAC), and circuit configuration (DP6T)
• Mechanical Compatibility: Panel mount through-hole termination, 6.35mm circular cutout, knob actuator type, and 30° angle of throw
• Position Range: Adjustable 2-6 position capability with non-shorting contact timing
• Contact Specifications: Copper material with silver finish
• Regulatory Compliance: ROHS3 compliance and equivalent environmental classifications

The MRAN206-BA is identified as a manufacturer-recommended substitute based on functional equivalence within these parameters.

Parameter Comparison

Engineering Selection Recommendations

The MRAN206-BA is designated as the manufacturer-recommended substitute for the obsolete MRA206-BA. Both components are manufactured by NKK Switches and maintain ROHS3 compliance. The MRAN206-BA carries active product status, ensuring ongoing availability and manufacturing support compared to the obsolete MRA206-BA.

Selection of the MRAN206-BA is appropriate for applications requiring direct replacement of the MRA206-BA where the specified electrical and mechanical parameters are required. The active product status of the MRAN206-BA provides supply chain continuity for new designs and maintenance applications.

Frequently Asked Questions (FAQ)

Q: What makes the MRAN206-BA a suitable substitute for the MRA206-BA?

A: The MRAN206-BA is identified as the manufacturer-recommended substitute by NKK Switches. Both components share the same manufacturer and maintain equivalent ROHS3 compliance status. The MRAN206-BA provides functional equivalence for the obsolete MRA206-BA.

Q: Why is the MRA206-BA classified as obsolete?

A: The MRA206-BA has reached end-of-life status in NKK Switches' product portfolio. The MRAN206-BA represents the active replacement offering from the manufacturer.

Q: Are there packaging differences between the MRA206-BA and MRAN206-BA?

A: Both components are supplied in bulk packaging. Specific packaging configuration details for the MRAN206-BA should be confirmed with the manufacturer or authorized distributor.

Q: What compliance certifications apply to both parts?

A: Both the MRA206-BA and MRAN206-BA are ROHS3 compliant. The MRA206-BA carries REACH Unaffected status and EAR99 ECCN classification.

Q: Can the MRAN206-BA be used in existing designs using the MRA206-BA?

A: The MRAN206-BA is the manufacturer-recommended substitute. Compatibility should be confirmed based on the specific electrical and mechanical requirements of the application, particularly regarding current rating, voltage rating, and panel cutout dimensions.
