MPX5010GS Equivalent & Substitute Parts

Part Overview

The MPX5010GS is a vented gauge pressure sensor manufactured by NXP USA Inc., designed for board mount applications with a 1.45PSI (10kPa) operating pressure range. This sensor outputs analog voltage signals (0.2V to 4.7V) and features temperature compensation for stable performance across -40°C to 125°C operating conditions.

The MPX5010GS is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or maintenance requirements for systems utilizing this sensor.

Substiute Parts

MPX5010GS

NXP USA Inc.In Stock: 1112MPX5010GS Datasheet

Current PartRFQ

MPX5010DP

NXP USA Inc.In Stock: 28437MPX5010DP Datasheet

MFR RecommendedRFQ

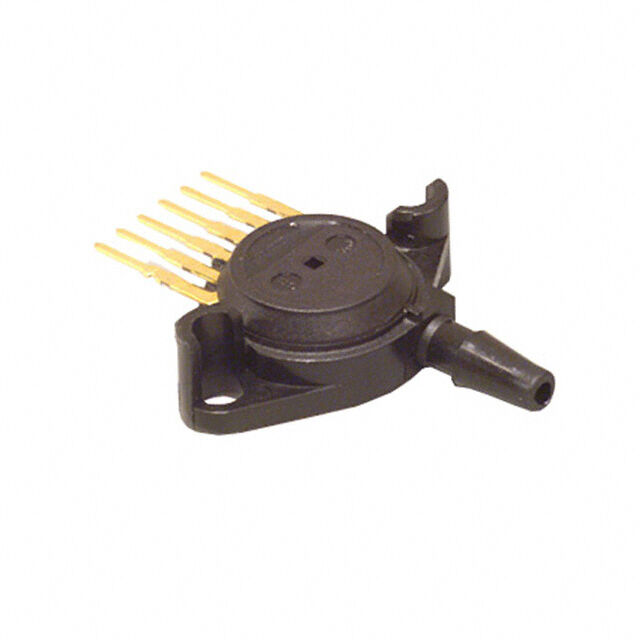

MPX5010GP

NXP SemiconductorsIn Stock: 1396MPX5010GP Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the MPX5010GS are identified based on the following critical parameters that determine functional compatibility:

Primary Substitution Criteria:

• Series alignment (MPX5010 family)
• Identical operating pressure rating (1.45PSI / 10kPa)
• Matching output type and range (Analog Voltage, 0.2V to 4.7V)
• Identical supply voltage specification (4.75V to 5.25V)
• Matching package and termination (6-SIP Module, PC Pin)
• Compatible port configuration (Male - 0.19" barbed tube)
• Equivalent accuracy specification (±5%)
• Overlapping operating temperature range (-40°C to 125°C)

Substitute Categories:

Parametric Equivalent: MPX5010GP matches all electrical and mechanical parameters of the MPX5010GS. Both are vented gauge pressure sensors with identical pressure type, output characteristics, and physical form factor. The MPX5010GP is currently in active production status.

Functional Substitute with Parameter Variation: MPX5010DP operates within the same electrical envelope but differs in pressure type (differential vs. vented gauge) and port configuration (dual ports vs. single port). This part is suitable only when differential pressure measurement is acceptable in the application.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection: MPX5010GP

The MPX5010GP is the recommended direct replacement for the MPX5010GS. Both sensors are vented gauge pressure devices with identical electrical specifications, mechanical form factor, and operating parameters. The MPX5010GP maintains active production status, ensuring long-term supply availability and design continuity. Both parts comply with ROHS3 and REACH requirements. No circuit modifications or recalibration are required for this substitution.

Alternative Selection: MPX5010DP

The MPX5010DP is suitable only when the application can accommodate differential pressure measurement instead of vented gauge measurement. This part shares identical electrical output characteristics and physical packaging but requires dual pressure ports for operation. The MPX5010DP is currently in active production. Selection of this part requires confirmation that the application design supports differential pressure sensing methodology.

Frequently Asked Questions (FAQ)

Q: Can MPX5010GP be used as a direct drop-in replacement for MPX5010GS?

A: Yes. The MPX5010GP is a parametric equivalent with identical pressure type (vented gauge), operating pressure (1.45PSI), output characteristics (0.2V to 4.7V), supply voltage (4.75V to 5.25V), package (6-SIP Module), and termination (PC Pin). No circuit modifications are required.

Q: What is the key difference between MPX5010GS and MPX5010DP?

A: The primary difference is pressure type. The MPX5010GS measures vented gauge pressure (referenced to atmospheric pressure through a single port), while the MPX5010DP measures differential pressure (the difference between two independent pressure inputs via dual ports). Both share identical electrical output ranges and supply voltage specifications.

Q: Is MPX5010DP compatible with existing MPX5010GS circuit designs?

A: The MPX5010DP is electrically compatible (same output range, supply voltage, and accuracy) but requires dual pressure ports instead of a single vented port. Mechanical integration and pressure source configuration must be evaluated for the specific application.

Q: Why is the MPX5010GS listed as obsolete?

A: The MPX5010GS has been discontinued by the manufacturer. The MPX5010GP serves as the active production equivalent within the MPX5010 series.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. The MPX5010GS, MPX5010GP, and MPX5010DP are all ROHS3 compliant and REACH unaffected.

Q: What is the packaging difference between substitute parts?

A: All three parts use identical 6-SIP Module packaging with PC Pin termination and through-hole mounting. Packaging format (Tray) does not affect electrical or mechanical compatibility.
