MPX4400AP Equivalent & Substitute Parts

Part Overview

The MPX4400AP is an absolute pressure sensor manufactured by NXP USA Inc., designed for board mount applications with a measurement range of 2.9PSI to 58.02PSI (20kPa to 400kPa). The device outputs analog voltage and operates across -40°C to 125°C. This part is currently obsolete, making identification of active equivalent components essential for ongoing production and maintenance applications.

Substiute Parts

MPX4400AP

NXP USA Inc.In Stock: 1180MPX4400AP Datasheet

Current PartRFQ

MPXH6400AC6T1

NXP USA Inc.In Stock: 2775MPXH6400AC6T1 Datasheet

MFR RecommendedRFQ

MPXH6400AC6T1

NXP USA Inc.In Stock: 2775MPXH6400AC6T1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete MPX4400AP is based on strict alignment of the following critical parameters:

• Pressure Type: Absolute pressure measurement capability
• Operating Pressure Range: 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) minimum coverage
• Output Type: Analog voltage output
• Accuracy: ±1.5%
• Supply Voltage Compatibility: Overlapping operational voltage range
• Operating Temperature Range: -40°C ~ 125°C
• Compliance: ROHS3 and REACH compliance maintained

The MPXH6400AC6T1 meets all these criteria as an active, manufacturer-recommended substitute from the same NXP product family.

Parameter Comparison

Engineering Selection Recommendations

The MPXH6400AC6T1 is the manufacturer-recommended substitute for the obsolete MPX4400AP. Both components maintain identical pressure measurement ranges, accuracy specifications, and operating temperature limits. The substitute part is currently in active production status, ensuring long-term availability and supply chain continuity.

Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying regulatory requirements for equivalent component selection. The MPXH6400AC6T1 features a higher maximum pressure rating (232.06PSI versus 58.02PSI), providing additional safety margin in applications without introducing incompatibility.

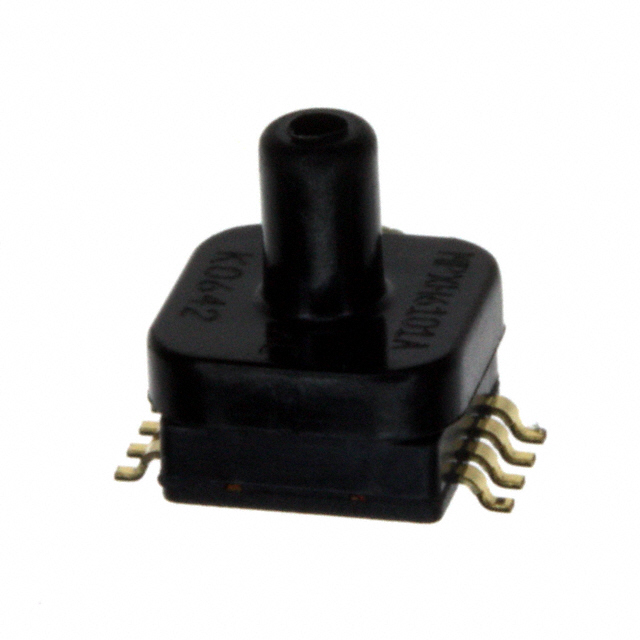

The primary design difference is the package type: the substitute transitions from a through-hole configuration to surface mount (8-SOIC), requiring PCB layout modification. The substitute includes temperature compensation and barbless port connection, representing functional enhancements over the original design.

Frequently Asked Questions (FAQ)

Q: Can MPXH6400AC6T1 directly replace MPX4400AP without circuit modification?

A: The electrical specifications are compatible within the defined operating ranges. However, the package transition from through-hole to surface mount (8-SOIC) requires PCB redesign. The supply voltage range overlap (4.64V ~ 5.36V) ensures operational compatibility.

Q: What is the significance of the higher maximum pressure rating on the substitute?

A: The MPXH6400AC6T1 maximum pressure rating of 232.06PSI (1600kPa) exceeds the operating range of 58.02PSI (400kPa). This provides overpressure protection without affecting measurement accuracy within the specified operating window.

Q: Are there differences in output voltage characteristics?

A: The MPXH6400AC6T1 specifies output voltage as 0.2V ~ 4.8V. The original MPX4400AP does not provide explicit output voltage specification. Both maintain ±1.5% accuracy across their respective operating pressure ranges.

Q: Does the port connection style affect substitution feasibility?

A: The MPXH6400AC6T1 features a male barbless tube port (0.13" / 3.3mm), whereas the MPX4400AP port configuration is not specified. Port compatibility must be evaluated against the specific application's fluid connection requirements.

Q: Are compliance certifications maintained in the substitute?

A: Yes. Both parts maintain ROHS3 compliance, REACH unaffected status, and identical moisture sensitivity levels (MSL 1 - Unlimited), satisfying equivalent regulatory requirements.
