MPX2010GS Equivalent & Substitute Parts
Part Overview
The MPX2010GS is a vented gauge pressure sensor manufactured by NXP USA Inc., designed for board mount applications requiring low-pressure measurement up to 1.45 PSI (10 kPa). This sensor outputs a Wheatstone Bridge signal in the range of 0 mV to 25 mV at 10V supply, with temperature compensation across the operating range of -40°C to 125°C.
The MPX2010GS carries an obsolete product status. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain reliability, and support ongoing production or maintenance requirements for systems utilizing this sensor.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Series | MPX2010 |
| Pressure Type | Vented Gauge |
| Operating Pressure | 1.45 PSI (10 kPa) |
| Output Type | Wheatstone Bridge |
| Output Range | 0 mV – 25 mV (10V) |
| Accuracy | ±1% |
| Supply Voltage | 10V – 16V |
| Port Size | Male – 0.19" (4.93 mm) Tube |
| Port Style | Barbed |
| Package / Case | 4-SIP Module |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C – 125°C |
| Maximum Pressure | 10.88 PSI (75 kPa) |
| RoHS Status | ROHS3 Compliant |
Substitute Part Grouping Explanation
Substitution of the MPX2010GS is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications for pressure measurement range, output signal characteristics, supply voltage requirements, physical port configuration, and thermal operating envelope.

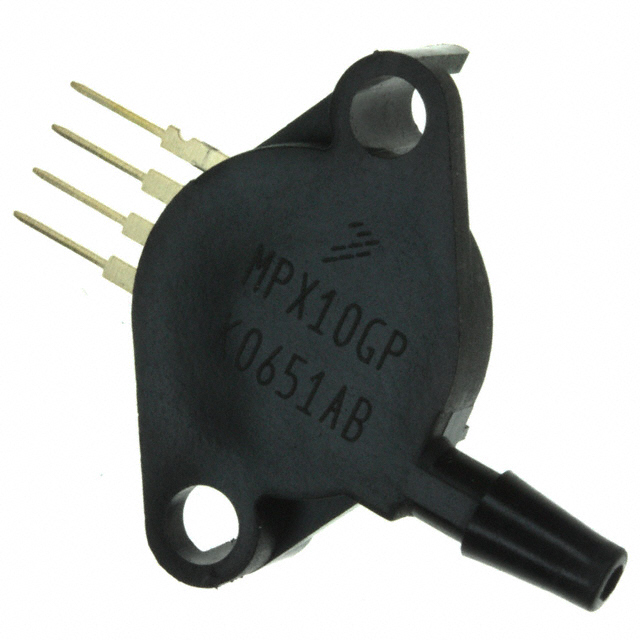

The MPX2010GP qualifies as a parametric equivalent based on the following criteria:
- Identical operating pressure: 1.45 PSI (10 kPa)
- Identical output type and range: Wheatstone Bridge, 0 mV – 25 mV (10V)
- Identical accuracy: ±1%
- Identical supply voltage: 10V – 16V
- Identical port size and style: Male – 0.19" (4.93 mm) Tube, Barbed
- Identical package: 4-SIP Module
- Identical mounting type: Through Hole
- Identical operating temperature range: -40°C – 125°C
- Identical maximum pressure rating: 10.88 PSI (75 kPa)
Parameter Comparison
| Parameter | MPX2010GS | MPX2010GP |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Series | MPX2010 | MPX2010 |
| Product Status | Obsolete | Active |
| Pressure Type | Vented Gauge | Vented Gauge |
| Operating Pressure | 1.45 PSI (10 kPa) | 1.45 PSI (10 kPa) |
| Output Type | Wheatstone Bridge | Wheatstone Bridge |
| Output Range | 0 mV – 25 mV (10V) | 0 mV – 25 mV (10V) |
| Accuracy | ±1% | ±1% |
| Supply Voltage | 10V – 16V | 10V – 16V |
| Port Size | Male – 0.19" (4.93 mm) Tube | Male – 0.19" (4.93 mm) Tube |
| Port Style | Barbed | Barbed |
| Package / Case | 4-SIP Module | 4-SIP Module |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature | -40°C – 125°C | -40°C – 125°C |
| Maximum Pressure | 10.88 PSI (75 kPa) | 10.88 PSI (75 kPa) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant |
| Packaging | Not specified | Tray |
Engineering Selection Recommendations
The MPX2010GP is the direct parametric equivalent for the obsolete MPX2010GS. Both parts are manufactured by NXP USA Inc. and share identical electrical and mechanical specifications across all critical parameters.
The primary distinction between these parts is product status: the MPX2010GS is obsolete, while the MPX2010GP maintains active production status. This status difference ensures ongoing availability and supply chain support for the MPX2010GP.
Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying regulatory requirements for current applications. The MPX2010GP is supplied in Tray packaging, which is standard for active production components.
For new designs or ongoing production requiring this pressure sensor specification, the MPX2010GP is the appropriate selection. For legacy systems currently using the MPX2010GS, direct substitution with the MPX2010GP is electrically and mechanically compatible without circuit modification.
Frequently Asked Questions (FAQ)
Q: Can the MPX2010GP be used as a direct replacement for the MPX2010GS?
A: Yes. The MPX2010GP is a parametric equivalent with identical electrical output, pressure range, supply voltage, port configuration, and thermal operating specifications. No circuit modifications are required for substitution.
Q: What is the difference between the MPX2010GS and MPX2010GP?
A: The primary difference is product status. The MPX2010GS is obsolete, while the MPX2010GP is in active production. All electrical and mechanical parameters are identical. The MPX2010GP is supplied in Tray packaging.
Q: Are there any compatibility concerns with the 4-SIP Module package?
A: No. Both parts use the identical 4-SIP Module package with through-hole mounting and PC pin termination. PCB footprints and mounting requirements are identical.
Q: Does the MPX2010GP support the same operating temperature range?
A: Yes. Both parts operate across the identical temperature range of -40°C to 125°C with temperature compensation.
Q: Are both parts RoHS compliant?
A: Yes. Both the MPX2010GS and MPX2010GP are ROHS3 compliant and REACH unaffected.
Q: What is the pressure measurement range for these sensors?
A: Both sensors measure vented gauge pressure up to 1.45 PSI (10 kPa) with a maximum pressure rating of 10.88 PSI (75 kPa).
