Equivalent & Substitute Parts for MPDTH12050WAS

Part Overview

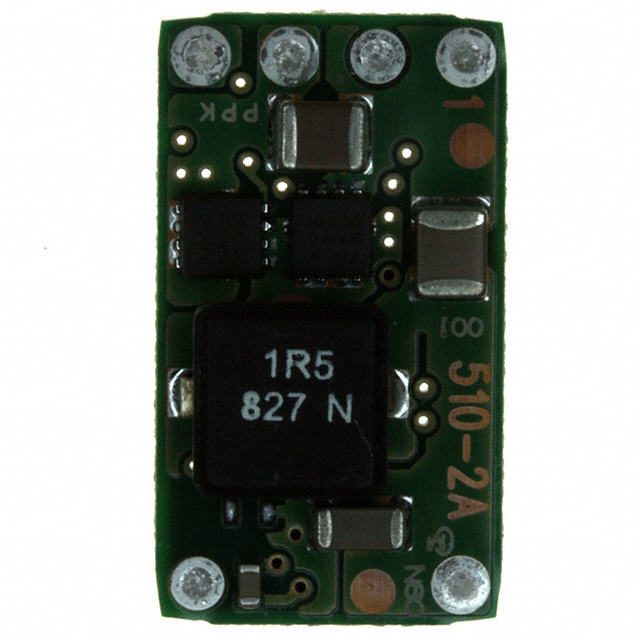

The Murata Power Solutions Inc. MPDTH12050WAS is a non-isolated Point-of-Load (PoL) DC-DC converter module delivering a single output voltage between 1.2V and 5.5V, with an input voltage range of 10.8V to 13.2V and a maximum output current of 6A. This surface mount device is designed for commercial information technology equipment (ITE) applications and includes features such as remote On/Off, overcurrent protection (OCP), short-circuit protection (SCP), and undervoltage lockout (UVLO). With a product status of Obsolete, identifying fully compatible substitute models is necessary to ensure supply continuity and design compatibility.

Substiute Parts

MPDTH12050WAS

Murata Power Solutions Inc.In Stock: 735MPDTH12050WAS Datasheet

Current PartRFQ

PTH12050WAZ

Texas InstrumentsIn Stock: 1393PTH12050WAZ Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the MPDTH12050WAS is based exclusively on matching the following key parameters: output configuration (Non-Isolated PoL Module, 1 output), input voltage range (10.8V to 13.2V), output voltage range (1.2V to 5.5V), maximum output current (6A), power capacity (33W), efficiency (93%), package/case type (6-SMD Module, Surface Mount), size/dimensions, feature set (Remote On/Off, OCP, SCP, UVLO), operating temperature range (-40°C to 85°C), and application category (ITE, Commercial). All substitute parts listed meet or match these essential specifications.

Parameter Comparison

Engineering Selection Recommendations

The MPDTH12050WAS is classified as Obsolete. The recommended substitute PTH12050WAZ is listed as Active and maintains equivalent electrical, thermal, and mechanical specifications using a 6-SMD surface mount module format. Both parts are REACH unaffected and have related compliance information provided. Selection is justified strictly by direct equivalence in key operational parameters and compliance status.

Frequently Asked Questions (FAQ)

Q1: What parameters must match for a proper substitute in the non-isolated PoL module DC-DC converter category?
A1: Substitutes must match input voltage range, output voltage range, output current, power rating, efficiency, package/case type, mounting method, feature set, operating temperature range, and dimensional compatibility.

Q2: Is the PTH12050WAZ pin-to-pin compatible with MPDTH12050WAS?
A2: Both parts share the 6-SMD Module surface mount package type and equivalent dimensions, indicating direct compatibility in terms of mechanical footprint and mounting.

Q3: Does the substitute provide all original features?
A3: Both modules include Remote On/Off and OCP, with the main part also specifying SCP and UVLO. The substitute also lists UVLO. Only parameters explicitly listed are compared.

Q4: Are there compliance or obsolescence concerns when selecting the substitute?
A4: MPDTH12050WAS is obsolete. The substitute PTH12050WAZ is active and compliant with ROHS3 and REACH unaffected as per provided data.

Q5: What package considerations are important in this substitution?
A5: Both modules are surface mount, 6-SMD Module format, with nearly identical size and height, ensuring compatibility for PCB design constraints within the provided dimensions.
