MPDTH05060WAS Equivalent & Substitute Parts Reference

Part Overview

The Murata Power Solutions MPDTH05060WAS is a Non-Isolated PoL Module DC-DC Converter specified for ITE (Commercial) applications, supporting 1 output with a voltage range of 0.8–3.6V and a maximum output current of 10A. It features remote On/Off control, OCP, SCP, and UVLO. This model is classified as obsolete, which can necessitate the identification of direct equivalent or substitute parts for ongoing production and field maintenance.

Substiute Parts

MPDTH05060WAS

Murata Power Solutions Inc.In Stock: 926MPDTH05060WAS Datasheet

Current PartRFQ

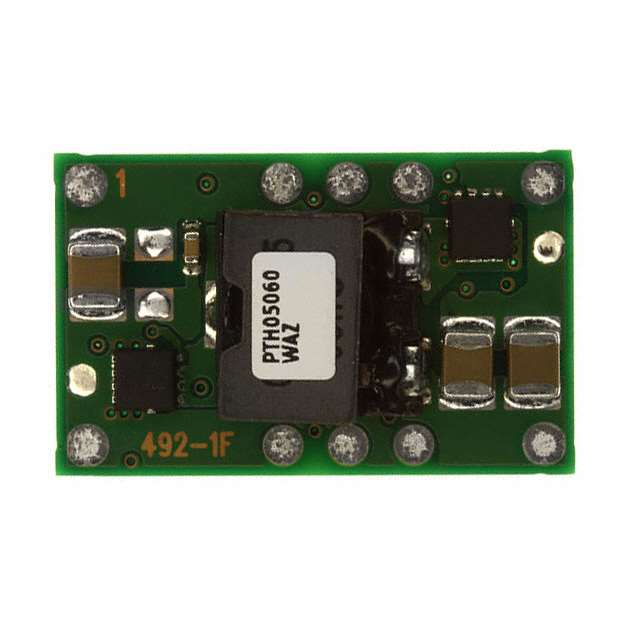

PTH05060WAZ

Texas InstrumentsIn Stock: 1486PTH05060WAZ Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Murata Power Solutions MPDTH05060WAS are grouped strictly based on identical electrical and mechanical parameters. Key parameters for substitution include: output voltage range (0.8–3.6V), maximum output current (10A), input voltage range (4.5–5.5V), power rating (36W), operating temperature (-40°C ~ 85°C), module type, package/housing, feature set (Remote On/Off, OCP, SCP/OTP, UVLO), mounting type, efficiency (94%), applicable standards (ITE Commercial), size/dimension, moisture sensitivity level, REACH status, and ECCN. Only parts explicitly provided by the manufacturer are considered valid substitutes.

Parameter Comparison

Engineering Selection Recommendations

MPDTH05060WAS is listed as obsolete. The Texas Instruments PTH05060WAZ is identified as an active substitute and meets all specified electrical, mechanical, and regulatory parameters. When substituting, confirm matching compliance attributes including RoHS, REACH status, ECCN, and HTSUS code. Note the difference in Moisture Sensitivity Level (MPDTH05060WAS: 2, PTH05060WAZ: 3) for inventory and handling considerations.

Frequently Asked Questions (FAQ)

Q: What criteria are used for substitution of the MPDTH05060WAS DC-DC converter?
A: Substitution is based strictly on matching output voltage range, output current, input voltage, power rating, operating temperature range, module type, package type, and feature set, as listed in the provided parameters.

Q: Are PTH05060WAZ and MPDTH05060WAS pin-for-pin, drop-in equivalents?
A: Both parts are specified in the same package (10-SMD Module) and share key electrical and mechanical parameters necessary for equivalence.

Q: What are the main differences between MPDTH05060WAS and PTH05060WAZ?
A: The main difference is Moisture Sensitivity Level (MSL), with MPDTH05060WAS at MSL 2 (1 Year) and PTH05060WAZ at MSL 3 (168 Hours). Feature sets are otherwise equivalent, except for OCP/SCP/OTP as per the provided data.

Q: Does regulatory compliance differ between these two models?
A: Both are REACH unaffected, and share identical ECCN and HTSUS codes in the provided data.

Q: Are there any package size or mounting concerns?
A: Both models have identical package dimensions and mounting types based on the supplied parameters.
