MPDTH05050WAH Equivalent & Substitute Parts Reference

Part Overview

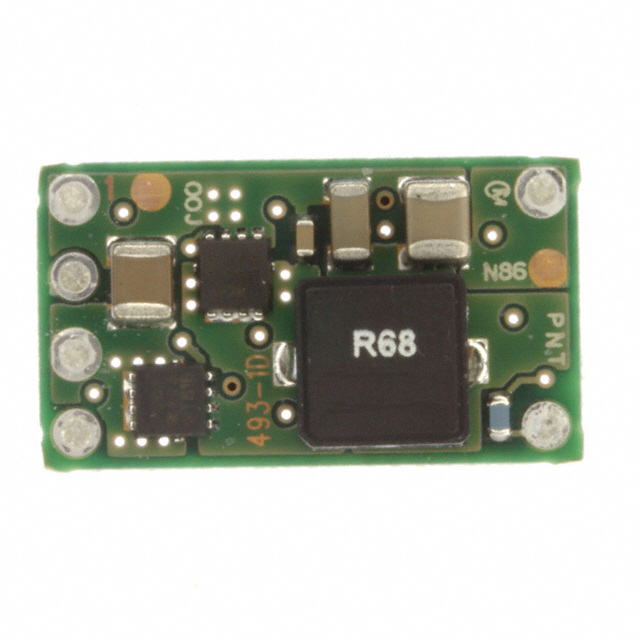

The MPDTH05050WAH from Murata Power Solutions Inc. is a non-isolated point-of-load (PoL) module DC-DC converter designed for ITE (Commercial) applications. It provides a single output voltage adjustable between 0.8V and 3.6V with a maximum output current of 6A, supporting input voltages from 4.5V to 5.5V. The package is a through-hole 6-DIP module. This product is currently classified as obsolete, necessitating the identification of alternative models to ensure continuity of supply and compatible functionality in existing designs.

Key Parameters

Parameter	Value
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.8 ~ 3.6V
Current - Output (Max)	6A
Power (Watts)	21 W
Operating Temperature	-40°C ~ 85°C
Efficiency	95%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	0.87" L x 0.49" W x 0.33" H
Applications	ITE (Commercial)
Product Status	Obsolete
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580

Substitute Part Grouping Explanation

Substitute part selection for the MPDTH05050WAH is determined by the following strict parameters:

Module Type: Non-Isolated PoL Module
Number of Outputs: 1
Input Voltage Range: 4.5V to 5.5V
Output Voltage Range: 0.8V to 3.6V
Output Current Capacity: 6A
Efficiency: 95%
Mounting Type: Through Hole
Package: 6-DIP Module
Operating Temperature Range: -40°C to 85°C
Application: ITE (Commercial)

Only parts matching these criteria are considered electrically and mechanically substitutable within this product category.

Parameter Comparison

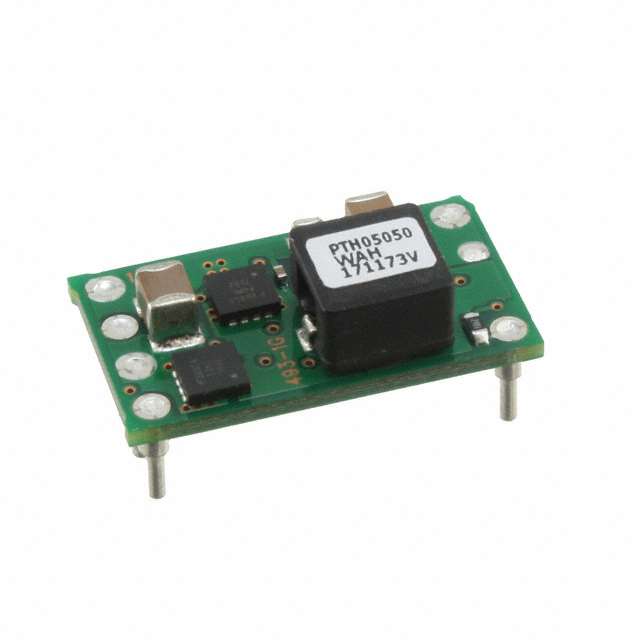

Parameter	Main Part: MPDTH05050WAH (Murata Power Solutions Inc.)	Substitute: PTH05050WAH (Texas Instruments)
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	4.5V	4.5V
Voltage - Input (Max)	5.5V	5.5V
Voltage - Output 1	0.8 ~ 3.6V	0.8 ~ 3.6V
Current - Output (Max)	6A	6A
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	95%	95%
Mounting Type	Through Hole	Through Hole
Package / Case	6-DIP Module	6-DIP Module
Size / Dimension	0.87" L x 0.49" W x 0.33" H	0.87" L x 0.50" W x 0.34" H
Applications	ITE (Commercial)	ITE (Commercial)
Product Status	Obsolete	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)	Not Applicable
REACH Status	REACH Unaffected	REACH Unaffected
ECCN	EAR99	EAR99
HTSUS	8504.40.9580	8504.40.9580

Engineering Selection Recommendations

The MPDTH05050WAH is obsolete, while the substitute PTH05050WAH is active and available in inventory. The substitute is compliant with ROHS3 and REACH, and has the same electrical and mechanical parameters, supporting usage in the same application environments under regulatory codes ECCN EAR99 and HTSUS 8504.40.9580. Both parts are suitable for ITE (Commercial) applications as per the provided data.

Frequently Asked Questions (FAQ)

Q1: What are the key criteria for substituting the MPDTH05050WAH?
A1: Substitution requires matching module type, input voltage range, output voltage range, maximum output current, efficiency, mounting type, package/case, and operating temperature.

Q2: Are there any differences in mechanical compatibility between MPDTH05050WAH and PTH05050WAH?
A2: Both parts use a through-hole 6-DIP module package. Size differences are minimal as specified in the size/dimension field.

Q3: Is the substitute part suitable for the same applications as the original part?
A3: Both parts are specified for ITE (Commercial) applications. The substitute meets the same key electrical, mechanical, and environmental parameters.

Q4: What compliance or regulatory concerns are involved in substitution?
A4: Both parts have REACH Unaffected status and are in the ECCN EAR99 and HTSUS 8504.40.9580 categories. The substitute part is also ROHS3 compliant.
