Equivalent & Substitute Parts Reference: MPDTH03050WAH

Part Overview

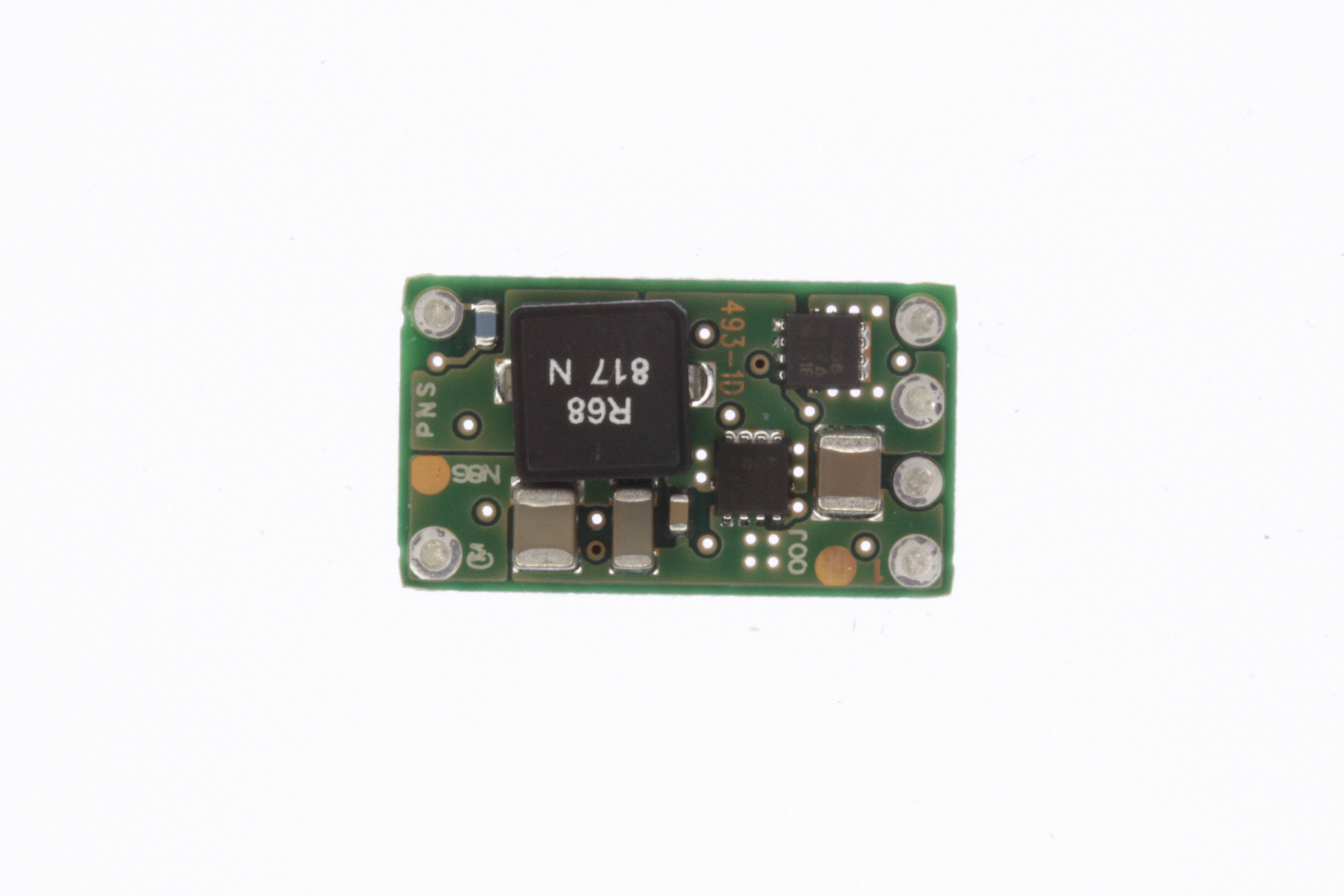

The Murata Power Solutions MPDTH03050WAH is a non-isolated Point-of-Load (PoL) DC-DC converter module featuring a single output, adjustable output voltage from 0.8V to 2.5V, and a maximum output current of 6A. This through-hole module supports input voltages from 2.95V to 3.65V and delivers up to 15W output power, with 94% efficiency. The product is currently listed as obsolete, making it necessary to identify alternative models with matching electrical and mechanical parameters for new designs or replacement needs.

Substiute Parts

MPDTH03050WAH

Murata Power Solutions Inc.In Stock: 1117MPDTH03050WAH Datasheet

Current PartRFQ

PTH03050WAH

Texas InstrumentsIn Stock: 1455PTH03050WAH Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute part selection for the MPDTH03050WAH DC-DC converter is strictly determined by matching key electrical and mechanical parameters. These parameters include the voltage input range (2.95V–3.65V), output voltage range (0.8V–2.5V), maximum output current (6A), efficiency (94%), mounting type (through hole), package/case (6-DIP Module), and size/dimensions. Product application and compliance data (ITE commercial use, REACH status, ECCN, HTSUS) must also align. Only parts meeting all these provided characteristics are considered suitable substitutes.

Parameter Comparison

Engineering Selection Recommendations

Select substitute parts strictly based on product status, compliance, and certifications as provided. The main part, MPDTH03050WAH, is obsolete, while the recommended substitute, PTH03050WAH, is active and carries RoHS3 compliance. Both parts are REACH unaffected and share identical ECCN and HTSUS codes. Substitute selection must adhere to certification and compliance as stated in the provided parameters.

Frequently Asked Questions (FAQ)

Q1: What parameters are critical when selecting an equivalent DC-DC converter for MPDTH03050WAH?
A1: Substitution requires matching voltage input range (2.95V–3.65V), output voltage range (0.8V–2.5V), maximum output current (6A), efficiency (94%), package type (6-DIP Module), mounting type (through hole), operating temperature range (-40°C ~ 85°C), and size/dimension.

Q2: Are there differences in physical size or package between MPDTH03050WAH and its substitute PTH03050WAH?
A2: Both parts are in a 6-DIP Module package with comparable dimensions: MPDTH03050WAH is 0.87" L x 0.49" W x 0.33" H, PTH03050WAH is 0.87" L x 0.50" W x 0.34" H.

Q3: Does the substitute part offer the same compliance and certifications?
A3: Both parts are REACH unaffected and have the same ECCN (EAR99) and HTSUS (8504.40.9580) codes. The substitute part, PTH03050WAH, is additionally ROHS3 compliant.

Q4: What is the main reason for substituting MPDTH03050WAH?
A4: The main part is obsolete, and continued availability cannot be guaranteed; substitution ensures functionality with active, compliant, and available components.

Q5: Are there application category considerations for substitution?
A5: Both parts are specified for ITE (Commercial) applications, aligning with allowed application categories for substitution.

Q6: Is moisture sensitivity level (MSL) relevant for these parts?
A6: MPDTH03050WAH has MSL 2 (1 Year), while PTH03050WAH is listed as Not Applicable. Always verify supplied MSL parameters for inventory and handling practices.
