Equivalent & Substitute Parts for MPDTH03010WAH

Part Overview

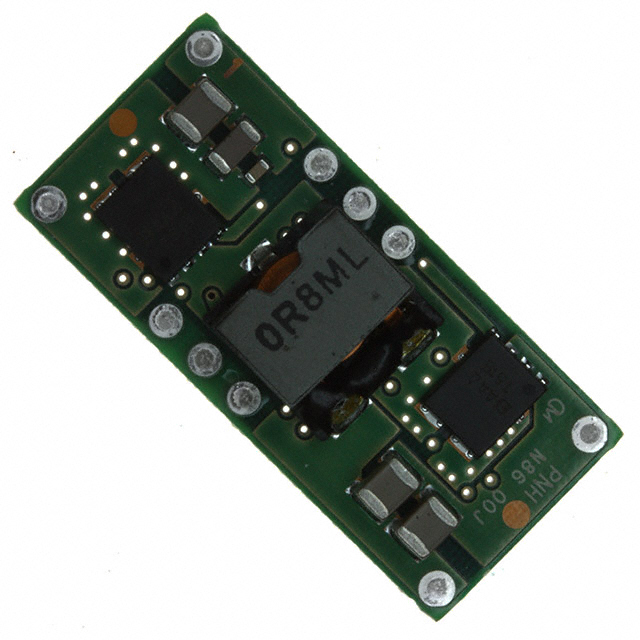

The Murata Power Solutions Inc. MPDTH03010WAH is a non-isolated point of load (PoL) module DC-DC converter, featuring a single output range of 0.8V to 2.5V with a maximum output current of 15A, an input voltage range from 2.95V to 3.65V, and an efficiency of 93%. The product is now classified as obsolete, necessitating the selection of alternative models for continued production support and design-in applications where identical or closely matched electrical and mechanical parameters are mandatory.

Substiute Parts

MPDTH03010WAH

Murata Power Solutions Inc.In Stock: 751MPDTH03010WAH Datasheet

Current PartRFQ

PTH03010WAH

Texas InstrumentsIn Stock: 1645PTH03010WAH Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts are identified based on strict matching of key parameters relevant to non-isolated PoL module DC-DC converters. For the MPDTH03010WAH, eligible substitutes are determined by compatibility in input voltage range (2.95V–3.65V), output voltage range (0.8V–2.5V), maximum output current (15A), efficiency (93%), number of outputs (1), package (10-DIP Module), mounting type (Through Hole), and operating temperature (-40°C to 85°C). All listed parameters are matched directly between the main part and substitute options.

Parameter Comparison

Engineering Selection Recommendations

MPDTH03010WAH is classified as obsolete. Based on matching key parameters and electrical ratings, as well as provided product compliance information, PTH03010WAH from Texas Instruments is identified as a direct substitute. PTH03010WAH maintains ROHS3 compliance and a REACH unaffected status, aligning with required compliance and environmental directives.

Frequently Asked Questions (FAQ)

Q1: What criteria are used for substituting the MPDTH03010WAH?
A1: Substitution is based strictly on matching the input voltage range, output voltage range, maximum output current, efficiency, electrical isolation type, package, mounting type, operating temperature range, and mechanical dimensions.

Q2: Is the substitute PTH03010WAH pin-to-pin compatible with MPDTH03010WAH?
A2: Both devices use a 10-DIP module package and through-hole mounting with closely aligned mechanical dimensions as specified.

Q3: Are there any differences in compliance status between the main part and the substitute?
A3: MPDTH03010WAH is obsolete; PTH03010WAH is active and ROHS3 compliant, meeting current regulatory requirements.

Q4: Are multiple output voltages supported by either part?
A4: Both MPDTH03010WAH and PTH03010WAH provide a single output voltage range from 0.8V to 2.5V.

Q5: Is there any variation in performance parameters such as efficiency and temperature range?
A5: Both parts have an efficiency of 93% and an operating temperature range of -40°C to 85°C, ensuring equivalent thermal and power performance as per specifications.

Q6: How do the mechanical dimensions compare between the original and substitute part?
A6: The sizes are nearly identical, with PTH03010WAH measuring 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm), closely matching the MPDTH03010WAH.
