MPCI-L200-03S Equivalent & Substitute Parts

Part Overview

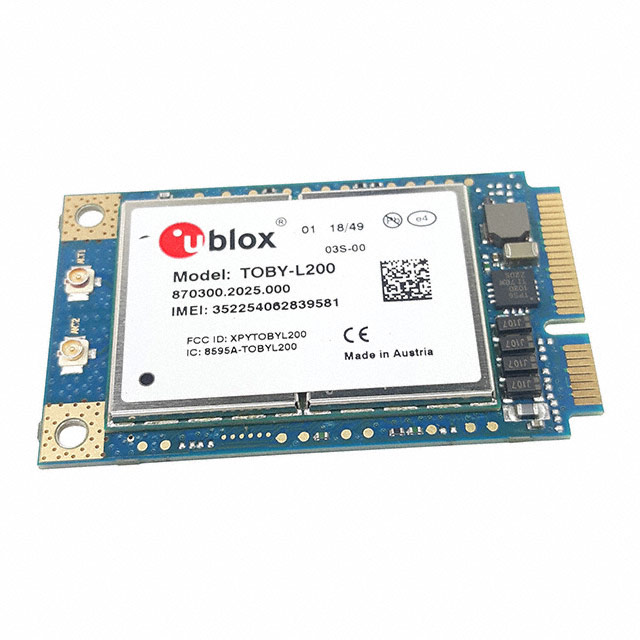

The MPCI-L200-03S is a cellular LTE transceiver module manufactured by u-blox, designed for multi-band wireless communication across 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, and 2.6GHz frequency bands. This module features castellation surface mount packaging and operates at 3.3V supply voltage with a maximum data rate of 150Mbps. The product is currently classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing system support and new design implementations.

Substiute Parts

MPCI-L200-03S

u-bloxIn Stock: 736MPCI-L200-03S Datasheet

Current PartRFQ

MPCI-L200-03S-03

u-bloxIn Stock: 1175MPCI-L200-03S-03 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The MPCI-L200-03S-03 is identified as a direct substitute within the MPCI-L2 series. Substitution eligibility is determined by the following parameters:

Matching Parameters:

• Manufacturer: u-blox
• Series: MPCI-L2
• RF Family/Standard: Cellular
• Frequency Bands: 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz
• Data Rate: 150Mbps
• Operating Temperature: -40°C ~ 85°C
• ECCN: 5A992C
• Moisture Sensitivity Level (MSL): 1 (Unlimited)

Differing Parameters:

• Protocol: MPCI-L200-03S supports LTE only; MPCI-L200-03S-03 supports EDGE, GSM, GPRS, HSDPA, HSUPA, LTE, UMTS
• Voltage - Supply: MPCI-L200-03S requires 3.3V; MPCI-L200-03S-03 operates at 3V ~ 3.6V
• Serial Interfaces: MPCI-L200-03S provides UART and USB; MPCI-L200-03S-03 provides USB only
• Mounting Type: MPCI-L200-03S uses castellation surface mount; MPCI-L200-03S-03 uses card edge
• Package / Case: MPCI-L200-03S is 52-SMD Module; MPCI-L200-03S-03 is Module
• Power - Output: MPCI-L200-03S-03 specifies 33dBm
• Current - Receiving/Transmitting: MPCI-L200-03S-03 specifies 245mA ~ 880mA
• Modulation: MPCI-L200-03S-03 supports 8PSK, GMSK
• Product Status: MPCI-L200-03S is obsolete; MPCI-L200-03S-03 is active

Parameter Comparison

Engineering Selection Recommendations

The MPCI-L200-03S-03 is an active product within the same MPCI-L2 series and shares identical frequency band coverage, data rate, operating temperature range, and export control classification. Both modules maintain RoHS compliance and unlimited moisture sensitivity rating.

Selection of MPCI-L200-03S-03 as a substitute requires evaluation of the following design-level differences:

Voltage Supply Compatibility: The substitute operates across 3V to 3.6V, providing broader supply voltage tolerance compared to the fixed 3.3V requirement of the original part. Power supply designs must accommodate this range.

Serial Interface Availability: The original part provides both UART and USB interfaces, while the substitute provides USB only. System designs dependent on UART communication require alternative interface implementation.

Mounting Configuration: The original part uses castellation surface mount, while the substitute uses card edge mounting. PCB layout and connector design must be adapted accordingly.

Protocol Support: The substitute supports extended protocol coverage including EDGE, GSM, GPRS, HSDPA, HSUPA, and UMTS in addition to LTE, enabling broader network compatibility.

Product Status: The substitute is actively manufactured, ensuring long-term availability and supply chain continuity compared to the obsolete original part.

Frequently Asked Questions (FAQ)

Q: Can MPCI-L200-03S-03 directly replace MPCI-L200-03S in existing designs?

A: Direct replacement requires PCB redesign due to mounting type differences (castellation vs. card edge) and connector interface changes. Serial interface availability differs, requiring evaluation of UART dependency in the original design.

Q: What are the key compatibility considerations for substitution?

A: Evaluate power supply voltage range (3V to 3.6V vs. fixed 3.3V), serial interface requirements (USB only vs. UART + USB), and PCB mounting configuration. Both parts maintain identical frequency band support and operating temperature range.

Q: Does the substitute support all protocols of the original part?

A: The substitute supports LTE and extends protocol coverage to include EDGE, GSM, GPRS, HSDPA, HSUPA, and UMTS. The original part supports LTE only.

Q: Are there supply voltage design implications?

A: The substitute's 3V to 3.6V operating range provides flexibility compared to the original 3.3V fixed requirement. Existing 3.3V supply designs remain compatible within the substitute's operating range.

Q: What packaging differences exist between these parts?

A: MPCI-L200-03S uses 52-SMD Module with castellation surface mount. MPCI-L200-03S-03 uses Module packaging with card edge mounting, requiring different PCB connector and layout implementation.

Q: Are both parts RoHS compliant?

A: Both MPCI-L200-03S and MPCI-L200-03S-03 are RoHS compliant with identical moisture sensitivity level (MSL 1, Unlimited).
