MNG14-10FLK Equivalent & Substitute Parts

Part Overview

The MNG14-10FLK is an insulated spade terminal connector manufactured by 3M, designed for crimp termination on 14-16 AWG wire. This component features a 10 stud configuration with blue polyamide insulation and tin-plated copper contact material. The part is classified as Active status and is RoHS Compliant, making it suitable for applications requiring reliable electrical connections in industrial and commercial environments. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, ensuring functional interchangeability within defined tolerance ranges.

Substiute Parts

MNG14-10FLK

3MIn Stock: 904MNG14-10FLK Datasheet

Current PartRFQ

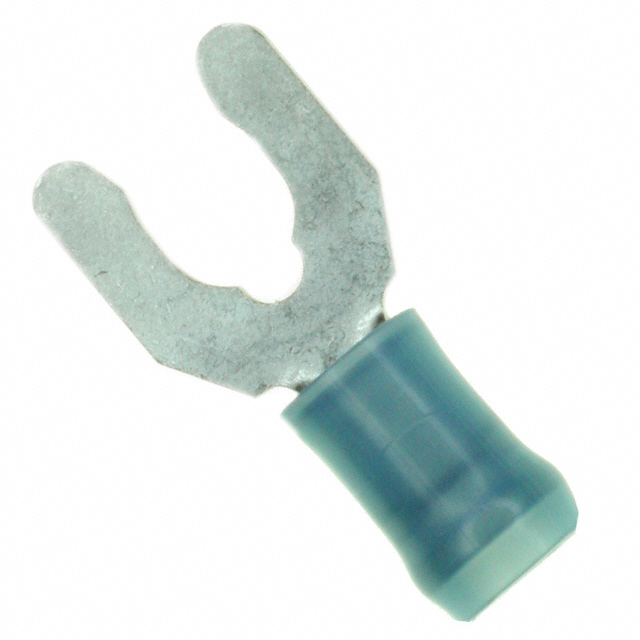

52937-1

TE Connectivity AMP ConnectorsIn Stock: 648352937-1 Datasheet

MFR RecommendedRFQ

PNF14-10LF-M

Panduit CorpIn Stock: 1923PNF14-10LF-M Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the MNG14-10FLK are qualified based on the following critical parameters:

• Wire gauge compatibility (14-16 AWG)
• Stud size equivalence (10 Stud)
• Terminal type classification (Spring, Snap)
• Crimp termination capability
• Insulation material and color match (Blue polyamide)
• Contact finish specification (Tin)
• Free hanging in-line mounting configuration
• RoHS compliance status

The identified substitutes—52937-1 (TE Connectivity) and PNF14-10LF-M (Panduit)—meet these core electrical and mechanical requirements. Dimensional variations within manufacturing tolerances and minor material composition differences (phosphor bronze vs. copper) do not preclude functional equivalence for standard applications.

Parameter Comparison

Engineering Selection Recommendations

All three parts maintain Active product status and satisfy RoHS compliance requirements. The MNG14-10FLK (3M, Scotchlok™ series) and PNF14-10LF-M (Panduit, Pan-Term® series) exhibit closer dimensional alignment, with overall length and width variations within typical manufacturing tolerances. The 52937-1 (TE Connectivity, PIDG series) presents a wider outer edge dimension (0.406" vs. 0.320") and phosphor bronze contact material, which may require verification for space-constrained applications or where specific contact material properties are mandated by design specification.

Selection should prioritize parts matching the original manufacturer specification unless design requirements explicitly permit material or dimensional substitution. Packaging format differences (Bulk vs. Cut Tape) do not affect functional performance but may influence procurement and inventory management.

Frequently Asked Questions (FAQ)

Q: Can 52937-1 be used as a direct replacement for MNG14-10FLK?

A: The 52937-1 meets core electrical requirements (14-16 AWG, 10 stud, crimp termination, tin finish). However, dimensional differences exist: outer edge width is 0.406" compared to 0.320", and contact material is phosphor bronze rather than copper. Verification is required for applications with space constraints or specific contact material requirements.

Q: What is the primary difference between PNF14-10LF-M and MNG14-10FLK?

A: Both parts share equivalent electrical specifications and similar dimensions. The PNF14-10LF-M features serrated termination and ROHS3 compliance versus RoHS Compliant status. Overall length is 0.930" versus 0.890", a difference of 0.040" within typical tolerance ranges.

Q: Are all three parts RoHS compliant?

A: Yes. MNG14-10FLK and 52937-1 are RoHS Compliant. PNF14-10LF-M is ROHS3 Compliant, which represents an updated regulatory standard and maintains compatibility with RoHS requirements.

Q: Does packaging format affect part performance?

A: No. Packaging differences (Bulk vs. Cut Tape) are logistical considerations only and do not impact electrical or mechanical performance. Selection should be based on procurement and assembly process requirements.

Q: What wire gauge range do these terminals support?

A: All three parts are rated for 14-16 AWG wire. This specification is non-negotiable for substitution and must match the application requirement exactly.

Q: Can contact material differences affect circuit performance?

A: Contact material composition (copper vs. phosphor bronze) may influence electrical resistance and mechanical durability characteristics. Applications with specific contact material requirements should maintain the original specification unless engineering analysis confirms equivalence.
