MNG10-250DMK Quick Connect Crimp Terminal Equivalent & Substitute Parts

Part Overview

The MNG10-250DMK is a 0.250" (6.35mm) Quick Connect Male crimp connector manufactured by 3M under the Scotchlok™ series. This terminal is designed for 10-12 AWG wire applications with non-mating end insulation and tin-plated copper contacts. The part is currently active in production with 904 units in stock. Equivalent substitute parts are identified when design requirements, supply constraints, or manufacturing discontinuation necessitate alternative sourcing while maintaining electrical and mechanical compatibility.

Substiute Parts

MNG10-250DMK

3MIn Stock: 1009MNG10-250DMK Datasheet

Current PartRFQ

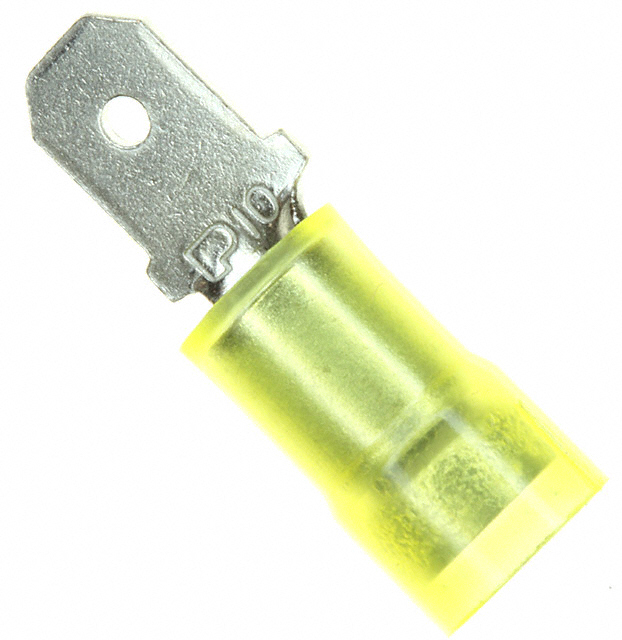

DNF10-250M-D

Panduit CorpIn Stock: 1572DNF10-250M-D Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MNG10-250DMK is determined by strict alignment of the following critical parameters:

• Tab Width: 0.250" (6.35mm) — must match exactly for connector receptacle compatibility
• Tab Thickness: 0.032" (0.81mm) — must match for proper mating force and electrical contact
• Wire Gauge: 10-12 AWG — must match for termination area and current-carrying capacity
• Termination Type: Crimp — must match for assembly process compatibility
• Gender: Male — must match for mating interface
• Insulation: Non-Mating End Insulated — must match for safety and application requirements
• Contact Material: Copper — must match for electrical conductivity and corrosion resistance
• Mounting Type: Free Hanging (In-Line) — must match for installation configuration

The DNF10-250M-D from Panduit Corp meets all critical substitution criteria and is classified as a manufacturer-recommended equivalent.

Parameter Comparison

Engineering Selection Recommendations

Both the MNG10-250DMK and DNF10-250M-D are active production parts with full regulatory compliance. The MNG10-250DMK carries RoHS Compliant status, while the DNF10-250M-D carries ROHS3 Compliant status. Both parts maintain REACH Unaffected and EAR99 ECCN classifications.

Selection between these parts should be based on:

• Supply availability: MNG10-250DMK has 904 units in stock; DNF10-250M-D has 1544 units in stock
• Contact finish requirements: MNG10-250DMK uses tin plating; DNF10-250M-D uses nickel plating
• Insulation diameter tolerance: MNG10-250DMK specifies 0.250" (6.35mm); DNF10-250M-D specifies 0.230" (5.84mm)
• Overall length tolerance: MNG10-250DMK is 1.050" (26.67mm); DNF10-250M-D is 1.030" (26.16mm)
• Termination feature: DNF10-250M-D includes serrated termination

Frequently Asked Questions (FAQ)

Q: Can DNF10-250M-D be used as a direct replacement for MNG10-250DMK?

A: Yes. Both parts share identical tab width (0.250"), tab thickness (0.032"), wire gauge (10-12 AWG), gender (male), insulation type (non-mating end insulated), and mounting configuration (free hanging in-line). The parts are mechanically and electrically compatible for standard applications.

Q: What are the differences between these two parts?

A: The primary differences are contact finish (tin vs. nickel), insulation diameter (0.250" vs. 0.230"), overall length (1.050" vs. 1.030"), and termination feature (standard vs. serrated). These differences do not affect compatibility in standard quick-connect applications.

Q: Are both parts RoHS compliant?

A: Yes. MNG10-250DMK is RoHS Compliant, and DNF10-250M-D is ROHS3 Compliant. Both meet current regulatory requirements.

Q: Which part should I select if both are available?

A: Selection depends on application-specific requirements. If nickel plating is preferred for corrosion resistance in harsh environments, select DNF10-250M-D. If tin plating is specified, select MNG10-250DMK. For general applications, either part is suitable based on availability and lead time.

Q: Are there any packaging considerations?

A: Both parts are supplied in bulk packaging. Verify minimum order quantities and delivery schedules with your supplier before finalizing procurement.
