MMP6P47K Film Capacitor Equivalent & Substitute Parts

Part Overview

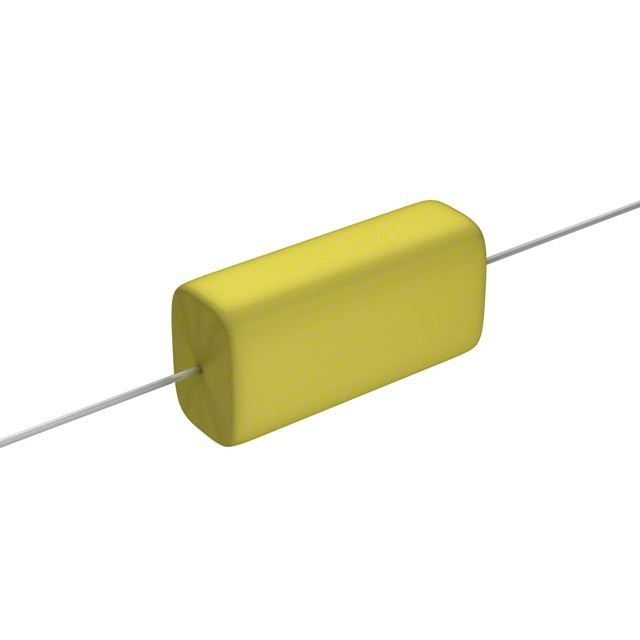

The MMP6P47K is a 0.47 µF film capacitor manufactured by Cornell Dubilier Electronics (CDE) designed for general-purpose applications requiring high voltage performance. This axial-mounted through-hole component features a polyester metallized dielectric with a 630V DC rating and ±10% capacitance tolerance. The MMP6P47K is classified as obsolete, necessitating identification of active equivalent parts to ensure continued availability and supply chain continuity for new designs and legacy system maintenance.

Substiute Parts

MMP6P47K

Cornell Dubilier Electronics (CDE)In Stock: 758MMP6P47K Datasheet

Current PartRFQ

MMP6P47K-F

Cornell Dubilier Electronics (CDE)In Stock: 1587MMP6P47K-F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MMP6P47K is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in capacitance value, voltage ratings, dielectric composition, temperature operating range, physical dimensions, and termination type to ensure direct compatibility in circuit applications without circuit redesign or board layout modification.

The following parameters establish substitution validity:

• Capacitance: 0.47 µF (exact match required)
• Tolerance: ±10% (exact match required)
• Voltage Rating - DC: 630V (exact match required)
• Voltage Rating - AC: 250V (exact match required)
• Dielectric Material: Polyester, Metallized (exact match required)
• Operating Temperature: -55°C to 125°C (exact match required)
• Package Type: Axial (exact match required)
• Physical Dimensions: 17.50mm × 12.00mm × 35.00mm (exact match required)
• Termination: PC Pins (exact match required)

Parameter Comparison

Engineering Selection Recommendations

The MMP6P47K-F serves as the direct equivalent substitute for the obsolete MMP6P47K. Both components are manufactured by Cornell Dubilier Electronics within the MMP series and maintain identical electrical and mechanical specifications across all critical parameters including capacitance, voltage ratings, dielectric composition, temperature operating range, and physical dimensions.

The MMP6P47K-F is classified as an active product with current manufacturing status, ensuring ongoing availability and supply chain reliability. The substitute part achieves ROHS3 compliance, representing an improvement in environmental and regulatory adherence compared to the non-compliant original part. Both components maintain REACH Unaffected status and EAR99 export classification.

Selection of the MMP6P47K-F for new designs and legacy system replacements provides direct functional equivalence with enhanced regulatory compliance and guaranteed long-term availability.

Frequently Asked Questions (FAQ)

Q: Can the MMP6P47K-F be used as a direct replacement for the MMP6P47K in existing circuit designs?

A: Yes. The MMP6P47K-F is a direct equivalent substitute. All electrical parameters (capacitance, voltage ratings, tolerance, dielectric material, temperature range) and mechanical specifications (dimensions, termination type, mounting configuration) are identical, enabling drop-in replacement without circuit modification or board layout changes.

Q: What is the primary difference between the MMP6P47K and MMP6P47K-F?

A: The MMP6P47K-F is the active production variant of the obsolete MMP6P47K. Both parts are electrically and mechanically identical. The MMP6P47K-F offers improved regulatory compliance (ROHS3 Compliant versus RoHS non-compliant) and guaranteed current availability through Cornell Dubilier Electronics.

Q: Are the physical dimensions identical between these two parts?

A: Yes. Both the MMP6P47K and MMP6P47K-F share identical physical dimensions of 17.50mm width × 12.00mm thickness × 35.00mm length, ensuring compatibility with existing printed circuit board layouts and mechanical assemblies.

Q: What packaging options are available for these equivalent parts?

A: The MMP6P47K was available in standard packaging, while the MMP6P47K-F is supplied in bulk packaging. Both maintain the same axial through-hole configuration and PC pin termination suitable for wave soldering and through-hole assembly processes.

Q: Are there any compliance or certification differences between these parts?

A: The MMP6P47K-F achieves ROHS3 compliance, whereas the original MMP6P47K is RoHS non-compliant. Both parts maintain REACH Unaffected status and EAR99 export classification. The improved compliance of the MMP6P47K-F supports modern manufacturing and environmental standards.

Q: What is the operating temperature range for these capacitors?

A: Both the MMP6P47K and MMP6P47K-F operate across an identical temperature range of -55°C to 125°C, supporting applications in diverse thermal environments from industrial to aerospace applications.

Q: Can these parts be used interchangeably in high-voltage applications?

A: Yes. Both components maintain identical 630V DC and 250V AC voltage ratings, enabling direct substitution in high-voltage circuit applications without derating or performance compromise.
