MMP6P22K Film Capacitor Equivalent & Substitute Parts

Part Overview

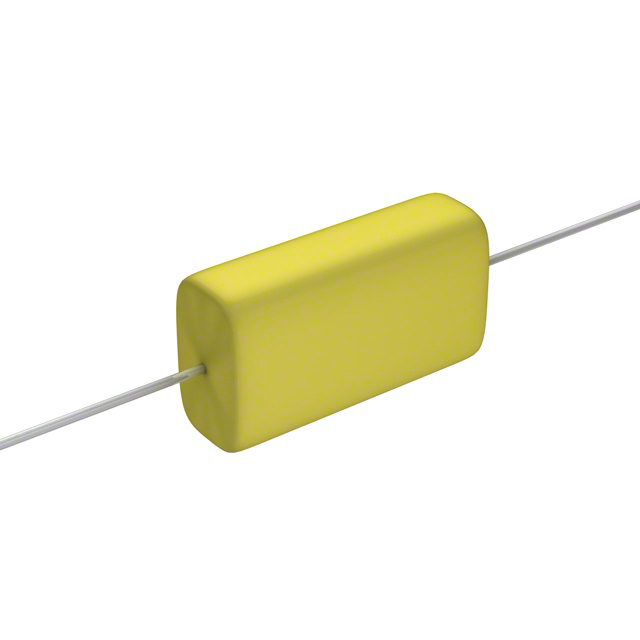

The MMP6P22K is a 0.22 µF film capacitor manufactured by Cornell Dubilier Electronics (CDE) with a 630V DC voltage rating and polyester metallized dielectric construction. This component is classified as obsolete, necessitating identification of active equivalent parts for ongoing procurement and design continuity. The MMP6P22K operates across a temperature range of -55°C to 125°C and is designed for general-purpose applications requiring axial through-hole mounting.

Substiute Parts

MMP6P22K

Cornell Dubilier Electronics (CDE)In Stock: 1026MMP6P22K Datasheet

Current PartRFQ

MMP6P22K-F

Cornell Dubilier Electronics (CDE)In Stock: 2224MMP6P22K-F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MMP6P22K is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in the following categories:

Electrical Parameters:

• Capacitance value: 0.22 µF
• Tolerance: ±10%
• Voltage rating (DC): 630V
• Voltage rating (AC): 250V
• Dielectric material: Polyester, Metallized

Mechanical Parameters:

• Mounting type: Through Hole
• Package configuration: Axial
• Physical dimensions: 0.591" W, 0.354" T x 1.063" L
• Termination style: PC Pins

Environmental Parameters:

• Operating temperature range: -55°C ~ 125°C
• Moisture sensitivity level: 1 (Unlimited)

The MMP6P22K-F variant meets all substitution criteria while offering improved product status and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The MMP6P22K-F is the direct equivalent substitute for the obsolete MMP6P22K. Both components are manufactured by Cornell Dubilier Electronics within the MMP series and maintain identical electrical and mechanical specifications across all critical parameters.

The primary distinction between these parts is product status and regulatory compliance. The MMP6P22K-F carries an Active product status, ensuring continued availability and manufacturing support. Additionally, the MMP6P22K-F achieves ROHS3 compliance, whereas the original MMP6P22K is RoHS non-compliant. Both components maintain REACH Unaffected status and carry the same ECCN (EAR99) and HTSUS (8532.25.0060) classifications.

For new designs or component replacement in existing applications, the MMP6P22K-F is the appropriate selection. The electrical performance, thermal characteristics, and physical form factor are identical, ensuring direct functional equivalence in circuit applications.

Frequently Asked Questions (FAQ)

Q: Can the MMP6P22K-F be used as a direct replacement for the MMP6P22K?

A: Yes. The MMP6P22K-F is electrically and mechanically identical to the MMP6P22K. Both components feature 0.22 µF capacitance, ±10% tolerance, 630V DC rating, polyester metallized dielectric, and identical physical dimensions. The MMP6P22K-F is the active production variant.

Q: What is the difference between the MMP6P22K and MMP6P22K-F?

A: The primary differences are product status and compliance certifications. The MMP6P22K is obsolete and RoHS non-compliant, while the MMP6P22K-F is active and ROHS3 compliant. Electrical and mechanical specifications are identical.

Q: Are there any physical dimension differences between these parts?

A: No. Both the MMP6P22K and MMP6P22K-F share identical physical dimensions of 0.591" W, 0.354" T x 1.063" L (15.00mm, 9.00mm x 27.00mm). Both use axial through-hole mounting with PC pin termination.

Q: What is the operating temperature range for these capacitors?

A: Both the MMP6P22K and MMP6P22K-F operate across a temperature range of -55°C to 125°C, suitable for general-purpose applications across industrial and commercial environments.

Q: Are these capacitors RoHS compliant?

A: The MMP6P22K is RoHS non-compliant. The MMP6P22K-F is ROHS3 compliant. Both components are REACH Unaffected.

Q: What packaging options are available?

A: The MMP6P22K is supplied in standard packaging, while the MMP6P22K-F is supplied in bulk packaging. Both contain the same component specifications.

Q: Can these capacitors be used in AC applications?

A: Yes. Both the MMP6P22K and MMP6P22K-F are rated for 250V AC operation, in addition to their 630V DC rating, making them suitable for general-purpose AC and DC applications.
