MMF011362 Bridge Compensation Module Equivalent & Substitute Parts

Part Overview

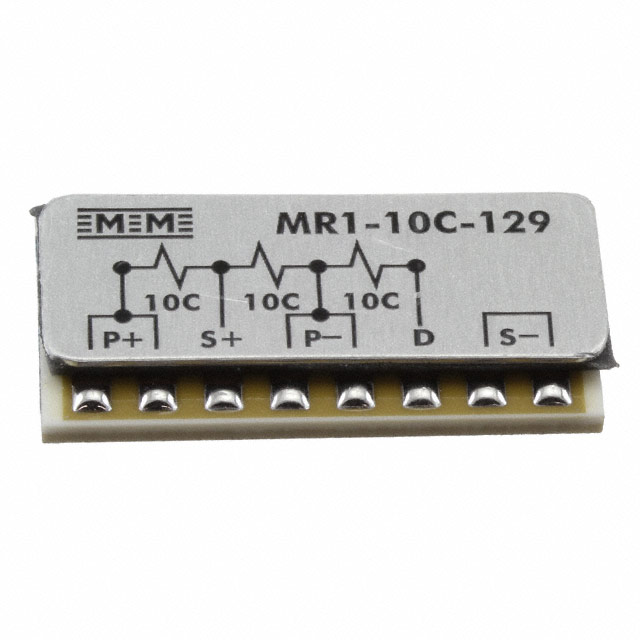

The MMF011362 is a general purpose sensor amplifier bridge compensation module manufactured by Micro-Measurements (Division of Vishay Precision Group). This component operates within a supply voltage range of 0.5V to 30V and supports operating temperatures from -45°C to 120°C. The part is classified as obsolete, making identification of suitable substitute components essential for ongoing system support and new design implementations. The MMF011362 is RoHS compliant with MSL rating of 1 (Unlimited), indicating minimal moisture sensitivity concerns during storage and handling.

Substiute Parts

MMF011362

Micro-Measurements (Division of Vishay Precision Group)In Stock: 789MMF011362 Datasheet

Current PartRFQ

MMF336862

Micro-Measurements (Division of Vishay Precision Group)In Stock: 953MMF336862 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MMF011362 is determined by strict alignment of the following electrical and mechanical parameters:

Critical Substitution Criteria:

• Amplifier Type: General Purpose
• Voltage Supply Range: 0.5V ~ 30V (minimum and maximum must match or exceed requirements)
• Operating Temperature Range: -45°C ~ 120°C (minimum and maximum must match or exceed requirements)
• Series Classification: MR series
• RoHS Compliance: Required
• Moisture Sensitivity Level: 1 (Unlimited)

The MMF336862 satisfies all substitution criteria as an active product within the same MR series, maintaining identical electrical specifications and environmental ratings while offering improved availability through active manufacturing status.

Parameter Comparison

Engineering Selection Recommendations

The MMF336862 is the manufacturer-recommended substitute for the obsolete MMF011362. Both components maintain identical electrical specifications across supply voltage (0.5V ~ 30V) and operating temperature range (-45°C ~ 120°C). Both parts carry RoHS compliance certification and MSL rating of 1 (Unlimited), ensuring equivalent environmental and regulatory compliance.

The primary distinction is product status: MMF011362 is obsolete while MMF336862 is actively manufactured. This transition ensures long-term component availability and supply chain continuity. The MMF336862 is specified as Surface Mount with Bulk packaging, which may require PCB layout modifications if the original design utilized different mounting technology.

Selection of MMF336862 is appropriate for applications requiring the electrical and thermal characteristics of the original MMF011362 where component availability and active manufacturing support are necessary.

Frequently Asked Questions (FAQ)

Q: Can MMF336862 directly replace MMF011362 in existing designs?

A: Electrical and thermal specifications are identical. However, the MMF336862 is specified as Surface Mount while the MMF011362 mounting type is not specified in available documentation. PCB layout compatibility must be verified before implementation.

Q: Why is MMF011362 listed as obsolete?

A: Obsolete status indicates the manufacturer has discontinued active production. MMF336862 represents the active product line continuation within the MR series.

Q: Are there differences in RoHS compliance between these parts?

A: Both MMF011362 and MMF336862 are RoHS compliant. No compliance differences exist.

Q: What is the significance of MSL rating 1 (Unlimited)?

A: MSL 1 (Unlimited) indicates the component has minimal moisture sensitivity. Storage conditions are not restricted, and the part does not require special moisture control during handling or assembly.

Q: Does packaging format affect electrical performance?

A: No. The Bulk packaging of MMF336862 is a supply format only and does not affect electrical characteristics or performance compared to MMF011362.

Q: Are supply voltage and temperature ranges identical?

A: Yes. Both parts operate across 0.5V to 30V supply voltage and -45°C to 120°C temperature range.
