MMF003133 Strain Gauge Equivalent & Substitute Parts

Part Overview

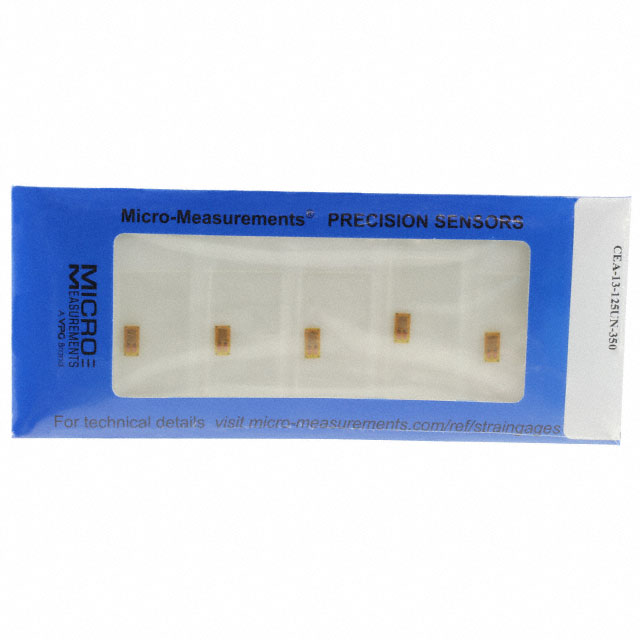

The MMF003133 is a linear strain gauge manufactured by Micro-Measurements (Division of Vishay Precision Group). This component is a 350 Ohm linear strain gauge with ±5% strain range capability, designed for precision measurement applications requiring active dimensions of 0.125" (3.18mm) length by 0.100" (2.54mm) width.

The MMF003133 carries an Obsolete product status. Identification of equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain reliability, and support ongoing production or field replacement requirements for systems utilizing this component.

Substiute Parts

MMF003133

Micro-Measurements (Division of Vishay Precision Group)In Stock: 998MMF003133 Datasheet

Current PartRFQ

MMF404326

Micro-Measurements (Division of Vishay Precision Group)In Stock: 867MMF404326 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MMF003133 is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Resistance value: 350 Ohms
• Resistance tolerance: ±0.3%
• Strain range: ±5%

Mechanical Parameters:

• Pattern type: Linear
• Active length: 0.125" (3.18mm)
• Active width: 0.100" (2.54mm)
• Overall dimensions: 0.38" (9.7mm) length × 0.19" (4.8mm) width

Environmental Parameters:

• Operating temperature range: -100 ~ 350°F (-75 ~ 175°C)
• Moisture sensitivity level: 1 (Unlimited)

Regulatory Parameters:

• RoHS compliance status
• ECCN classification: EAR99
• HTSUS code: 9031.80.8085

Substitute parts must match all electrical, mechanical, environmental, and regulatory parameters without deviation. The MMF404326 satisfies all substitution criteria for the obsolete MMF003133.

Parameter Comparison

Engineering Selection Recommendations

The MMF404326 is the direct equivalent substitute for the obsolete MMF003133 strain gauge. Both components are manufactured by Micro-Measurements and share identical electrical, mechanical, and environmental specifications.

Product Status Consideration: The MMF003133 is classified as Obsolete, while the MMF404326 is classified as Active. Selection of the MMF404326 provides access to current manufacturing, quality assurance processes, and ongoing supply availability from the manufacturer.

Compliance Status: The MMF003133 carries RoHS Compliant certification. The MMF404326 carries ROHS3 Compliant certification, representing an enhanced compliance standard. The MMF404326 additionally carries REACH Unaffected status, providing expanded regulatory coverage for international applications.

Packaging: The MMF404326 is supplied in Bulk packaging. Procurement specifications should confirm packaging requirements for integration into assembly or field replacement workflows.

Inventory Availability: Current inventory of MMF404326 is 828 pieces in new original condition, supporting immediate procurement for production or replacement applications.

Frequently Asked Questions (FAQ)

Q: Can the MMF404326 be used as a direct replacement for the MMF003133?

A: Yes. The MMF404326 is electrically and mechanically identical to the MMF003133 across all specified parameters, including resistance value, tolerance, strain range, active dimensions, overall dimensions, and operating temperature range. Both components are manufactured by Micro-Measurements in the CEA series.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: ROHS3 Compliant represents the current RoHS 3 directive standard, which supersedes earlier RoHS compliance classifications. The MMF404326 meets the more recent regulatory requirement. Both certifications confirm restriction of hazardous substances in the component.

Q: Why is the MMF003133 listed as Obsolete?

A: Obsolete status indicates the component is no longer in active production by the manufacturer. The MMF404326 is the current production equivalent, ensuring access to ongoing manufacturing support and supply chain continuity.

Q: Are the active dimensions identical between both parts?

A: Yes. Both the MMF003133 and MMF404326 have active dimensions of 0.125" (3.18mm) length by 0.100" (2.54mm) width. Overall dimensions are also identical at 0.38" (9.7mm) length by 0.19" (4.8mm) width.

Q: What is the significance of MSL 1 (Unlimited)?

A: Moisture Sensitivity Level 1 (Unlimited) indicates the component has no moisture sensitivity restrictions. Storage and handling do not require controlled humidity environments or desiccant packaging.

Q: Is the operating temperature range the same for both parts?

A: Yes. Both the MMF003133 and MMF404326 operate across the identical temperature range of -100 ~ 350°F (-75 ~ 175°C).

Q: What packaging is available for the MMF404326?

A: The MMF404326 is supplied in Bulk packaging. Specific packaging quantities should be confirmed with the supplier based on procurement requirements.
