Equivalent & Substitute Parts for MMF003129

Part Overview

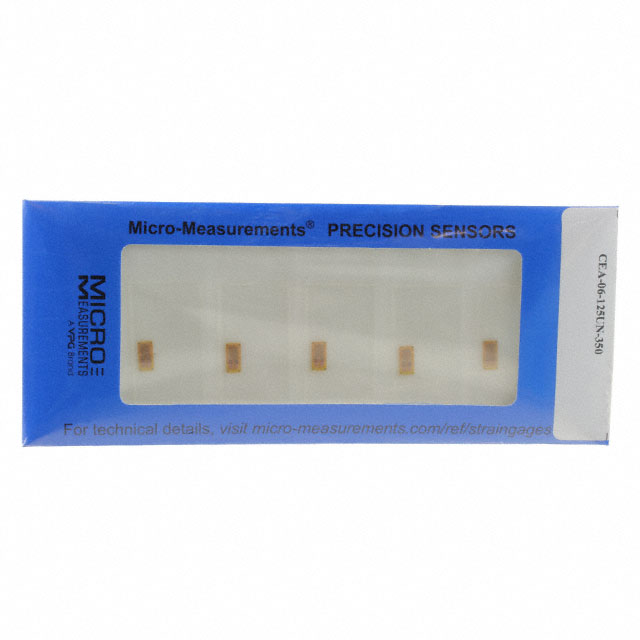

The MMF003129 is a linear strain gauge manufactured by Micro-Measurements (Division of Vishay Precision Group), part of the CEA series. This component features 350 Ohms resistance with ±5% strain range capability and is designed for precision measurement applications requiring active dimensions of 0.125" × 0.100" (3.18mm × 2.54mm). The part is currently classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and ensure long-term project viability.

Substiute Parts

MMF003129

Micro-Measurements (Division of Vishay Precision Group)In Stock: 846MMF003129 Datasheet

Current PartRFQ

MMF404325

Micro-Measurements (Division of Vishay Precision Group)In Stock: 929MMF404325 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MMF003129 is determined by strict equivalence across the following critical parameters:

Primary Substitution Criteria:

• Manufacturer: Micro-Measurements (Division of Vishay Precision Group)
• Series: CEA
• Resistance: 350 Ohms
• Resistance Tolerance: ±0.3%
• Strain Range: ±5%
• Pattern Type: Linear
• Active Dimensions: 0.125" × 0.100" (3.18mm × 2.54mm)
• Operating Temperature Range: -100 ~ 350°F (-75 ~ 175°C)
• RoHS Compliance: Required
• Moisture Sensitivity Level: 1 (Unlimited)

The MMF404325 qualifies as a manufacturer-recommended substitute based on identical electrical specifications (350 Ohms resistance, ±5% strain range, linear pattern) and equivalent environmental compliance certifications. The primary distinction is product status transition from obsolete to active, ensuring continued availability and supply chain support.

Parameter Comparison

Engineering Selection Recommendations

The MMF404325 is the manufacturer-recommended substitute for the obsolete MMF003129. Both components maintain identical electrical characteristics (350 Ohms, ±5% strain range, linear pattern) and equivalent environmental compliance certifications (RoHS Compliant, MSL 1). The transition from obsolete to active product status ensures long-term component availability, supply chain reliability, and continued manufacturer support for technical documentation and quality assurance.

Selection of MMF404325 eliminates obsolescence risk while preserving electrical and mechanical compatibility with existing circuit designs and measurement systems originally specified for MMF003129.

Frequently Asked Questions (FAQ)

Q: Can MMF404325 be used as a direct replacement for MMF003129?

A: Yes. Both components share identical electrical specifications (350 Ohms resistance, ±5% strain range, linear pattern type) and equivalent environmental compliance certifications. The primary difference is product status: MMF003129 is obsolete while MMF404325 is active.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution is determined by equivalence in resistance value (350 Ohms), resistance tolerance (±0.3%), strain range (±5%), pattern type (linear), active dimensions (0.125" × 0.100"), operating temperature range (-100 ~ 350°F), and compliance certifications (RoHS Compliant, MSL 1).

Q: Does packaging differ between these parts?

A: Packaging information for MMF003129 is not specified in the provided data. MMF404325 is supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: Are there any temperature or environmental limitations when substituting?

A: Both parts operate across the identical temperature range (-100 ~ 350°F / -75 ~ 175°C) and share equivalent moisture sensitivity ratings (MSL 1, Unlimited). No environmental limitations apply to substitution.

Q: Why is MMF003129 classified as obsolete?

A: Product obsolescence is determined by manufacturer lifecycle decisions. The availability of active equivalent MMF404325 ensures continued access to functionally identical strain gauge technology.
