MMCXV-J-P-HF-ST-TH1 Equivalent & Substitute Parts

Part Overview

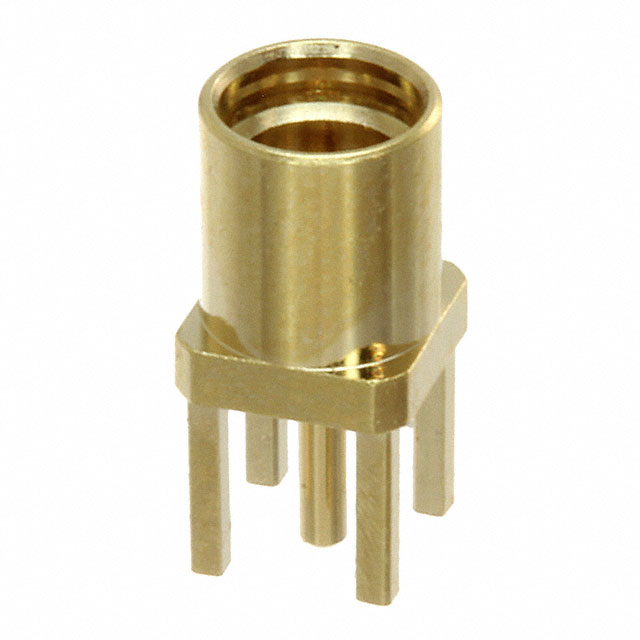

The MMCXV-J-P-HF-ST-TH1 is an MMCX (V) Connector Jack with female socket configuration, rated for 50 ohms impedance and designed for through-hole solder mounting. This high-vibration rated coaxial connector operates across a frequency range up to 6 GHz and is suitable for RF applications requiring robust mechanical performance. The part is currently active in production with full RoHS3 compliance and REACH compliance status. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector specification.

Substiute Parts

MMCXV-J-P-HF-ST-TH1

Samtec Inc.In Stock: 1194MMCXV-J-P-HF-ST-TH1 Datasheet

Current PartRFQ

MMCXV-J-P-GF-ST-TH1

Samtec Inc.In Stock: 1000MMCXV-J-P-GF-ST-TH1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the MMCXV-J-P-HF-ST-TH1 are identified based on strict equivalence across the following critical parameters:

• Connector Style: MMCX (V)
• Connector Type: Jack, Female Socket
• Impedance: 50 Ohms
• Mounting Type: Through Hole
• Contact Termination: Solder
• Shield Termination: Solder
• Frequency - Max: 6 GHz
• Features: High Vibration
• Operating Temperature: -65°C ~ 125°C
• Series: MMCXV-TH
• Base Product Number: MMCXV-J
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

All substitute parts maintain identical electrical performance and mechanical compatibility within the MMCXV-TH series.

Parameter Comparison

Engineering Selection Recommendations

Both the MMCXV-J-P-HF-ST-TH1 and MMCXV-J-P-GF-ST-TH1 are active production parts manufactured by Samtec Inc. with identical electrical specifications and mechanical compatibility. Selection between these parts is based on inventory availability and supply chain requirements. Both parts maintain full RoHS3 compliance and REACH compliance status, meeting regulatory requirements for industrial and commercial RF applications. The MMCXV-J-P-HF-ST-TH1 currently has 1127 pieces in stock, while the MMCXV-J-P-GF-ST-TH1 has 900 pieces available. Either part is suitable for direct substitution in applications requiring 50-ohm MMCX jack connectors with through-hole solder mounting and high-vibration performance up to 6 GHz.
