MMCX-LP-FHSB(40) Equivalent & Substitute Parts

Part Overview

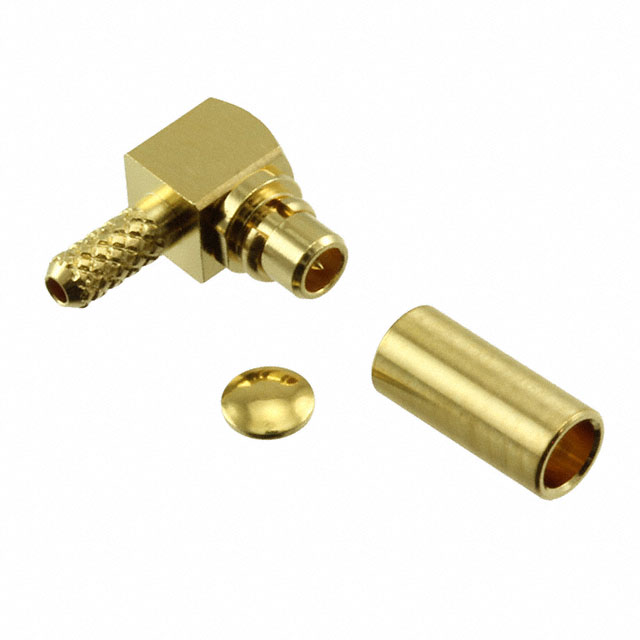

The MMCX-LP-FHSB(40) is an MMCX Connector Plug manufactured by Hirose Electric Co Ltd, designed for RF coaxial applications requiring 50 Ohm impedance. This male pin connector features right-angle solder termination and free-hanging (in-line) mounting configuration. The component is actively produced and RoHS compliant, making it suitable for modern electronic assemblies. Identifying equivalent substitute parts ensures design flexibility, supply chain continuity, and component availability across manufacturing cycles.

Key Parameters

Parameter	Value
Manufacturer Part Number	MMCX-LP-FHSB(40)
Manufacturer	Hirose Electric Co Ltd
Category	Coaxial Connectors (RF)
Connector Style	MMCX
Connector Type	Plug, Male Pin
Impedance	50 Ohms
Contact Termination	Solder
Shield Termination	Crimp
Mounting Type	Free Hanging (In-Line), Right Angle
Fastening Type	Snap-On
Frequency - Max	6 GHz
Number of Ports	1
Housing Color	Gold
Center Contact Material	Phosphor Bronze
Body Material	Brass
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Operating Temperature	-55°C ~ 85°C
Mating Cycles	500
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Active

Substitute Part Grouping Explanation

Substitution of the MMCX-LP-FHSB(40) is determined by strict equivalence across the following critical parameters:

Connector Interface Parameters: Connector style (MMCX), connector type (Plug, Male Pin), and impedance (50 Ohms) must remain identical to ensure mechanical and electrical compatibility with mating receptacles.

Termination Parameters: Contact termination (Solder) and shield termination (Crimp) must match to maintain assembly process compatibility and signal integrity.

Mechanical Configuration: Mounting type (Free Hanging/In-Line, Right Angle) and fastening type (Snap-On) must be preserved to ensure proper board integration and mechanical retention.

Electrical Performance: Frequency maximum (6 GHz) and number of ports (1) define the operational bandwidth and circuit topology compatibility.

Material and Environmental Specifications: Center contact material (Phosphor Bronze), body material (Brass), dielectric material (PTFE), operating temperature range (-55°C ~ 85°C), and mating cycle rating (500) establish reliability and environmental performance equivalence.

Compliance: RoHS compliance status and MSL rating (1) must align with manufacturing and storage requirements.

The MMCX-LP-066(40) meets all these criteria and is classified as a parametric equivalent.

Parameter Comparison

Parameter	MMCX-LP-FHSB(40)	MMCX-LP-066(40)	Match
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Yes
Connector Style	MMCX	MMCX	Yes
Connector Type	Plug, Male Pin	Plug, Male Pin	Yes
Impedance	50 Ohms	50 Ohms	Yes
Contact Termination	Solder	Solder	Yes
Shield Termination	Crimp	Crimp	Yes
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle	Yes
Fastening Type	Snap-On	Snap-On	Yes
Frequency - Max	6 GHz	6 GHz	Yes
Number of Ports	1	1	Yes
Housing Color	Gold	Gold	Yes
Center Contact Material	Phosphor Bronze	Phosphor Bronze	Yes
Body Material	Brass	Brass	Yes
Body Finish	Gold	Gold	Yes
Center Contact Plating	Gold	Gold	Yes
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)	Yes
Operating Temperature	-55°C ~ 85°C	-55°C ~ 85°C	Yes
Mating Cycles	500	500	Yes
RoHS Status	RoHS Compliant	RoHS Compliant	Yes
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	Yes
Product Status	Active	Active	Yes
Includes	Connector only	2 pcs - 1 Connector, 1 Heat Shrink	Partial

Engineering Selection Recommendations

Both the MMCX-LP-FHSB(40) and MMCX-LP-066(40) are active products manufactured by Hirose Electric Co Ltd and carry RoHS compliance certification. All critical electrical, mechanical, and environmental parameters are identical, establishing full parametric equivalence for RF coaxial connector applications.

The MMCX-LP-066(40) includes supplementary packaging (heat shrink) not present in the MMCX-LP-FHSB(40). This difference does not affect electrical or mechanical compatibility but may influence assembly workflow and material handling procedures.

Selection between these parts should be based on supply availability, inventory status, and packaging requirements specific to the application assembly process.

Frequently Asked Questions (FAQ)

Q: Can MMCX-LP-066(40) be used as a direct replacement for MMCX-LP-FHSB(40)?

A: Yes. Both connectors are parametrically equivalent across all critical specifications including connector style, impedance, termination method, mounting configuration, frequency rating, and environmental operating range. They are mechanically and electrically interchangeable in RF coaxial applications.

Q: What is the difference between these two part numbers?

A: The primary difference is packaging. MMCX-LP-066(40) includes a heat shrink component in addition to the connector, while MMCX-LP-FHSB(40) is supplied as the connector only. All functional and performance characteristics are identical.

Q: Are both parts RoHS compliant?

A: Yes. Both MMCX-LP-FHSB(40) and MMCX-LP-066(40) are RoHS compliant and carry MSL rating 1 (Unlimited), suitable for standard manufacturing and storage conditions.

Q: What is the maximum operating frequency for these connectors?

A: Both parts are rated for operation up to 6 GHz, suitable for RF and microwave applications within this frequency range.

Q: What is the impedance specification?

A: Both connectors are 50 Ohm impedance, the standard for RF coaxial applications.

Q: How many mating cycles are these connectors rated for?

A: Both parts are rated for 500 mating cycles, defining the expected mechanical durability under repeated connection and disconnection operations.
