MLX90615SSG-DAG-000-SP Equivalent & Substitute Parts

Part Overview

The MLX90615SSG-DAG-000-SP is a digital infrared temperature sensor manufactured by Melexis Technologies NV, designed for simultaneous measurement of local and remote (IR) temperatures. This component operates across a local sensing range of -40°C to 85°C with remote IR sensing capability up to 115°C, utilizing PWM and SMBus output protocols. The device is qualified to AEC-Q100 automotive standards and complies with ROHS3 and REACH requirements.

The MLX90615SSG-DAG-000-SP is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or maintenance requirements for systems utilizing this sensor.

Substiute Parts

MLX90615SSG-DAG-000-SP

Melexis Technologies NVIn Stock: 1181MLX90615SSG-DAG-000-SP Datasheet

Current PartRFQ

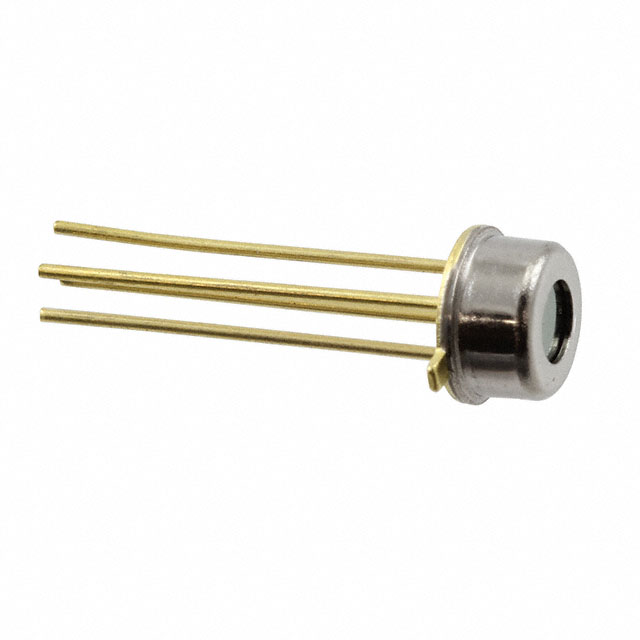

ZTP-135BS

Amphenol ThermometricsIn Stock: 1557ZTP-135BS Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MLX90615SSG-DAG-000-SP is evaluated based on the following critical parameters that define functional and mechanical compatibility:

Package Compatibility: Both the main part and substitute must utilize the TO-46-4 through-hole metal can package to ensure mechanical fit and thermal interface consistency.

Sensor Technology: The MLX90615SSG-DAG-000-SP employs digital infrared sensing with dual-channel temperature measurement (local and remote). Substitute parts must provide infrared temperature sensing capability to maintain functional equivalence.

Temperature Range Coverage: The main part covers local sensing from -40°C to 85°C and remote IR sensing to 115°C. Substitute parts must support overlapping or equivalent temperature ranges for the intended application.

Output Protocol: The MLX90615SSG-DAG-000-SP provides PWM and SMBus digital outputs. Substitute parts with different output types (such as analog voltage) represent functional alternatives rather than direct equivalents, requiring circuit-level design modifications.

Supply Voltage: The main part operates at 2.6V to 3.4V. Substitute parts must operate within compatible voltage ranges to ensure direct integration into existing power distribution networks.

Compliance and Certification: The MLX90615SSG-DAG-000-SP holds AEC-Q100 automotive qualification and ROHS3 compliance. Substitute parts should maintain equivalent or superior compliance status for automotive applications.

Parameter Comparison

Engineering Selection Recommendations

Direct Substitution Limitations: The ZTP-135BS cannot serve as a direct pin-compatible replacement for the MLX90615SSG-DAG-000-SP due to fundamental differences in output architecture. The MLX90615SSG-DAG-000-SP provides digital outputs (PWM and SMBus), while the ZTP-135BS provides analog voltage output. This difference requires circuit-level modifications including signal conditioning and analog-to-digital conversion stages.

Package Compatibility: Both components utilize TO-46-4 through-hole metal can packages, ensuring mechanical fit within existing sensor mounting interfaces. The ZTP-135BS features a lens top variant, which may affect thermal coupling characteristics compared to the standard metal can of the MLX90615SSG-DAG-000-SP.

Temperature Range Considerations: The MLX90615SSG-DAG-000-SP supports extended low-temperature operation (-40°C local sensing) and high remote IR sensing (115°C). The ZTP-135BS operates from -20°C to 100°C for both local and remote sensing. Applications requiring operation below -20°C or remote sensing above 100°C cannot utilize the ZTP-135BS as a substitute.

Compliance Status: The MLX90615SSG-DAG-000-SP holds AEC-Q100 automotive qualification. The ZTP-135BS is listed as active with RoHS compliance but does not specify AEC-Q100 qualification. For automotive applications requiring AEC-Q100 certification, the ZTP-135BS may not meet regulatory requirements.

Product Availability: The MLX90615SSG-DAG-000-SP is obsolete with 1155 units in stock. The ZTP-135BS is active with 1461 units available, providing improved long-term supply chain continuity for new designs or redesigned systems.

Frequently Asked Questions (FAQ)

Q: Can the ZTP-135BS replace the MLX90615SSG-DAG-000-SP in an existing circuit without modifications?

A: No. The ZTP-135BS cannot serve as a direct replacement without circuit modifications. The MLX90615SSG-DAG-000-SP outputs digital signals (PWM and SMBus), while the ZTP-135BS provides analog voltage output. Any substitution requires redesign of signal processing and microcontroller interface stages.

Q: What are the key differences in temperature sensing capability between these two sensors?

A: The MLX90615SSG-DAG-000-SP measures local temperatures from -40°C to 85°C and remote IR temperatures from -40°C to 115°C. The ZTP-135BS measures temperatures from -20°C to 100°C for both local and remote sensing. Applications requiring operation below -20°C or remote sensing above 100°C must retain the MLX90615SSG-DAG-000-SP or identify alternative sensors.

Q: Are both sensors suitable for automotive applications?

A: The MLX90615SSG-DAG-000-SP is qualified to AEC-Q100 automotive standards. The ZTP-135BS does not specify AEC-Q100 qualification. For automotive applications requiring AEC-Q100 certification, the MLX90615SSG-DAG-000-SP is the appropriate choice. The ZTP-135BS may be suitable for non-automotive or less stringent applications.

Q: What is the significance of the TO-46-4 package difference between these sensors?

A: Both sensors use TO-46-4 through-hole metal can packages, ensuring mechanical compatibility with existing mounting interfaces. The ZTP-135BS features a lens top variant, which may alter thermal coupling and field-of-view characteristics compared to the standard metal can. Thermal performance should be validated for the specific application.

Q: Why is the MLX90615SSG-DAG-000-SP classified as obsolete?

A: The MLX90615SSG-DAG-000-SP is listed as obsolete by the manufacturer, indicating discontinued production. Despite obsolete status, 1155 units remain in stock. For long-term supply chain planning, alternative sensors with active production status should be evaluated for new designs.

Q: What supply voltage does the ZTP-135BS require?

A: The supply voltage specification for the ZTP-135BS is not provided in the available technical parameters. This information must be obtained from the manufacturer's datasheet before circuit integration to ensure compatibility with existing power distribution networks.
