MLM1-512 Equivalent & Substitute Parts

Part Overview

The MLM1-512 is a T1/T1 3/4 LED standoff manufactured by Bivar Inc., designed for vertical mounting applications with a 0.512" (13.00mm) length. This component is constructed from black nylon material and is classified as Active product status with full ROHS3 compliance. LED standoffs serve as mechanical spacers and alignment fixtures in LED assembly applications, positioning light-emitting diodes at precise heights above printed circuit boards. Substitute parts become necessary when the primary part experiences supply constraints, extended lead times, or when design flexibility permits dimensional or material variations within acceptable tolerances.

Substiute Parts

MLM1-512

Bivar Inc.In Stock: 979MLM1-512 Datasheet

Current PartRFQ

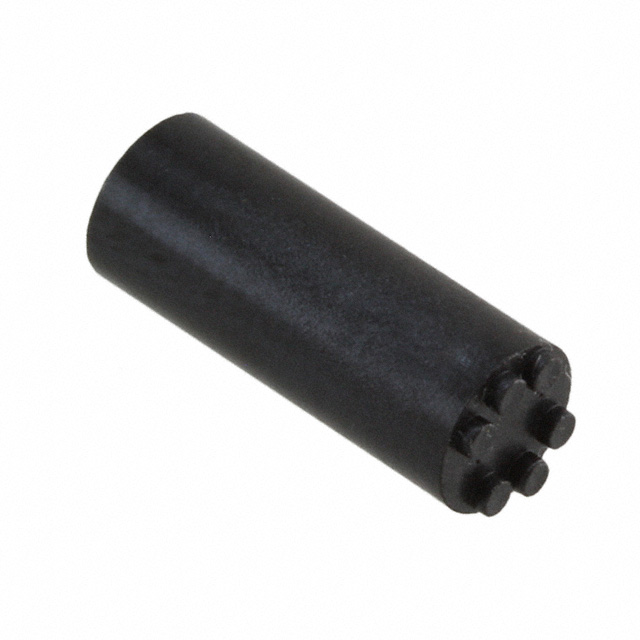

LTM-520

Bivar Inc.In Stock: 60817LTM-520 Datasheet

Parametric EquivalentRFQ

705820125

Würth ElektronikIn Stock: 3206705820125 Datasheet

Parametric EquivalentRFQ

705820130

Würth ElektronikIn Stock: 3392705820130 Datasheet

Parametric EquivalentRFQ

705820135

Würth ElektronikIn Stock: 1089705820135 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MLM1-512 is determined by the following critical parameters: LED type compatibility (T1/T1 3/4), color (black), and length tolerance. The substitute parts listed maintain compatibility with these core specifications while permitting variations in material composition and manufacturer source.

Primary Substitution Criteria:

• LED Type: T1, T1 3/4 (mandatory match)
• Color: Black (mandatory match)
• Length: 0.512" ± tolerance range (0.492" to 0.531" acceptable)
• RoHS Compliance: ROHS3 Compliant (mandatory)
• Material: Nylon or equivalent crystalline polymer (functionally equivalent)

The substitute parts are grouped into two categories: direct dimensional equivalents (matching 0.512" length) and near-equivalent alternatives (within ±0.019" length variation). All substitutes maintain the same LED type, color specification, and regulatory compliance status.

Parameter Comparison

Engineering Selection Recommendations

Direct Equivalent (Recommended Primary Substitute): The 705820130 (Würth Elektronik) provides exact dimensional equivalence to the MLM1-512, matching the 0.512" (13.00mm) length specification. Both components share identical LED type, color, and RoHS3 compliance status. This part is suitable for direct substitution in applications where the original MLM1-512 is unavailable.

Secondary Equivalent (Same Manufacturer): The LTM-520 (Bivar Inc.) maintains manufacturer continuity while introducing a 0.008" (0.21mm) length increase to 0.520" (13.21mm). Material composition changes from nylon to crystalline polymer, which maintains functional equivalence for LED standoff applications. This substitute is appropriate when supply from the original manufacturer is constrained.

Alternative Length Options: The 705820125 (0.492" length) and 705820135 (0.531" length) provide dimensional alternatives within the acceptable tolerance range. These parts are suitable for applications where LED height adjustment is permissible within the design envelope. Both maintain nylon material composition and full regulatory compliance.

All substitute parts carry Active product status and ROHS3 compliance certification, confirming ongoing availability and regulatory alignment with the original MLM1-512 specification.

Frequently Asked Questions (FAQ)

Q: Can the LTM-520 replace the MLM1-512 in all applications? A: The LTM-520 is functionally equivalent with a 0.008" length difference. Substitution is valid where this dimensional variance does not affect LED positioning or circuit board clearance requirements. Both parts maintain T1/T1 3/4 LED compatibility and identical color specification.

Q: What is the material difference between MLM1-512 and LTM-520? A: The MLM1-512 uses nylon material, while the LTM-520 uses crystalline polymer. Both materials provide equivalent mechanical and thermal properties for LED standoff applications and maintain the same regulatory compliance status.

Q: Are the Würth Elektronik parts (705820125, 705820130, 705820135) direct substitutes? A: The 705820130 is a direct dimensional equivalent at 0.512" length. The 705820125 and 705820135 provide alternative heights at 0.492" and 0.531" respectively. All three parts maintain nylon material composition, T1/T1 3/4 LED compatibility, and ROHS3 compliance. Selection depends on whether the application permits height variation.

Q: Do all substitute parts have the same moisture sensitivity rating? A: The MLM1-512 specifies MSL 1 (Unlimited). The Würth Elektronik substitutes (705820125, 705820130, 705820135) list MSL as Not Applicable. The LTM-520 maintains MSL 1 (Unlimited) matching the original part. This difference does not affect substitution validity for standard assembly environments.

Q: What is the length tolerance range for acceptable substitutes? A: Substitute parts range from 0.492" to 0.531" in length, representing a ±0.019" variation from the nominal 0.512" specification. Selection within this range is determined by specific application requirements for LED height positioning.

Q: Are all substitute parts ROHS3 compliant? A: Yes. All listed substitute parts (LTM-520, 705820125, 705820130, 705820135) carry ROHS3 Compliant certification, matching the regulatory status of the MLM1-512.

Q: Can I use 705820125 or 705820135 if the application has strict height requirements? A: The 705820125 (0.492") and 705820135 (0.531") introduce height variations of -0.020" and +0.019" respectively from the MLM1-512 nominal dimension. Use these parts only in applications where LED standoff height adjustment is acceptable within the design specification.
