MLE-105-01-G-DV-TR Equivalent & Substitute Parts

Part Overview

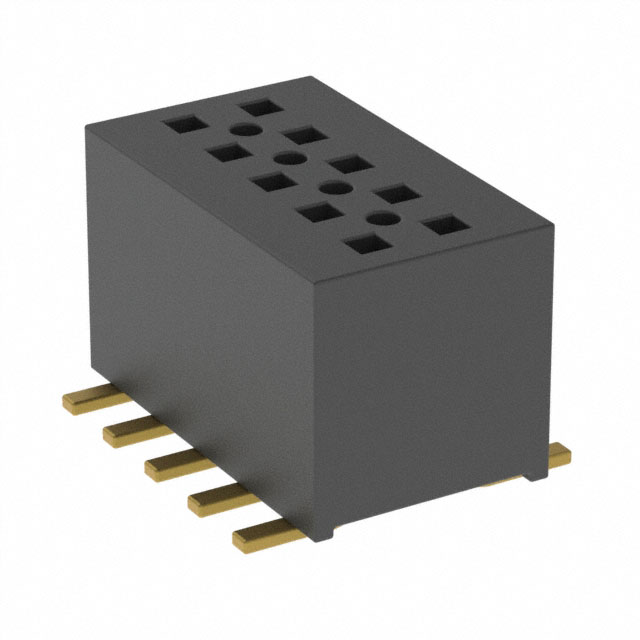

The MLE-105-01-G-DV-TR is a 10 Position Receptacle Connector from Samtec Inc.'s Tiger Eye™ MLE series, designed for board-to-board applications with 0.039" (1.00mm) pitch spacing. This surface mount connector features gold-plated female sockets with a current rating of 2.9A per contact and operates across -55°C to 125°C. The part maintains Active product status with ROHS3 compliance and unlimited moisture sensitivity level (MSL 1). Equivalent and substitute parts are identified to support design flexibility, inventory optimization, and supply chain continuity for applications requiring identical electrical and mechanical performance characteristics.

Substiute Parts

MLE-105-01-G-DV-TR

Samtec Inc.In Stock: 957MLE-105-01-G-DV-TR Datasheet

Current PartRFQ

MLE-105-01-G-DV-A-K-TR

Samtec Inc.In Stock: 1784MLE-105-01-G-DV-A-K-TR Datasheet

SimilarRFQ

MLE-105-01-G-DV-K-TR

Samtec Inc.In Stock: 4647MLE-105-01-G-DV-K-TR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the MLE-105-01-G-DV-TR are identified based on strict equivalence across all critical electrical and mechanical parameters. Substitution validity is determined by matching the following parameters: connector type (Receptacle), contact type (Female Socket), number of positions (10), mating pitch (0.039" / 1.00mm), row spacing (0.039" / 1.00mm), mounting type (Surface Mount), termination method (Solder), contact finish (Gold), current rating (2.9A per contact), voltage rating (310VAC), operating temperature range (-55°C ~ 125°C), insulation material (LCP), contact material (Beryllium Copper), and compliance status (ROHS3 Compliant, MSL 1).

The identified substitutes MLE-105-01-G-DV-A-K-TR and MLE-105-01-G-DV-K-TR maintain complete electrical and mechanical compatibility with the primary part number while offering variations in assembly features and inventory availability.

Parameter Comparison

Engineering Selection Recommendations

All three part numbers—MLE-105-01-G-DV-TR, MLE-105-01-G-DV-A-K-TR, and MLE-105-01-G-DV-K-TR—maintain Active product status with identical electrical and mechanical specifications. Each part is ROHS3 compliant and carries MSL 1 rating, ensuring equivalent performance in board-to-board connector applications requiring 10-position, 1.00mm pitch receptacle configurations.

Selection between these parts should be based on assembly process requirements and inventory availability. MLE-105-01-G-DV-A-K-TR includes board guide and pick-and-place features, supporting automated assembly workflows. MLE-105-01-G-DV-K-TR includes pick-and-place capability. MLE-105-01-G-DV-TR provides the base configuration without these assembly enhancements. Inventory levels vary across the three options, with MLE-105-01-G-DV-K-TR offering the highest stock availability at 4539 pieces.

Frequently Asked Questions (FAQ)

Q: Are MLE-105-01-G-DV-A-K-TR and MLE-105-01-G-DV-K-TR electrically and mechanically interchangeable with MLE-105-01-G-DV-TR?

A: Yes. All three part numbers share identical electrical ratings (2.9A per contact, 310VAC), mechanical dimensions (10 positions, 0.039" pitch, 2-row configuration), contact materials (Beryllium Copper with gold finish), operating temperature range (-55°C ~ 125°C), and compliance certifications (ROHS3, MSL 1). They are direct substitutes for applications requiring these specifications.

Q: What is the difference between these three part numbers?

A: The primary differences are assembly features and inventory levels. MLE-105-01-G-DV-A-K-TR includes board guide and pick-and-place features. MLE-105-01-G-DV-K-TR includes pick-and-place capability. MLE-105-01-G-DV-TR is the base configuration. All three are packaged in Tape & Reel format and share identical electrical and mechanical performance.

Q: Can I use MLE-105-01-G-DV-K-TR as a substitute if my design specifies MLE-105-01-G-DV-TR?

A: Yes. The parts are electrically and mechanically equivalent. The board-to-board connection, contact performance, and environmental ratings are identical. Assembly features differ, but these do not affect connector function in the application.

Q: Are there any compliance or certification differences between these parts?

A: No. All three parts carry identical compliance certifications: ROHS3 Compliant, MSL 1 (Unlimited), ECCN EAR99, and HTSUS 8536.69.4040. They meet the same regulatory and environmental standards.

Q: Which part should I select for high-volume automated assembly?

A: MLE-105-01-G-DV-A-K-TR or MLE-105-01-G-DV-K-TR are recommended for automated assembly due to their pick-and-place features. MLE-105-01-G-DV-A-K-TR additionally includes board guide functionality for enhanced placement accuracy.
