MLE-105-01-G-DV-A-P Equivalent & Substitute Parts

Part Overview

The MLE-105-01-G-DV-A-P is a 10-position receptacle connector from Samtec Inc.'s Tiger Eye™ MLE series, designed for board-to-board applications with 0.039" (1.00mm) pitch spacing. This surface mount connector features gold-plated female socket contacts rated for 2.9A per contact at 310VAC, with operating temperature range of -55°C to 125°C.

The MLE-105-01-G-DV-A-P is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity and ensure component availability for production and field replacement applications.

Substiute Parts

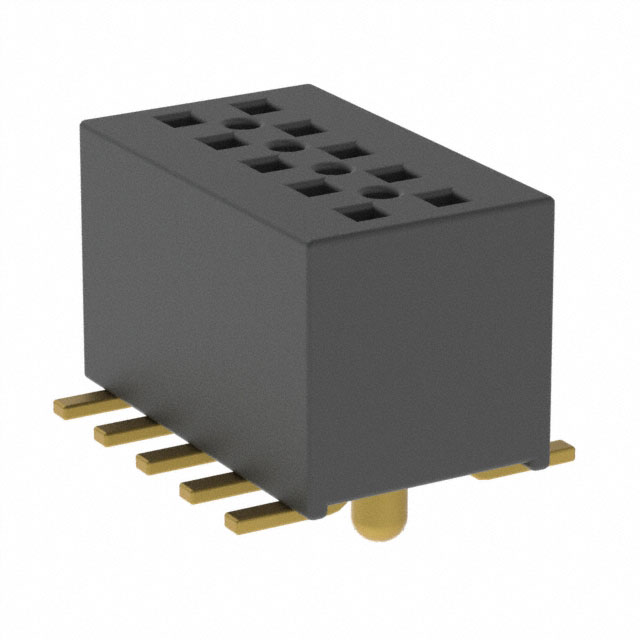

MLE-105-01-G-DV-A-P

Samtec Inc.In Stock: 1056MLE-105-01-G-DV-A-P Datasheet

Current PartRFQ

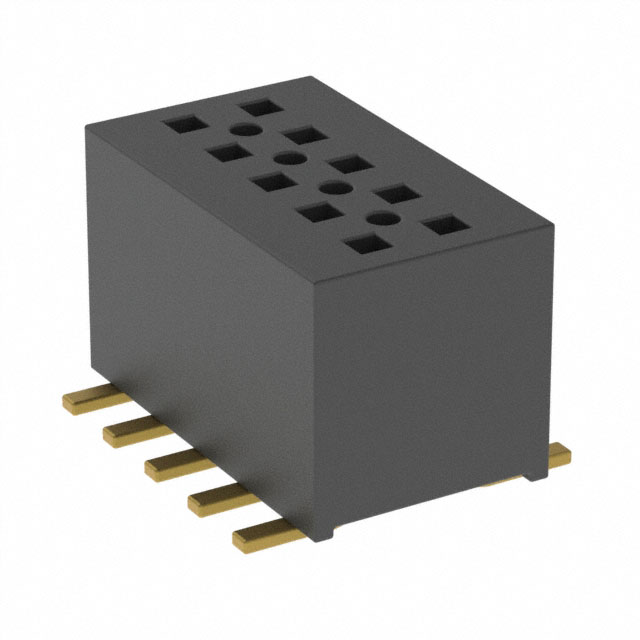

MLE-105-01-G-DV

Samtec Inc.In Stock: 1056MLE-105-01-G-DV Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MLE-105-01-G-DV-A-P is determined by strict equivalence across the following critical parameters:

Connector type (Receptacle), contact type (Female Socket), number of positions (10), pitch spacing (0.039" / 1.00mm), row configuration (2 rows at 0.039" spacing), mounting method (Surface Mount), termination type (Solder), fastening mechanism (Push-Pull), contact finish (Gold), current rating (2.9A per contact), voltage rating (310VAC), operating temperature range (-55°C to 125°C), insulation material (Liquid Crystal Polymer), and contact material (Beryllium Copper).

Parts meeting all these parameters are classified as direct substitutes within the Tiger Eye™ MLE series.

Parameter Comparison

Engineering Selection Recommendations

The MLE-105-01-G-DV is the direct substitute for the obsolete MLE-105-01-G-DV-A-P. Both parts share identical electrical and mechanical specifications across all critical parameters. The primary distinction is product status: MLE-105-01-G-DV-A-P is obsolete, while MLE-105-01-G-DV is active and currently in production.

Both parts maintain ROHS3 compliance and REACH unaffected status, ensuring regulatory alignment. The substitute part is available in tube packaging and has confirmed inventory availability.

Frequently Asked Questions (FAQ)

Q: Are MLE-105-01-G-DV-A-P and MLE-105-01-G-DV electrically and mechanically identical?

A: Yes. Both parts share identical specifications for connector type, contact configuration, pitch spacing, current rating, voltage rating, operating temperature range, contact material, and finish specifications.

Q: What is the primary reason to transition from MLE-105-01-G-DV-A-P to MLE-105-01-G-DV?

A: MLE-105-01-G-DV-A-P is classified as obsolete. MLE-105-01-G-DV is the active production equivalent with confirmed availability and ongoing manufacturer support.

Q: Are there packaging differences between these parts?

A: MLE-105-01-G-DV-A-P packaging is not specified. MLE-105-01-G-DV is supplied in tube packaging.

Q: Do both parts meet the same compliance standards?

A: Yes. Both parts are ROHS3 compliant, REACH unaffected, and carry identical ECCN and HTSUS classifications.

Q: Can MLE-105-01-G-DV be used as a direct replacement in existing designs?

A: Yes. Identical electrical and mechanical specifications ensure direct compatibility in all applications where MLE-105-01-G-DV-A-P was specified.
