MJTP1122BTR Equivalent & Substitute Parts

Part Overview

The MJTP1122BTR is an APEM Inc. tactile switch featuring SPST-NO circuit configuration with 0.05A @ 12VDC contact rating. This surface mount component operates in the -20°C to 70°C temperature range with 160gf operating force and 100,000 cycle mechanical life. The part is Active status and ROHS3 compliant. Substitute parts are identified to address application requirements including extended temperature ranges, higher contact ratings, enhanced ingress protection, or alternative packaging formats while maintaining core SPST-NO switching functionality.

Substiute Parts

MJTP1122BTR

APEM Inc.In Stock: 978MJTP1122BTR Datasheet

Current PartRFQ

7914G-1-000

Bourns Inc.In Stock: 9157914G-1-000 Datasheet

SimilarRFQ

7914G-1-000E

Bourns Inc.In Stock: 14407914G-1-000E Datasheet

SimilarRFQ

7914G-1-024E

Bourns Inc.In Stock: 14357914G-1-024E Datasheet

SimilarRFQ

7914G-1-032E

Bourns Inc.In Stock: 17807914G-1-032E Datasheet

SimilarRFQ

FSM1JELGTR

TE Connectivity ALCOSWITCH SwitchesIn Stock: 20743FSM1JELGTR Datasheet

SimilarRFQ

FSM1LPAS

TE Connectivity ALCOSWITCH SwitchesIn Stock: 1144FSM1LPAS Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts are grouped based on maintained electrical and mechanical compatibility within the SPST-NO tactile switch category. The primary substitution criteria are:

Core Compatibility Parameters:

• Circuit configuration: SPST-NO maintained across all substitutes
• Switch function: Off-Mom maintained across all substitutes
• Mounting type: Surface Mount maintained across all substitutes
• Actuator orientation: Top Actuated maintained across all substitutes
• Termination style: Gull Wing maintained across all substitutes
• RoHS3 compliance: Maintained across all substitutes

Allowed Variation Parameters:

• Contact rating voltage and current (0.05A @ 12VDC to 0.1A @ 16VDC)
• Operating temperature range (-55°C ~ 125°C extended capability)
• Actuator height (2.00mm to 4.19mm)
• Operating force (160gf to 300gf)
• Mechanical life (100,000 to 1,000,000 cycles)
• Outline dimensions (5.00mm x 5.00mm to 6.20mm x 6.20mm)
• Packaging format (Tape & Reel, Cut Tape, Tube, Bulk)
• Ingress protection (standard to IP67)

Parameter Comparison

Engineering Selection Recommendations

All substitute parts maintain Active product status and ROHS3 compliance, qualifying them for direct substitution within the SPST-NO tactile switch category.

Bourns 7914G Series (7914G-1-000, 7914G-1-000E, 7914G-1-024E, 7914G-1-032E): These parts provide higher contact rating (0.1A @ 16VAC/DC), extended operating temperature range (-55°C ~ 125°C), and IP67 ingress protection. Outline dimensions are reduced to 5.00mm x 5.00mm. Actuator height varies from 2.62mm to 4.19mm depending on variant. Operating force increases to 300gf. Packaging options include Tube, Cut Tape & Digi-Reel, and Tape & Reel formats.

TE Connectivity FSM1JELGTR: This part maintains identical contact rating (0.05A @ 12VDC) and outline dimensions (6.20mm x 6.20mm) as the MJTP1122BTR. Operating force matches at 160gf. Mechanical life extends to 1,000,000 cycles. Actuator height reduces to 2.00mm. Operating temperature range extends to -35°C ~ 85°C. Packaging is Tape & Reel format.

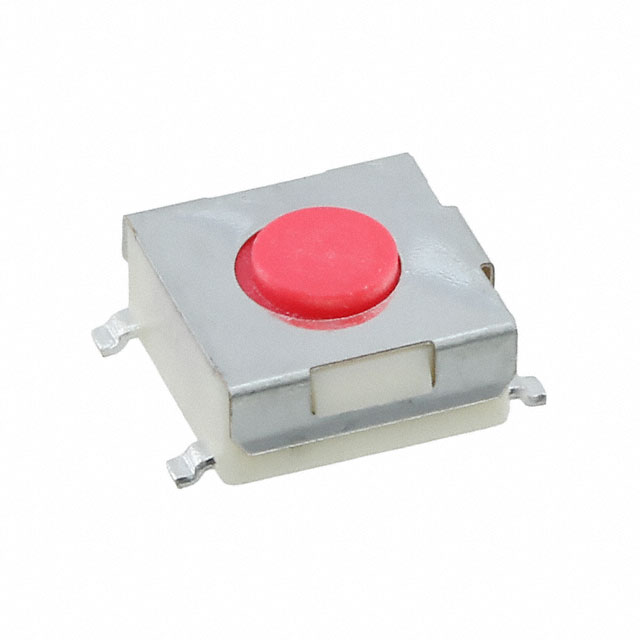

TE Connectivity FSM1LPAS: This part maintains outline dimensions (6.20mm x 6.00mm) and actuator height (3.10mm) similar to the MJTP1122BTR. Contact rating increases to 0.05A @ 24VDC. Operating force increases to 260gf. Mechanical life extends to 1,000,000 cycles. Operating temperature range extends to -40°C ~ 105°C. Packaging is Bulk format. This part includes a grounding pin feature.

Frequently Asked Questions (FAQ)

Q: Can the Bourns 7914G series replace the MJTP1122BTR in all applications?

A: The Bourns 7914G series maintains SPST-NO circuit configuration, surface mount mounting, top actuated orientation, and gull wing termination. However, outline dimensions reduce from 6.20mm x 6.20mm to 5.00mm x 5.00mm, and operating force increases from 160gf to 300gf. PCB layout and actuator force requirements must be verified before substitution.

Q: What is the primary difference between FSM1JELGTR and FSM1LPAS?

A: FSM1JELGTR maintains the 0.05A @ 12VDC contact rating with 2.00mm actuator height and Tape & Reel packaging. FSM1LPAS increases contact rating to 0.05A @ 24VDC, maintains 3.10mm actuator height, and uses Bulk packaging with an additional grounding pin feature.

Q: Are all substitute parts suitable for extended temperature applications?

A: The Bourns 7914G series supports -55°C ~ 125°C. FSM1JELGTR supports -35°C ~ 85°C. FSM1LPAS supports -40°C ~ 105°C. The original MJTP1122BTR operates -20°C ~ 70°C. Application temperature requirements must be matched to the appropriate substitute.

Q: Which substitute offers the longest mechanical life?

A: FSM1JELGTR and FSM1LPAS both provide 1,000,000 cycle mechanical life, compared to 100,000 cycles for the MJTP1122BTR and all Bourns 7914G variants.

Q: Do any substitutes provide ingress protection?

A: All Bourns 7914G variants (7914G-1-000, 7914G-1-000E, 7914G-1-024E, 7914G-1-032E) feature IP67 ingress protection. The MJTP1122BTR, FSM1JELGTR, and FSM1LPAS do not specify ingress protection ratings.

Q: What packaging options are available for high-volume production?
