MHS222 Equivalent & Substitute Parts

Part Overview

The MHS222 is a slide switch with DPDT (Double Pole Double Throw) configuration, rated for 200mA at 12V DC, designed for through-hole, right-angle mounting applications. This component features non-shorting contact timing (BBM), a 2.00mm actuator length, and silver-plated contacts. The MHS222 is classified as obsolete, making identification of compatible substitute parts essential for ongoing design support and procurement continuity.

Substiute Parts

MHS222

Nidec Components CorporationIn Stock: 1089MHS222 Datasheet

Current PartRFQ

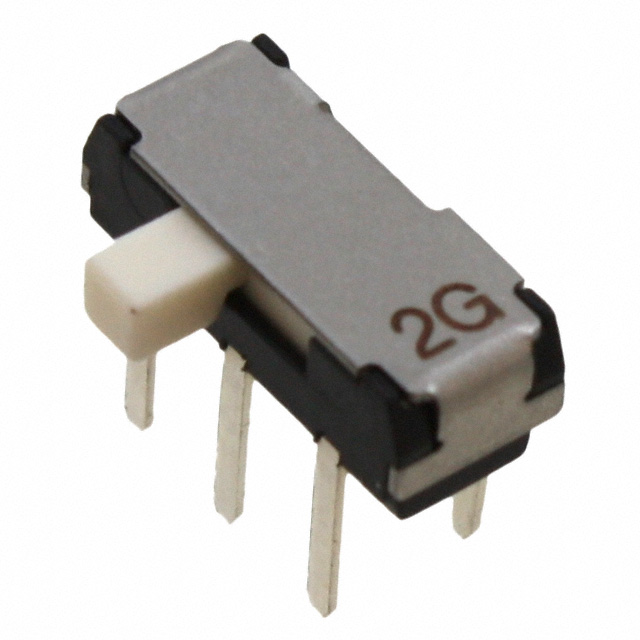

CL-SB-22C-11

Nidec Components CorporationIn Stock: 3018CL-SB-22C-11 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MHS222 is determined by strict equivalence across the following critical parameters:

• Circuit Configuration: Must be DPDT
• Current Rating: Must support 200mA (DC) minimum
• Voltage Rating: Must support 12V DC minimum
• Contact Timing: Must be Non-Shorting (BBM)
• Switch Function: Must be On-On
• Actuator Length: Must be 2.00mm
• Mounting Type: Must be Through Hole, Right Angle
• Termination Style: Must be PC Pin
• Contact Finish: Must be Silver

The CL-SB-22C-11 meets all mandatory substitution criteria. While this substitute part demonstrates enhanced electrical life (10,000 cycles versus 5,000 cycles) and an extended operating temperature range (-40°C ~ 85°C versus -10°C ~ 70°C), these represent improvements that do not compromise compatibility with applications designed for the MHS222.

Parameter Comparison

Engineering Selection Recommendations

The CL-SB-22C-11 is the direct substitute for the obsolete MHS222. Both components are manufactured by Nidec Components Corporation and maintain identical electrical and mechanical specifications across all critical parameters. The CL-SB-22C-11 carries active product status, ensuring long-term availability and supply chain continuity.

Both parts maintain ROHS3 compliance, satisfying regulatory requirements for new designs and legacy system support. The CL-SB-22C-11 offers extended operating temperature range and increased electrical life cycle rating, providing enhanced performance margins without requiring design modification.

Frequently Asked Questions (FAQ)

Q: Can the CL-SB-22C-11 be used as a direct replacement for the MHS222 in existing designs?

A: Yes. The CL-SB-22C-11 maintains identical electrical ratings (200mA, 12V DC), circuit configuration (DPDT), contact timing (Non-Shorting BBM), actuator dimensions (2.00mm), and mounting specifications (Through Hole, Right Angle, PC Pin termination). No design modification is required.

Q: What are the differences between the MHS222 and CL-SB-22C-11?

A: The primary differences are product status and performance enhancements. The MHS222 is obsolete; the CL-SB-22C-11 is active. The CL-SB-22C-11 provides extended operating temperature range (-40°C ~ 85°C versus -10°C ~ 70°C) and doubled electrical life (10,000 cycles versus 5,000 cycles). These represent improvements that do not affect compatibility.

Q: Are both parts RoHS compliant?

A: Yes. Both the MHS222 and CL-SB-22C-11 are ROHS3 compliant.

Q: What packaging is available for the CL-SB-22C-11?

A: The CL-SB-22C-11 is supplied in bulk packaging.

Q: Why is the MHS222 listed as obsolete?

A: The MHS222 has been discontinued by the manufacturer. The CL-SB-22C-11 represents the active equivalent product line and is the recommended solution for new procurement and design support.
