MF52F104F4150 NTC Thermistor Equivalent & Substitute Parts

Part Overview

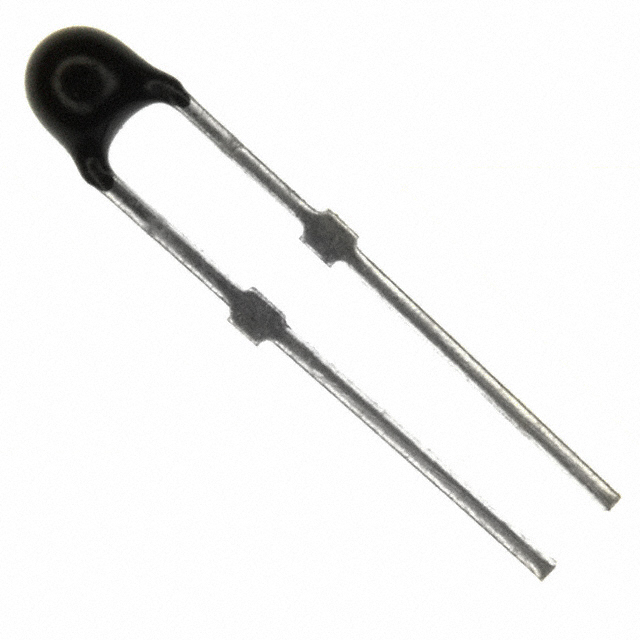

The MF52F104F4150 is an NTC thermistor manufactured by Cantherm, designed for temperature sensing applications requiring a 100kΩ resistance at 25°C. This component operates across a temperature range of -55°C to 125°C and is packaged as a through-hole bead thermistor. The part is currently active in production with ROHS3 compliance and REACH unaffected status. Substitute parts are identified when inventory constraints, lead time requirements, or application-specific operating temperature ranges necessitate alternative sourcing while maintaining core electrical and mechanical compatibility.

Substiute Parts

MF52F104F4150

CanthermIn Stock: 1051MF52F104F4150 Datasheet

Current PartRFQ

B57560G1104F000

EPCOS - TDK ElectronicsIn Stock: 1375B57560G1104F000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the MF52F104F4150 are identified based on the following criteria:

Electrical Compatibility:

• Resistance value at 25°C must be 100kΩ
• Resistance tolerance must be ±1% or better
• B value tolerance must be ±1% or better

Thermal Compatibility:

• Operating temperature range must encompass or exceed -55°C to 125°C
• Maximum power dissipation must be 50 mW or greater

Mechanical Compatibility:

• Mounting type must be through-hole
• Package form must be bead configuration

Regulatory Compliance:

• RoHS3 compliance required
• REACH unaffected status required

The B25/50 parameter (4150K for the main part) serves as a reference thermal coefficient. Substitute parts with alternative B-value specifications at different temperature points (B25/85, B25/100) remain functionally equivalent when the core 100kΩ @ 25°C specification and tolerance requirements are maintained.

Parameter Comparison

Engineering Selection Recommendations

Primary Part: MF52F104F4150

Select the MF52F104F4150 when:

• Standard temperature range of -55°C to 125°C is sufficient for the application
• Cantherm component availability and lead times are acceptable
• Inventory stock of 1015 units meets procurement requirements

Substitute Part: B57560G1104F000

The B57560G1104F000 from EPCOS - TDK Electronics is electrically and mechanically equivalent to the MF52F104F4150 for applications within the -55°C to 125°C range. This substitute provides:

• Identical 100kΩ resistance at 25°C with ±1% tolerance
• Identical ±1% B value tolerance
• Extended operating temperature capability to 200°C, enabling use in higher-temperature applications
• ROHS3 compliance and REACH unaffected status matching the primary part
• Through-hole bead package compatible with existing PCB designs
• Inventory availability of 1290 units

The B57560G1104F000 is suitable for direct substitution in applications where the primary part is unavailable or when extended temperature operation to 200°C is required.

Frequently Asked Questions (FAQ)

Q: Can the B57560G1104F000 be used as a direct replacement for the MF52F104F4150?

A: Yes. Both parts share identical electrical specifications (100kΩ @ 25°C, ±1% tolerance, ±1% B value tolerance), identical power ratings (50 mW maximum), and compatible through-hole bead packaging. Both maintain ROHS3 compliance and REACH unaffected status. The B57560G1104F000 operates to 200°C versus 125°C for the MF52F104F4150, making it suitable for applications within the standard temperature range and beyond.

Q: What is the difference between the B25/50 and B25/85 parameters?

A: These parameters represent the B-value (thermal coefficient) measured at different temperature points. B25/50 indicates the B-value between 25°C and 50°C; B25/85 indicates the B-value between 25°C and 85°C. Both characterize the thermistor's temperature response. The MF52F104F4150 specifies B25/50 at 4150K, while the B57560G1104F000 specifies B25/85 at 4072K and B25/100 at 4092K. These different measurement points do not affect substitution compatibility when the core 100kΩ @ 25°C specification and tolerance requirements are met.

Q: Are there physical size differences between the bead and bead glass packages?

A: Both parts use bead form factor suitable for through-hole mounting. The B57560G1104F000 specifies a glass bead construction with a lead wire length of 2.64" (67.00mm). The MF52F104F4150 lead wire length is not specified in the provided data. Verify lead wire length compatibility with your specific PCB design before substitution.

Q: Which part should I select for applications requiring operation above 125°C?

A: The B57560G1104F000 is the appropriate choice for applications requiring operation up to 200°C. The MF52F104F4150 is rated to 125°C maximum and is not suitable for higher-temperature applications.

Q: Do both parts meet the same regulatory requirements?

A: Yes. Both the MF52F104F4150 and B57560G1104F000 are ROHS3 compliant and REACH unaffected, meeting identical regulatory standards for component selection.
