Equivalent & Substitute Parts for MEV1D2405DC

Part Overview

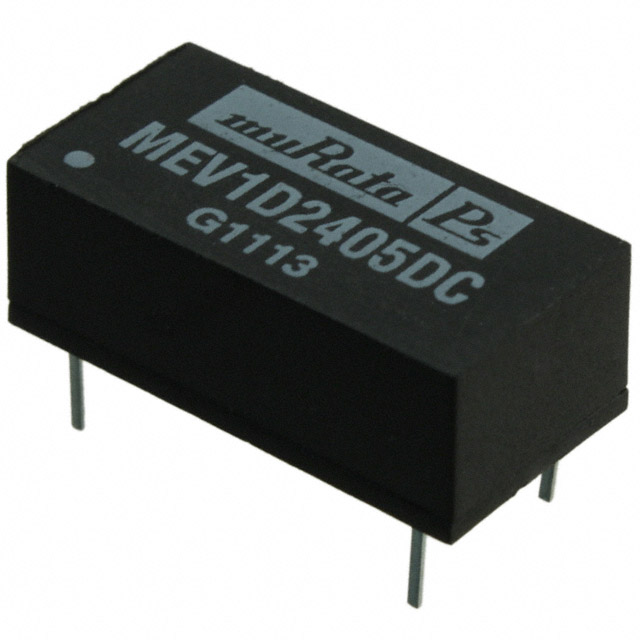

The MEV1D2405DC from Murata Power Solutions Inc. is an isolated module DC-DC converter, designed with dual outputs of +5V and -5V at 100mA each, supporting an input voltage range of 21.6V to 26.4V and providing 1W output power. It features high voltage isolation (3 kV), through-hole mounting, and compact dimensions. The product status is marked as obsolete, necessitating the identification of suitable alternative models to ensure continuity in design, manufacturing, and repair contexts.

Substiute Parts

MEV1D2405DC

Murata Power Solutions Inc.In Stock: 568011MEV1D2405DC Datasheet

Current PartRFQ

MEV1D2405SC

Murata Power Solutions Inc.In Stock: 1133MEV1D2405SC Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is permitted between products that match strictly on the following parameters: input voltage range, output voltages, maximum output current, isolation voltage, mounting type, package/case, operating temperature range, efficiency, application, compliance status, and series. In this category, differences in packaging and physical dimensions must be considered for assembly compatibility. Only parts providing the same electrical characteristics and compliance certifications listed in the input criteria are included.

Parameter Comparison

Engineering Selection Recommendations

Selection of substitute components must be based on equivalence in product status, environmental compliance (RoHS, REACH), and regulatory certifications (ECCN, HTSUS). Both MEV1D2405DC and MEV1D2405SC are obsolete, RoHS compliant, REACH unaffected, and belong to the same series. Package type and pin configuration must be confirmed against mechanical and layout requirements.

Frequently Asked Questions (FAQ)

Q1: What are the main electrical criteria for substituting MEV1D2405DC?
A1: Main criteria are input voltage range, output voltages, output current, isolation voltage, efficiency, operating temperature, series, and compliance certifications.

Q2: Are substitute parts in the same package format?
A2: MEV1D2405DC uses a 14-DIP module with 6 leads; MEV1D2405SC uses a 7-SIP module with 5 leads. Ensure mechanical and PCB compatibility when substituting.

Q3: Does RoHS or REACH compliance differ between substitutes?
A3: MEV1D2405DC is RoHS compliant; MEV1D2405SC is ROHS3 compliant. Both are REACH unaffected.

Q4: Are all substitute parts obsolete?
A4: Both provided parts, MEV1D2405DC and MEV1D2405SC, are marked as obsolete.

Q5: Is performance identical across substitute models?
A5: Electrical parameters are equivalent as listed. Packaging and mechanical layout differ.

Q6: What should be checked before component replacement?
A6: Confirm all critical electrical parameters and assess package differences for assembly compatibility.
