C&K MDS005C Equivalent & Substitute Parts

Part Overview

The C&K MDS005C is a snap-action SPDT switch rated for 300mA at 30V DC with a straight lever actuator and through-hole right-angle mounting. This component is classified as obsolete, making identification of compatible alternatives essential for ongoing production and maintenance applications. The MDS005C remains functionally viable but is no longer actively manufactured, necessitating evaluation of current-production equivalents that maintain electrical and mechanical compatibility.

Substiute Parts

MDS005C

C&KIn Stock: 728MDS005C Datasheet

Current PartRFQ

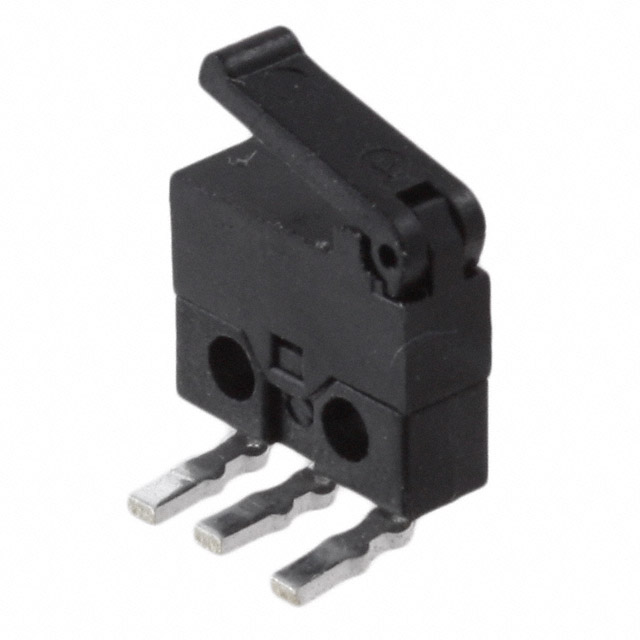

MDS6500AL02RL

C&KIn Stock: 2992MDS6500AL02RL Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The MDS6500AL02RL qualifies as a direct substitute for the MDS005C based on the following critical parameters:

Electrical Compatibility: Both parts maintain identical SPDT circuit configuration, 300mA current rating, and 30V DC voltage rating. Switch function (On-Momentary) and actuation characteristics (50gf operating force, 3.000gf release force) are preserved.

Mechanical Compatibility: Both employ straight lever actuators with through-hole right-angle mounting and PC pin termination, ensuring direct PCB integration without redesign.

Lifecycle & Compliance: The MDS6500AL02RL is active-production status, addressing the obsolescence of the MDS005C. Both maintain RoHS3 compliance, MSL 1 rating, and REACH unaffected status, satisfying regulatory requirements.

Operational Envelope: The MDS6500AL02RL extends the operating temperature range to -25°C to 70°C, providing broader environmental tolerance while maintaining all other electrical and mechanical specifications.

Parameter Comparison

Engineering Selection Recommendations

The MDS6500AL02RL is the appropriate selection for applications currently using the obsolete MDS005C. The substitute maintains full electrical and mechanical compatibility across all specified parameters. The extended operating temperature range (-25°C to 70°C versus -10°C to 60°C) provides enhanced environmental tolerance without compromising performance in the original operating envelope.

Both components satisfy identical regulatory requirements: RoHS3 compliance, MSL 1 moisture sensitivity, and REACH unaffected status. The transition from obsolete to active production status ensures long-term supply chain viability and component availability.

Frequently Asked Questions (FAQ)

Q: Can the MDS6500AL02RL directly replace the MDS005C without PCB modification?

A: Yes. Both components share identical mounting type (through-hole right-angle), termination style (PC pin), and physical actuator configuration (straight lever). No PCB redesign is required.

Q: Are the electrical ratings identical between these parts?

A: Yes. Both maintain 300mA DC current rating, 30V DC voltage rating, SPDT circuit configuration, and On-Momentary switch function. Operating force (50gf) and release force (3.000gf) are identical.

Q: What is the primary difference between these components?

A: The MDS6500AL02RL is active-production while the MDS005C is obsolete. Additionally, the MDS6500AL02RL provides an extended operating temperature range (-25°C to 70°C) compared to the MDS005C (-10°C to 60°C).

Q: Do both parts meet current RoHS and REACH requirements?

A: Yes. The MDS005C is RoHS Compliant and the MDS6500AL02RL is ROHS3 Compliant. Both maintain REACH Unaffected status and MSL 1 moisture sensitivity rating.

Q: What packaging is available for the MDS6500AL02RL?

A: The MDS6500AL02RL is supplied in bulk packaging, with 2902 pieces currently in stock as new original inventory.
