MDLS-40466-SS-G-HV-LED-04-G Equivalent & Substitute Parts

Part Overview

The MDLS-40466-SS-G-HV-LED-04-G is a character display module manufactured by Varitronix, featuring a 40 x 4 format with 160 total characters. This transflective STN (Super-Twisted Nematic) LCD module with LED green backlight is designed for parallel interface applications requiring a 5V supply. The product is currently listed as obsolete, making identification of equivalent and substitute parts essential for ongoing system support and component procurement.

Substiute Parts

MDLS-40466-SS-G-HV-LED-04-G

VaritronixIn Stock: 900MDLS-40466-SS-G-HV-LED-04-G Datasheet

Current PartRFQ

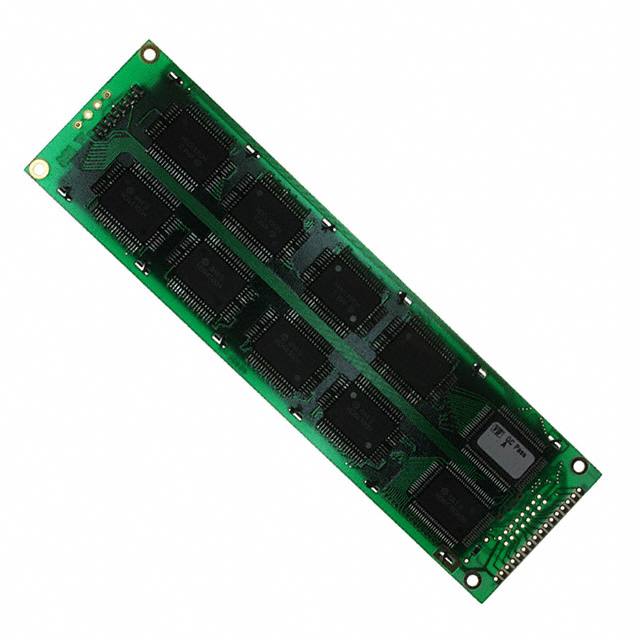

MDLS-40466-GHVLED4G

VaritronixIn Stock: 865MDLS-40466-GHVLED4G Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MDLS-40466-SS-G-HV-LED-04-G is determined by strict equivalence across the following critical parameters:

Display specifications: 40 x 4 format with 160 characters, 5 x 8 dot character matrix, STN display type, and transflective display mode must remain constant.

Electrical interface: Parallel interface with 5V supply voltage is mandatory for direct substitution.

Physical dimensions: Outline dimensions of 196.00mm x 56.00mm x 11.30mm and viewing area of 154.40mm x 27.60mm must be maintained.

Backlight configuration: LED green backlight is required.

Operating environment: Temperature range of -10°C ~ 60°C must be supported.

The substitute part MDLS-40466-GHVLED4G meets all these criteria and belongs to the same MDL(S)-40466 series, confirming its status as a direct equivalent.

Parameter Comparison

Engineering Selection Recommendations

The MDLS-40466-GHVLED4G is the direct equivalent substitute for the obsolete MDLS-40466-SS-G-HV-LED-04-G. Both parts are manufactured by Varitronix and share identical electrical, mechanical, and display specifications across all critical parameters.

The substitute part offers the advantage of active product status, ensuring continued availability and support. Additionally, the MDLS-40466-GHVLED4G carries RoHS compliance certification, meeting modern regulatory requirements for electronic components.

Both parts are classified under ECCN EAR99 and HTSUS 9013.80.9100, confirming equivalent export and tariff classification.

Frequently Asked Questions (FAQ)

Q: Can MDLS-40466-GHVLED4G be used as a direct replacement for MDLS-40466-SS-G-HV-LED-04-G?

A: Yes. Both parts are identical in display format (40 x 4), character specifications (5 x 8 dots), display type (STN transflective), backlight configuration (LED green), electrical interface (parallel, 5V), physical dimensions, and operating temperature range. No circuit modifications are required.

Q: What is the difference between these two part numbers?

A: The primary difference is product status. MDLS-40466-SS-G-HV-LED-04-G is obsolete, while MDLS-40466-GHVLED4G is active. The substitute part also carries RoHS compliance certification. The part numbers reflect different packaging and designation conventions from Varitronix, but the functional specifications are identical.

Q: Are there packaging differences between these parts?

A: The original part number does not specify packaging details. The substitute part MDLS-40466-GHVLED4G is supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: What are the key parameters that must match for substitution?

A: Display format (40 x 4), character matrix (5 x 8 dots), display type (STN), display mode (transflective), backlight (LED green), interface (parallel), supply voltage (5V), physical dimensions (196.00mm x 56.00mm x 11.30mm), and operating temperature range (-10°C ~ 60°C) must all remain constant for direct substitution.

Q: Is the substitute part compliant with current regulations?

A: Yes. MDLS-40466-GHVLED4G is RoHS compliant and carries the same ECCN and HTSUS classifications as the original part, confirming regulatory equivalence.
