MCC250-14IO1 Equivalent & Substitute Parts

Part Overview

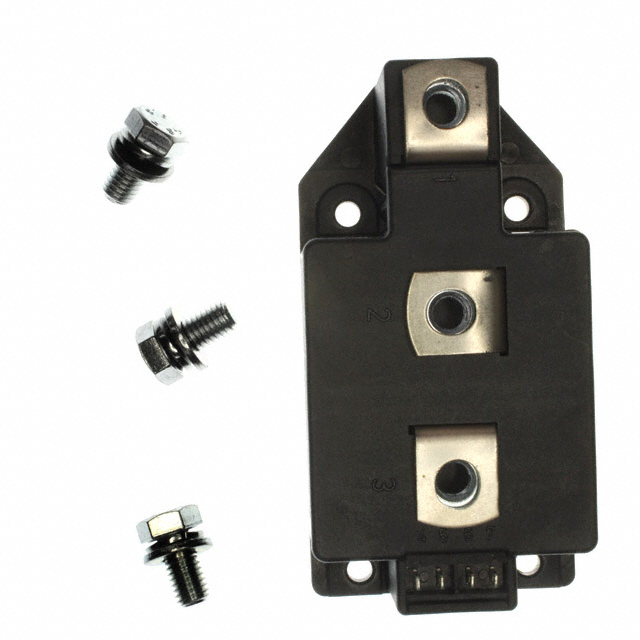

The MCC250-14IO1 is a dual SCR thyristor module rated for 1.4 kV off-state voltage with 450 A RMS on-state current capacity. This component features series connection architecture with all SCRs mounted on a Y2-DCB chassis mount package. The part is classified as obsolete, making identification of suitable substitute components essential for ongoing system support and new design implementations.

Substiute Parts

MCC250-14IO1

IXYSIn Stock: 771MCC250-14IO1 Datasheet

Current PartRFQ

MCC310-14IO1

IXYSIn Stock: 100181MCC310-14IO1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MCC250-14IO1 is determined by the following critical electrical and mechanical parameters:

• Voltage Rating: Off-state voltage must remain at 1.4 kV to maintain system voltage compatibility
• Current Capacity: On-state RMS current rating must meet or exceed 450 A
• Gate Trigger Characteristics: Gate trigger voltage (Vgt) and current (Igt) must remain within 2 V and 150 mA respectively
• Hold Current: Must not exceed 150 mA
• Structure: Series connection architecture with dual SCRs must be preserved
• Mounting Configuration: Chassis mount requirement must be maintained
• Operating Temperature: -40°C to 140°C range must be supported

The MCC310-14IO1 qualifies as a direct substitute based on matching all critical parameters while providing enhanced current capacity and improved product status.

Parameter Comparison

Engineering Selection Recommendations

The MCC310-14IO1 serves as the direct substitute for the obsolete MCC250-14IO1. Selection is based on the following factors:

Product Status: The MCC250-14IO1 is classified as obsolete, while the MCC310-14IO1 maintains active product status with confirmed inventory availability (100,099 pieces in stock versus 750 pieces for the obsolete part).

Electrical Compatibility: All critical electrical parameters align between the two components. The MCC310-14IO1 provides higher current capacity ratings (500 A RMS versus 450 A RMS) and improved surge current handling (9200A/9800A versus 9000A/9600A), making it suitable for applications requiring the original specifications.

Regulatory Compliance: The MCC310-14IO1 achieves ROHS3 compliance and REACH unaffected status, whereas the MCC250-14IO1 is RoHS non-compliant. This compliance improvement is significant for applications subject to environmental regulations.

Mechanical Compatibility: Both components maintain identical mounting configurations (chassis mount) and package architecture (Y2-DCB / Module), ensuring mechanical interchangeability in existing designs.

Frequently Asked Questions (FAQ)

Q: Can the MCC310-14IO1 directly replace the MCC250-14IO1 in existing applications?

A: Yes. The MCC310-14IO1 meets all critical electrical parameters of the MCC250-14IO1, including voltage rating (1.4 kV), gate trigger characteristics (2 V / 150 mA), and hold current (150 mA). The higher current capacity of the substitute component does not create compatibility issues in applications designed for the original part.

Q: What is the difference in current handling between these two parts?

A: The MCC310-14IO1 provides 500 A RMS on-state current capacity compared to 450 A RMS for the MCC250-14IO1. This represents a 50 A increase in continuous current rating. Non-repetitive surge current ratings also increase from 9000A/9600A to 9200A/9800A at 50Hz and 60Hz respectively.

Q: Are there packaging differences between the MCC250-14IO1 and MCC310-14IO1?

A: Both components use chassis mount configurations. The MCC250-14IO1 specifies Y2-DCB packaging, while the MCC310-14IO1 is designated as a Module package type. Both maintain the same mechanical mounting interface and thermal characteristics required for series connection dual SCR applications.

Q: What compliance improvements does the MCC310-14IO1 offer?

A: The MCC310-14IO1 achieves ROHS3 compliance and carries REACH unaffected status. The MCC250-14IO1 is RoHS non-compliant. This makes the MCC310-14IO1 suitable for applications subject to environmental and regulatory requirements in regions enforcing RoHS directives.

Q: Is the MCC310-14IO1 available for immediate procurement?

A: Yes. The MCC310-14IO1 is classified as an active product with 100,099 pieces in stock, providing reliable supply availability. The MCC250-14IO1, being obsolete with limited inventory (750 pieces), presents supply chain risk for new designs or ongoing production.
