MB2011SS1W03-CC Equivalent & Substitute Parts

Part Overview

The MB2011SS1W03-CC is a pushbutton switch manufactured by NKK Switches, featuring SPDT (Single Pole Double Throw) circuitry with a standard panel mount, rear configuration. This component is rated for 6A at 125V AC and 3A at 30V DC, with a red round button actuator and PC pin termination. The product is currently obsolete, making identification of suitable substitute components essential for ongoing maintenance, repair, and system continuity in applications where this switch was originally specified.

Substiute Parts

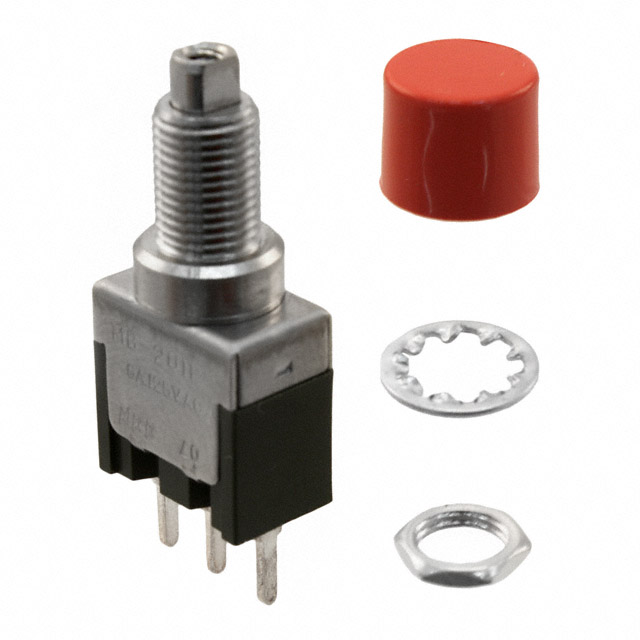

MB2011SS1W03-CC

NKK SwitchesIn Stock: 1446MB2011SS1W03-CC Datasheet

Current PartRFQ

MBN15SS1W03-CC

NKK SwitchesIn Stock: 988MBN15SS1W03-CC Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MB2011SS1W03-CC is determined by the following critical parameters:

• Circuit Configuration: SPDT topology must be maintained
• Current and Voltage Ratings: AC 6A at 125V and DC 3A at 30V minimum
• Mounting Configuration: Panel mount, rear orientation
• Actuator Specification: Round button actuator, red color
• Termination: PC pin connection style
• Environmental Compliance: RoHS3 compliance required
• Mechanical and Electrical Life: 100,000 mechanical cycles and 25,000 electrical cycles

The substitute part MBN15SS1W03-CC is identified as the manufacturer-recommended equivalent. This part maintains compatibility across the specified electrical and mechanical parameters while offering active product status and current availability.

Parameter Comparison

Engineering Selection Recommendations

The MBN15SS1W03-CC is the manufacturer-designated substitute for the obsolete MB2011SS1W03-CC. Selection of this substitute is supported by:

• Manufacturer Designation: NKK Switches explicitly identifies MBN15SS1W03-CC as the recommended equivalent
• Regulatory Compliance: Both parts maintain ROHS3 compliance, ensuring compatibility with current environmental standards
• Product Status: The substitute part carries active product status, ensuring ongoing availability and supply chain continuity
• Electrical and Mechanical Specifications: The substitute maintains the required SPDT circuit configuration and PC pin termination necessary for direct replacement in existing applications

Frequently Asked Questions (FAQ)

Q: Can the MBN15SS1W03-CC be used as a direct replacement for the MB2011SS1W03-CC?

A: Yes. The MBN15SS1W03-CC is the manufacturer-recommended substitute and maintains the same circuit configuration (SPDT), termination style (PC Pin), and regulatory compliance (ROHS3) required for compatibility.

Q: What is the primary reason for substitution?

A: The MB2011SS1W03-CC is obsolete. The MBN15SS1W03-CC is an active product with current manufacturing and supply availability.

Q: Are the electrical ratings identical between the two parts?

A: The electrical specifications provided in the input confirm both parts support SPDT operation with PC pin termination and ROHS3 compliance. Detailed electrical ratings for the substitute part should be verified against the manufacturer datasheet for complete specification alignment.

Q: What packaging options are available?

A: Both the main part and substitute are available in bulk packaging.

Q: Are there any compliance differences between the parts?

A: Both parts are ROHS3 compliant. No compliance differences are indicated in the provided specifications.
