MB2011LS1W03-CA Equivalent & Substitute Parts

Part Overview

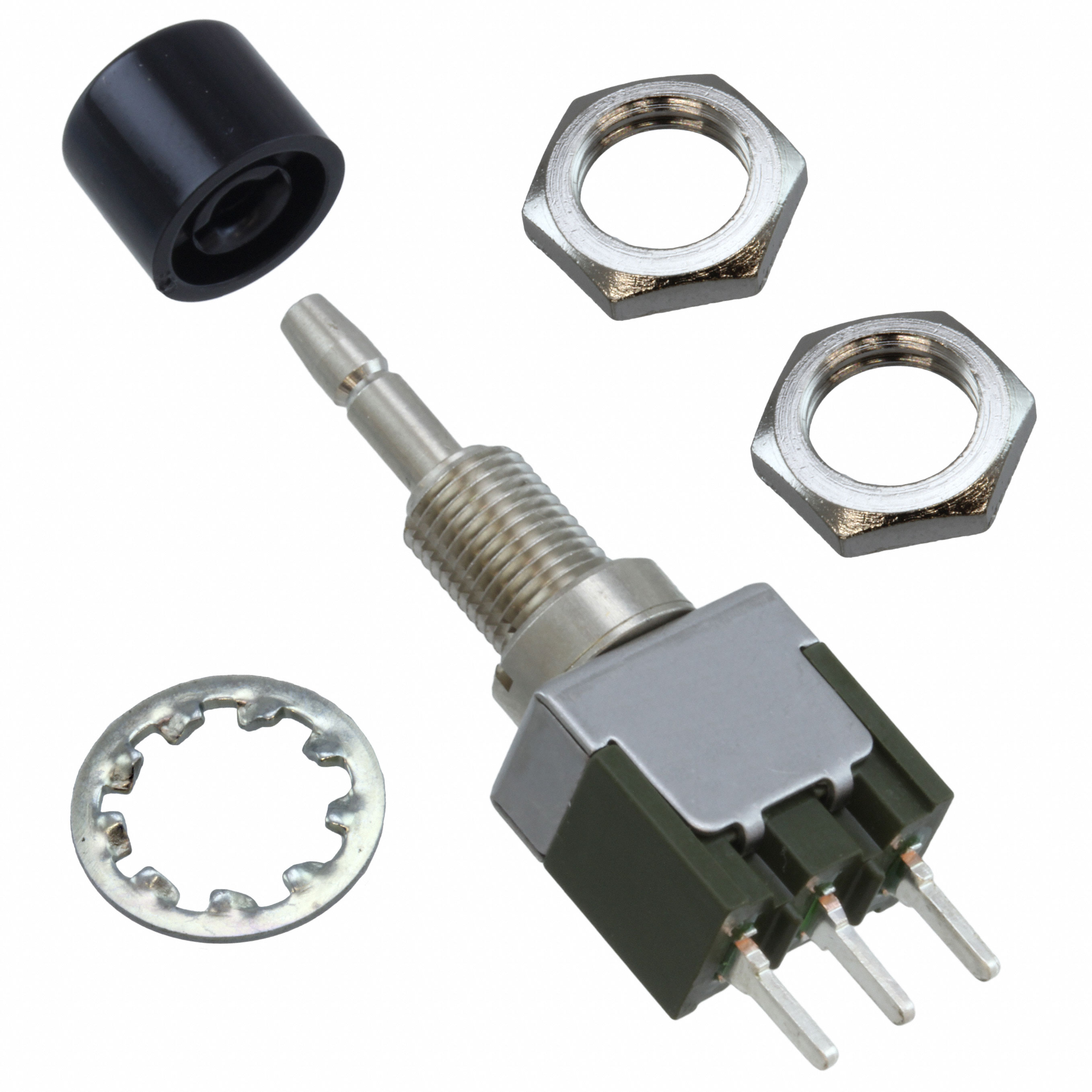

The MB2011LS1W03-CA is a pushbutton switch manufactured by NKK Switches, featuring SPDT (Single Pole Double Throw) circuit configuration with 6A AC and 3A DC current ratings. This component is designed for panel mount, rear installation applications with a circular 6.50mm diameter cutout. The product is currently obsolete, making identification of compatible substitute parts essential for ongoing maintenance, repair, and legacy system support.

Substiute Parts

MB2011LS1W03-CA

NKK SwitchesIn Stock: 1607MB2011LS1W03-CA Datasheet

Current PartRFQ

MBN15LS1W03-CA

NKK SwitchesIn Stock: 972MBN15LS1W03-CA Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The MB2011LS1W03-CA has been identified with one manufacturer-recommended substitute: MBN15LS1W03-CA, also manufactured by NKK Switches. Substitution eligibility is determined by the following critical parameters:

• Circuit configuration (SPDT)
• Current and voltage ratings (6A AC / 125V AC; 3A DC / 30V DC)
• Mounting type (Panel Mount, Rear)
• Actuator type (Round, Button)
• Termination style (PC Pin)
• Panel cutout dimensions (Circular - 6.50mm Dia)
• Operating temperature range (-30°C ~ 85°C)
• RoHS3 compliance status

The substitute part maintains compatibility across these electrical and mechanical parameters, enabling direct functional replacement in legacy applications.

Parameter Comparison

Engineering Selection Recommendations

The MBN15LS1W03-CA is the manufacturer-recommended substitute for the obsolete MB2011LS1W03-CA. Selection of this substitute is supported by:

• Active product status, ensuring ongoing availability and supply chain continuity
• ROHS3 compliance alignment with the original component
• Identical termination style (PC Pin) for direct PCB integration
• Manufacturer validation of electrical and mechanical compatibility

For applications requiring the MB2011LS1W03-CA, the MBN15LS1W03-CA provides a qualified replacement path that maintains system functionality and regulatory compliance.

Frequently Asked Questions (FAQ)

Q: Why is the MB2011LS1W03-CA marked as obsolete?

A: The MB2011LS1W03-CA has reached end-of-life status. NKK Switches has designated the MBN15LS1W03-CA as the active replacement, which maintains the same electrical and mechanical specifications.

Q: Can the MBN15LS1W03-CA be used as a direct replacement?

A: Yes. The MBN15LS1W03-CA is the manufacturer-recommended substitute and shares identical termination style, circuit configuration, and rated electrical parameters with the original MB2011LS1W03-CA.

Q: Are there any differences in packaging or handling?

A: Both components are supplied in bulk packaging. The MBN15LS1W03-CA has a Moisture Sensitivity Level designation of Not Applicable, compared to MSL 1 (Unlimited) for the original part. This indicates improved moisture resistance in the substitute.

Q: What are the key electrical parameters to verify during substitution?

A: Verify that the replacement maintains 6A AC / 125V AC and 3A DC / 30V DC ratings, SPDT circuit configuration, and PC Pin termination for compatibility with existing circuit designs and PCB layouts.

Q: Is the substitute part RoHS compliant?

A: Yes. The MBN15LS1W03-CA is ROHS3 compliant, matching the regulatory status of the original MB2011LS1W03-CA.
