MAL214855152E3 Equivalent & Substitute Parts

Part Overview

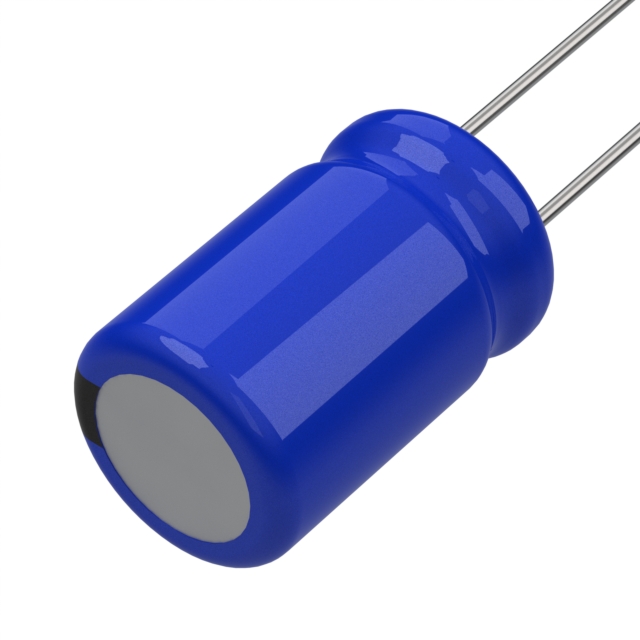

The MAL214855152E3 is a 1500 µF, 16 V aluminum electrolytic capacitor in radial, can package manufactured by Vishay Beyschlag/Draloric/BC Components. This component is rated for 2000 hours at 105°C and is designed for general-purpose applications requiring polarized energy storage and filtering.

The part is currently active in production. Substitute parts are necessary when the original manufacturer part becomes unavailable, when extended operational lifetime is required, or when improved electrical performance characteristics are needed for specific circuit requirements.

Key Parameters

Parameter	Value
Capacitance	1500 µF
Tolerance	±20%
Voltage Rating	16 V
Lifetime @ 105°C	2000 Hrs
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Package Type	Radial, Can
Lead Spacing	0.197" (5.00 mm)
Case Diameter	0.394" (10.00 mm)
Height (Seated Max)	0.866" (22.00 mm)
Mounting Type	Through Hole
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitute parts for the MAL214855152E3 are qualified based on the following criteria:

Electrical Parameters (Must Match):

Capacitance: 1500 µF
Tolerance: ±20%
Voltage Rating: 16 V
Polarization: Polar

Mechanical Parameters (Must Match):

Package Type: Radial, Can
Lead Spacing: 0.197" (5.00 mm)
Case Diameter: 0.394" (10.00 mm)
Mounting Type: Through Hole

Performance Parameters (May Exceed):

Lifetime @ 105°C: Equal to or greater than 2000 hours
Operating Temperature Range: Equal to or wider than -40°C ~ 105°C
Impedance: Lower values indicate improved performance
Ripple Current: Higher values indicate improved performance

All substitute parts listed maintain identical electrical and mechanical specifications while offering equal or superior performance characteristics. Substitutes are grouped by manufacturer and series designation.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Capacitance	Voltage	Lifetime @ 105°C	Operating Temp Range	Impedance	Ripple Current @ 120 Hz	Product Status
MAL214855152E3	Vishay Beyschlag/Draloric/BC Components	148 RUS	1500 µF	16 V	2000 Hrs	-40°C ~ 105°C	130 mOhms	720 mA	Active
16JXF1500MEFC10X20	Rubycon	JXF	1500 µF	16 V	6000 Hrs	-55°C ~ 105°C	45 mOhms	894 mA	Active
16ZLH1500MEFC10X20	Rubycon	ZLH	1500 µF	16 V	10000 Hrs	-40°C ~ 105°C	20 mOhms	1.176 A	Active
16ZLJ1500M10X20	Rubycon	ZLJ	1500 µF	16 V	10000 Hrs	-40°C ~ 105°C	28 mOhms	1.5 A	Active
16ZLS1500MEFC10X20	Rubycon	ZLS	1500 µF	16 V	6000 Hrs	-40°C ~ 105°C	20 mOhms	1.176 A	Active
EEU-FR1C152	Panasonic Electronic Components	FR-A	1500 µF	16 V	10000 Hrs	-40°C ~ 105°C	20 mOhms	1.744 A	Active
EKYB160ELL152MJ20S	Chemi-Con	KYB	1500 µF	16 V	10000 Hrs	-40°C ~ 105°C	37 mOhms	990 mA	Active
EKZM160ELL152MJ20S	Chemi-Con	KZM	1500 µF	16 V	10000 Hrs	-40°C ~ 105°C	20 mOhms	1.176 A	Active
ELZA160ELL152MJ20S	Chemi-Con	LZA	1500 µF	16 V	4000 Hrs	-55°C ~ 105°C	35 mOhms	930 mA	Active
UHV1C152MPD	Nichicon	UHV	1500 µF	16 V	6000 Hrs	-40°C ~ 105°C	19 mOhms	1.296 A	Not For New Designs
UHW1C152MPD	Nichicon	UHW	1500 µF	16 V	10000 Hrs	-40°C ~ 105°C	19 mOhms	1.5 A	Not For New Designs

Engineering Selection Recommendations

For Active Production Designs: Select from parts with Active product status: 16JXF1500MEFC10X20, 16ZLH1500MEFC10X20, 16ZLJ1500M10X20, 16ZLS1500MEFC10X20, EEU-FR1C152, EKYB160ELL152MJ20S, EKZM160ELL152MJ20S, or ELZA160ELL152MJ20S.

For Extended Operational Lifetime: Parts rated for 10000 hours at 105°C provide five times the operational lifetime of the original MAL214855152E3: 16ZLH1500MEFC10X20, 16ZLJ1500M10X20, EEU-FR1C152, EKYB160ELL152MJ20S, EKZM160ELL152MJ20S, and UHW1C152MPD.

For Improved Electrical Performance: Parts with lower impedance values (20 mOhms or less) provide superior high-frequency performance: 16ZLH1500MEFC10X20, 16ZLS1500MEFC10X20, EEU-FR1C152, EKZM160ELL152MJ20S, UHV1C152MPD, and UHW1C152MPD.

For Automotive Applications: ELZA160ELL152MJ20S carries AEC-Q200 qualification and is rated for automotive use with extended temperature range (-55°C ~ 105°C).

For Extended Temperature Range: Parts supporting -55°C minimum operating temperature: 16JXF1500MEFC10X20 and ELZA160ELL152MJ20S.

Compliance Considerations: All listed parts are ROHS3 compliant. UHV1C152MPD carries REACH Affected status; all other parts are REACH Unaffected.

Frequently Asked Questions (FAQ)

Q: Can I substitute MAL214855152E3 with any of the listed parts? A: Yes. All listed substitute parts maintain identical capacitance (1500 µF), voltage rating (16 V), tolerance (±20%), and mechanical dimensions. They are direct electrical and mechanical equivalents for through-hole PCB applications.

Q: What is the difference between the original part and the substitutes? A: The primary differences are operational lifetime at 105°C, impedance characteristics, and ripple current handling. The original MAL214855152E3 is rated for 2000 hours at 105°C. Most substitutes offer 6000 to 10000 hours at the same temperature, with lower impedance values providing improved high-frequency performance.

Q: Which substitute offers the best performance? A: Performance depends on application requirements. For maximum operational lifetime, select 16ZLH1500MEFC10X20, 16ZLJ1500M10X20, EEU-FR1C152, EKYB160ELL152MJ20S, EKZM160ELL152MJ20S, or UHW1C152MPD (all rated 10000 hours at 105°C). For lowest impedance and highest ripple current capability, select EEU-FR1C152 or EKZM160ELL152MJ20S.

Q: Are there any parts I should avoid? A: UHV1C152MPD and UHW1C152MPD are marked "Not For New Designs." These parts are suitable for replacement in existing designs but should not be selected for new product development. UHV1C152MPD also carries REACH Affected status.

Q: Do all substitutes fit the same PCB footprint? A: Yes. All substitute parts share identical lead spacing (0.197" / 5.00 mm), case diameter (0.394" / 10.00 mm), and through-hole mounting type. Maximum seated heights vary slightly (0.846" to 0.866"), but all fit standard radial capacitor footprints designed for 10 mm diameter cans.

Q: Which substitute is best for automotive applications? A: ELZA160ELL152MJ20S is qualified to AEC-Q200 automotive standard and supports extended temperature range (-55°C ~ 105°C). This part is specifically designed for automotive circuit requirements.

Q: Can I use these substitutes in high-ripple-current applications? A: Yes. Most substitutes handle higher ripple currents than the original part. At 120 Hz, the original MAL214855152E3 handles 720 mA. Substitutes range from 894 mA to 1.744 A. For high-frequency ripple current (100 kHz), substitutes handle 1.55 A to 2.5 A compared to the original specification.
