Part Overview

The TE Connectivity Laird MAF94062 is a dual-band whip tilt RF antenna designed for 802.11ABG wireless applications. This antenna operates across two frequency bands: 2.4GHz to 2.5GHz and 4.9GHz to 6GHz, utilizing U.FL (UMCC) and IPEX MHF1 connectors for base mount installation. The MAF94062 is classified as obsolete, making identification of functionally equivalent substitute components essential for ongoing system support, maintenance, and new design implementations where legacy compatibility is required.

Substiute Parts

MAF94062

TE Connectivity LairdIn Stock: 1115MAF94062 Datasheet

Current PartRFQ

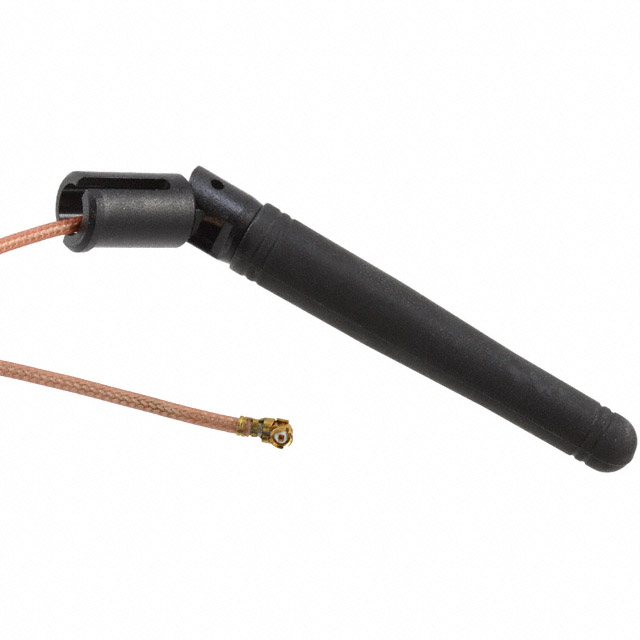

MAF94016

TE Connectivity LairdIn Stock: 1192MAF94016 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MAF94062 is determined by strict alignment of the following critical parameters:

Frequency Compatibility: The substitute part must operate across both the 2.4GHz ~ 2.5GHz and 4.9GHz ~ 6GHz frequency ranges to maintain dual-band 802.11ABG functionality.

Antenna Configuration: The substitute must employ whip and tilt antenna types to ensure mechanical and electrical performance equivalence.

Connector Type: Both U.FL (UMCC) and IPEX MHF1 terminations must be present to guarantee physical and electrical interface compatibility.

Mounting Interface: The substitute must support base mount installation to maintain system integration without mechanical redesign.

Electrical Performance: VSWR specification of 2 or better ensures impedance matching and signal integrity within acceptable parameters.

The MAF94016 meets all substitution criteria through identical frequency range coverage, matching antenna type configuration, equivalent connector specifications, and compatible mounting methodology.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: MAF94016

The MAF94016 is the designated equivalent substitute for the MAF94062. Both components share identical frequency range specifications (2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz), matching antenna type configuration (whip, tilt), and equivalent connector terminations (U.FL UMCC, IPEX MHF1). Both components carry obsolete product status and identical MSL ratings (1 - Unlimited), indicating equivalent environmental handling and storage requirements.

The MAF94016 provides specified gain values (2.5dBi, 3.4dBi) and includes a 100mm cable assembly, offering enhanced performance documentation compared to the MAF94062. The mounting interface transitions from base mount to snap-in configuration; this represents a functional upgrade that simplifies installation while maintaining mechanical compatibility within standard PCB-mounted antenna applications.

The height differential (95.90mm versus 80.00mm) falls within acceptable mechanical tolerance for most 802.11ABG system designs. Both components comply with identical ECCN and RoHS classifications where applicable, supporting regulatory and compliance requirements.

Frequently Asked Questions (FAQ)

Q: Can the MAF94016 directly replace the MAF94062 without PCB modification?

A: The MAF94016 snap-in mounting interface is functionally compatible with base mount applications. Mechanical integration requires verification of mounting hole spacing and clearance envelope. The 15.90mm height increase must be evaluated against system enclosure constraints.

Q: Are the frequency bands identical between MAF94062 and MAF94016?

A: Both components operate across the identical frequency range: 2.4GHz ~ 2.5GHz and 4.9GHz ~ 6GHz. Center frequency specifications differ slightly (2.45GHz/5.45GHz versus 2.4GHz/5.5GHz), but both fall within the required band allocations for 802.11ABG operation.

Q: What is the significance of the three-band designation for MAF94016 versus two-band for MAF94062?

A: The MAF94016 three-band specification reflects inclusion of Bluetooth frequency support (2.4GHz band) in addition to dual-band WiFi coverage. The MAF94062 two-band designation addresses WiFi-only operation. Both components maintain full 802.11ABG compatibility.

Q: Does the MAF94016 cable assembly affect substitution compatibility?

A: The 100mm cable assembly on the MAF94016 is an integrated feature that does not impact electrical substitution compatibility. Cable length must be evaluated against specific system routing requirements and connector placement within the target application.

Q: Are VSWR specifications comparable between these components?

A: The MAF94062 specifies VSWR of 2. The MAF94016 does not provide VSWR specification in available documentation. The MAF94062 baseline establishes acceptable impedance matching performance; the MAF94016 is qualified as an equivalent substitute based on identical frequency range and connector specifications.
