M830110 Equivalent & Substitute Parts

Part Overview

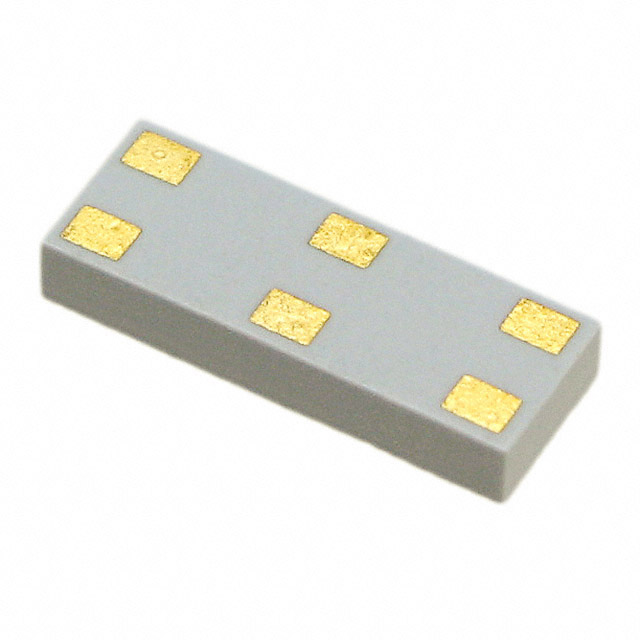

The M830110 is a chip RF antenna manufactured by Ethertronics/AVX, designed for multi-band navigation applications including Beidou, GLONASS, and GPS systems. Operating across the 1.561GHz to 1.602GHz frequency range, this component provides 1.78dBi gain with surface mount termination. The M830110 is currently classified as obsolete, making identification of suitable substitute components essential for ongoing system support and new design implementations.

Substiute Parts

M830110

Ethertronics/AVXIn Stock: 5160M830110 Datasheet

Current PartRFQ

M830120

Ethertronics/AVXIn Stock: 2280M830120 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the M830110 is determined by strict equivalence across the following critical parameters:

• Frequency Range: 1.561GHz ~ 1.602GHz
• Antenna Type: Chip
• Gain: 1.78dBi
• VSWR: 1.7
• Power - Max: 500 mW
• Mounting Type: Surface Mount
• Height (Max): 0.051" (1.30mm)
• Termination: Solder
• Applications: Beidou, GLONASS, GPS
• Moisture Sensitivity Level (MSL): 1 (Unlimited)

The M830120 meets all specified electrical and mechanical parameters required for direct substitution. Both components are manufactured by Ethertronics/AVX within the Savvi™ series and maintain identical performance characteristics across frequency response, gain, impedance matching, and physical form factor.

Parameter Comparison

Engineering Selection Recommendations

The M830120 is the direct equivalent substitute for the M830110. Both components maintain identical electrical performance and physical specifications across all critical parameters. The primary distinction is product status: the M830110 is obsolete while the M830120 is active, making the M830120 the appropriate selection for new designs and ongoing production requirements.

The M830120 is RoHS Compliant, providing additional regulatory compliance for applications subject to environmental standards. Current inventory availability of the M830120 (2200 Pcs) supports production requirements for systems previously designed around the M830110.

Frequently Asked Questions (FAQ)

Q: Can the M830120 be used as a direct replacement for the M830110?

A: Yes. The M830120 is a direct equivalent substitute. Both components share identical frequency range (1.561GHz ~ 1.602GHz), gain (1.78dBi), VSWR (1.7), power rating (500 mW), mounting type (Surface Mount), physical dimensions (0.051" maximum height), and termination method (Solder). No circuit modifications are required.

Q: What is the difference between the M830110 and M830120?

A: The primary difference is product status. The M830110 is obsolete, while the M830120 is active. The M830120 also carries RoHS Compliance certification. All electrical and mechanical specifications are identical.

Q: Are there packaging differences between these parts?

A: The M830110 packaging specification is not provided in the available data. The M830120 is supplied in Tape & Reel (TR) packaging. Confirm packaging requirements for your specific application.

Q: What applications are supported by the M830120?

A: The M830120 supports Beidou, GLONASS, and GPS navigation applications across the 1.561GHz to 1.602GHz frequency band, identical to the M830110.

Q: Is the M830120 suitable for new designs?

A: Yes. The M830120 is classified as active product status and is the recommended component for new designs requiring the electrical and mechanical specifications of the M830110.
