M80-9260422 Equivalent & Substitute Parts

Part Overview

The M80-9260422 is a surface mount rectangular connector header manufactured by Harwin Inc., part of the Datamate L-Tek series. This component is a 4-position, 2-row connector with 2.00mm pitch designed for board-to-board or cable applications. The part is currently listed as obsolete, making identification of functionally equivalent alternatives essential for ongoing design support and procurement planning.

Substiute Parts

M80-9260422

Harwin Inc.In Stock: 1170M80-9260422 Datasheet

Current PartRFQ

M80-8260442

Harwin Inc.In Stock: 1099M80-8260442 Datasheet

MFR RecommendedRFQ

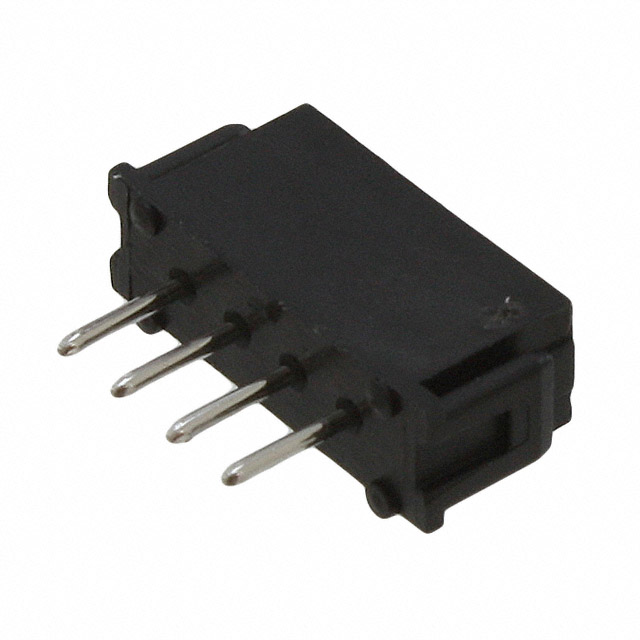

M80-8520442

Harwin Inc.In Stock: 1467M80-8520442 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the M80-9260422 is determined by the following critical parameters:

• Manufacturer series compatibility (Datamate L-Tek)
• Connector pitch (2.00mm mating pitch)
• Number of positions (4-position configuration)
• Contact type (Male Pin)
• Electrical ratings (2.2A current, 800V voltage)
• Operating temperature range (-55°C ~ 125°C)
• Material and compliance specifications (UL94 V-0, ROHS3, REACH Unaffected)

The two identified substitutes maintain these core electrical and mechanical parameters while differing in mounting technology and connector configuration type.

Parameter Comparison

Engineering Selection Recommendations

M80-8260442 is the manufacturer-recommended primary substitute. This part maintains surface mount technology identical to the M80-9260422 and carries active product status with full manufacturer support. Both parts share the same 2-row, 4-position configuration and are directly compatible from an electrical and mechanical standpoint. The M80-8260442 is available in tube packaging with 1031 units in stock.

M80-8520442 serves as an alternative substitute for applications where through-hole mounting is acceptable or preferred. This part transitions from surface mount to through-hole technology while maintaining the same electrical ratings, pitch, and contact specifications. The through-hole configuration requires PCB design modifications but offers different assembly and rework characteristics. The M80-8520442 differs in row configuration (1 row versus 2 rows) and includes different mated stacking height options. This part is also active with 1386 units in stock.

Both substitutes comply with ROHS3 and REACH requirements and maintain the same operating temperature range and flammability rating as the obsolete M80-9260422.

Frequently Asked Questions (FAQ)

Q: Can M80-8260442 be used as a direct replacement for M80-9260422?

A: Yes. Both parts are surface mount headers with identical pitch (2.00mm), position count (4), row configuration (2), and electrical ratings (2.2A, 800V). The M80-8260442 is the manufacturer-recommended substitute and requires no PCB design changes.

Q: What is the primary difference between M80-8260442 and M80-8520442?

A: The M80-8260442 is surface mount with 2 rows, while the M80-8520442 is through-hole with 1 row. Selection depends on PCB assembly technology and mechanical mounting requirements.

Q: Are all three parts compatible with the same mating connectors?

A: M80-9260422 and M80-8260442 share identical mating specifications and are directly compatible. M80-8520442, while maintaining the same pitch and position count, has different mated stacking heights due to its through-hole configuration and single-row layout.

Q: What compliance certifications apply to the substitute parts?

A: Both M80-8260442 and M80-8520442 are ROHS3 compliant, REACH unaffected, and rated UL94 V-0 for material flammability, matching the compliance profile of the obsolete M80-9260422.

Q: Are there packaging differences between the substitutes?

A: M80-8260442 is supplied in tube packaging. Both substitutes are available in active production with current inventory levels exceeding 1000 units.
