Equivalent & Substitute Parts for M80-6900598

Part Overview

The M80-6900598 is a 5-position rectangular receptacle connector housing manufactured by Harwin Inc. as part of the Datamate Trio-Tek series. This connector features a 2.00mm pitch, crimp termination, and latch lock fastening, designed for free-hanging in-line applications. The product is currently obsolete, making identification of equivalent and substitute parts essential for ongoing system support and component procurement.

Substiute Parts

M80-6900598

Harwin Inc.In Stock: 694M80-6900598 Datasheet

Current PartRFQ

M80-8980505

Harwin Inc.In Stock: 1610M80-8980505 Datasheet

MFR RecommendedRFQ

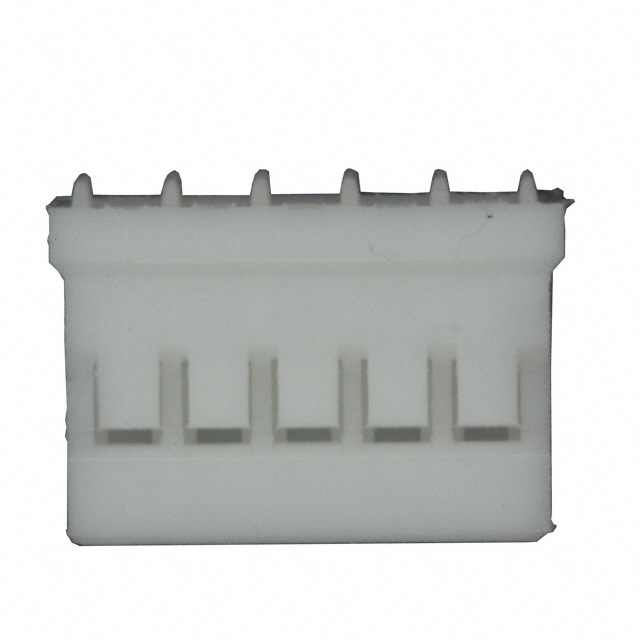

1775441-5

TE Connectivity AMP ConnectorsIn Stock: 10251775441-5 Datasheet

MFR RecommendedRFQ

0355070500

MolexIn Stock: 265790355070500 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the M80-6900598 is determined by the following critical parameters:

• Connector Type & Contact Type: Receptacle with female socket contacts
• Number of Positions: 5-position configuration
• Pitch: 0.079" (2.00mm) contact spacing
• Mounting Type: Free hanging in-line orientation
• Contact Termination: Crimp termination method
• Fastening Type: Latch lock mechanism
• Electrical & Environmental Compliance: RoHS3 compliance and MSL 1 rating

Three substitute parts are identified:

M80-8980505 (Harwin Inc., Datamate L-Tek series) — Manufacturer-recommended substitute with identical pitch, position count, and mounting configuration. Differs in fastening type (locking ramp vs. latch lock) and includes pre-terminated gold-plated contacts for 24-28 AWG wire.

1775441-5 (TE Connectivity AMP Connectors, High Performance Interconnect series) — Manufacturer-recommended substitute with 5-position receptacle configuration and crimp termination. Operates at different pitch (0.059" / 1.50mm), requiring mechanical redesign of mating interfaces.

0355070500 (Molex, Sherlock 35507 series) — Parametric equivalent with identical 2.00mm pitch, 5-position receptacle, and latch lock fastening. Maintains mechanical compatibility with the original part while offering active product status and higher inventory availability.

Parameter Comparison

Engineering Selection Recommendations

For Direct Mechanical Replacement (Preferred):

Select 0355070500 (Molex Sherlock 35507) when mechanical and electrical compatibility with existing mating connectors is required. This part maintains identical 2.00mm pitch and latch lock fastening, ensuring drop-in compatibility. The part is in active production status with robust inventory availability (26,551 units), supporting long-term supply chain stability. RoHS3 compliance and MSL 1 rating match the original specification.

For Harwin Ecosystem Continuity:

Select M80-8980505 (Harwin Datamate L-Tek) when remaining within the Harwin connector family is preferred. This part shares the same manufacturer and 2.00mm pitch but employs locking ramp fastening instead of latch lock. The part includes pre-terminated gold-plated contacts rated for 24-28 AWG wire, reducing assembly requirements. Active product status ensures ongoing availability.

For Pitch-Flexible Applications:

Select 1775441-5 (TE Connectivity High Performance Interconnect) only when system redesign accommodates the 0.059" (1.50mm) pitch specification. This substitution requires modification of mating connector interfaces and PCB layouts. The part is in active production with strong inventory levels (975 units). Operating temperature range (-55°C ~ 105°C) is slightly reduced compared to the original part.

All three substitutes maintain RoHS3 compliance and MSL 1 ratings, supporting regulatory and environmental requirements.

Frequently Asked Questions (FAQ)

Q: Can M80-8980505 directly replace M80-6900598 in existing assemblies?

A: M80-8980505 maintains the same 2.00mm pitch and 5-position configuration, enabling mechanical mating with existing connector pairs. However, the fastening mechanism differs (locking ramp vs. latch lock), which may affect engagement force and retention characteristics. Verify that the mating connector is compatible with the locking ramp design before implementation.

Q: What is the primary difference between M80-8980505 and 0355070500?

A: M80-8980505 is a pre-terminated connector housing with integrated gold-plated contacts for 24-28 AWG wire, while 0355070500 is a housing-only component requiring separate contact insertion. M80-8980505 uses locking ramp fastening; 0355070500 uses latch lock fastening. Both maintain 2.00mm pitch compatibility.

Q: Why does 1775441-5 have a different pitch specification?

A: 1775441-5 operates at 0.059" (1.50mm) pitch, which is a different contact spacing standard. This part cannot be used as a direct mechanical replacement without redesigning the mating connector interface and associated PCB layouts. Selection of this part requires system-level engineering review.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. M80-6900598, M80-8980505, and 0355070500 are all ROHS3 compliant. 1775441-5 carries RoHS compliance designation. All parts meet current regulatory requirements for restricted substance elimination.

Q: What is the MSL rating for these connectors?

A: All four parts (M80-6900598, M80-8980505, 1775441-5, and 0355070500) carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity limitations during storage or handling.

Q: Which substitute offers the best long-term supply availability?

A: 0355070500 (Molex) currently maintains the highest inventory level at 26,551 units, providing the strongest supply chain position for long-term procurement. M80-8980505 (Harwin) offers 1,556 units, and 1775441-5 (TE Connectivity) offers 975 units.

Q: Can I use these connectors interchangeably in new designs?

A: No. Each part has distinct mechanical and electrical characteristics. New designs should select a single connector family based on pitch requirements, fastening mechanism, and supply chain strategy. Mixing connector types within a single design introduces assembly complexity and potential compatibility issues.
