M80-330 Equivalent & Substitute Parts

Part Overview

The M80-330 is a rectangular connector pin contact with gold solder termination for PCB power applications, manufactured by Harwin Inc. as part of the Datamate Mix-Tek series. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure supply chain availability for new production and legacy system support.

Substiute Parts

M80-330

Harwin Inc.In Stock: 729M80-330 Datasheet

Current PartRFQ

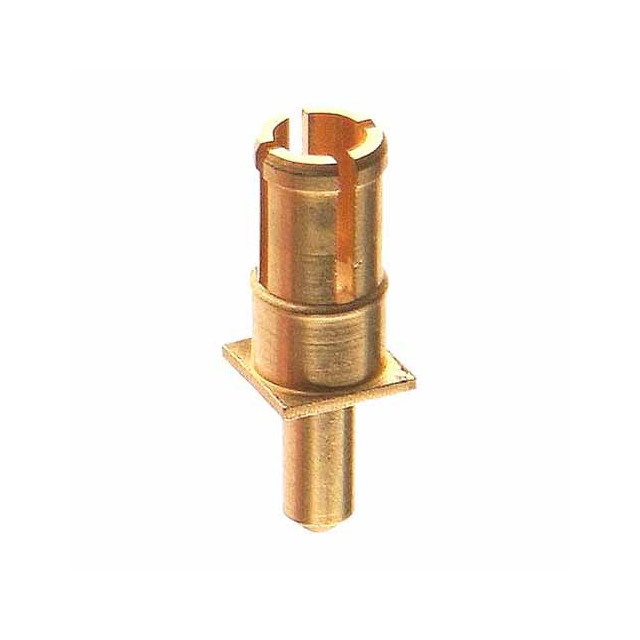

M80-331

Harwin Inc.In Stock: 917M80-331 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the M80-330 is determined by strict equivalence across the following critical parameters:

• Manufacturer and Series: Both parts must originate from Harwin Inc. within the Datamate Mix-Tek series to ensure mechanical and electrical compatibility within the connector ecosystem.
• Functional Type: Pin contact configuration for power applications.
• Contact Termination Method: Solder termination to PCB.
• Contact Finish: Gold plating for corrosion resistance and electrical performance.
• Moisture Sensitivity Level: MSL 1 classification indicating no moisture sensitivity constraints.
• REACH Compliance Status: REACH Unaffected designation must be maintained.

The M80-331 satisfies all substitution criteria as an active equivalent part within the same product family.

Parameter Comparison

Engineering Selection Recommendations

The M80-331 is the direct equivalent for the obsolete M80-330. Selection of the M80-331 provides the following advantages:

• Active Product Status: The M80-331 maintains active manufacturing status, ensuring long-term availability and supply chain reliability.
• Regulatory Compliance: The M80-331 achieves ROHS3 compliance, meeting current environmental and regulatory requirements for new designs and production environments subject to RoHS directives.
• Functional Equivalence: Identical electrical and mechanical specifications across all critical parameters ensure direct substitution without design modification.
• Inventory Availability: Current stock levels support immediate procurement for both new production and legacy system maintenance.

Frequently Asked Questions (FAQ)

Q: Can the M80-331 be used as a direct replacement for the M80-330 in existing designs?

A: Yes. The M80-331 maintains identical specifications for pin configuration, contact termination, contact finish, and moisture sensitivity classification. Direct substitution is supported without circuit or mechanical redesign.

Q: What is the primary reason for transitioning from M80-330 to M80-331?

A: The M80-330 is classified as obsolete. The M80-331 is the active equivalent within the Datamate Mix-Tek series, ensuring continued availability and compliance with current manufacturing standards.

Q: Are there any compliance differences between the M80-330 and M80-331?

A: The M80-331 achieves ROHS3 compliance, whereas the M80-330 is RoHS non-compliant. Both parts maintain REACH Unaffected status. For applications subject to RoHS requirements, the M80-331 is the appropriate selection.

Q: What packaging options are available for the M80-331?

A: The M80-331 is supplied in bulk packaging format.

Q: Are the moisture sensitivity levels identical between both parts?

A: Yes. Both the M80-330 and M80-331 are classified as MSL 1 (Unlimited), indicating no moisture sensitivity constraints during storage or handling.
