M22R-EY-T2 Equivalent & Substitute Parts

Part Overview

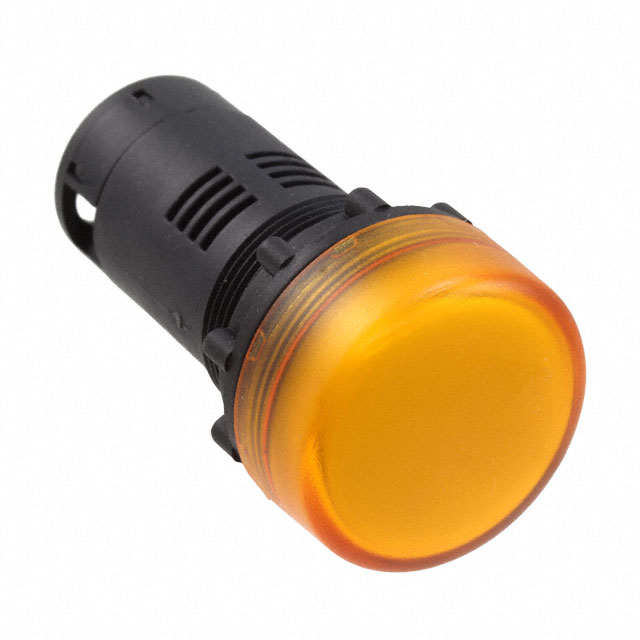

The M22R-EY-T2 is an LED panel indicator manufactured by Omron Automation and Safety, designed for 220V AC applications with yellow lamp output. This component is classified as obsolete, making identification of suitable substitute parts essential for system maintenance, repair, and new design implementations where equivalent functionality is required.

Substiute Parts

M22R-EY-T2

Omron Automation and SafetyIn Stock: 968M22R-EY-T2 Datasheet

Current PartRFQ

M22N-BC-TYA-YE

Omron Automation and SafetyIn Stock: 1064M22N-BC-TYA-YE Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The M22N-BC-TYA-YE qualifies as a functional substitute based on the following alignment of critical parameters:

Mechanical Compatibility: Both parts feature round panel cutout shapes with matching dimensions (0.88" / 22.30-22.35mm), enabling direct panel mounting without mechanical modification.

Functional Equivalence: Both components are LED panel indicators with yellow lamp output and round flat-top lens styling, providing identical visual signaling functionality.

Electrical Compatibility: The substitute operates at 230V AC, which falls within the acceptable tolerance range for 220V AC-rated equipment in industrial applications where nominal supply voltage variations are standard.

Environmental Protection: The substitute provides enhanced ingress protection (IP66, NEMA 4X, 13) compared to the original part (IP65), ensuring compatibility in equivalent or more demanding environmental conditions.

Regulatory Alignment: Both parts share identical ECCN (EAR99) and HTSUS (8541.41.0000) classifications, confirming equivalent regulatory treatment.

Parameter Comparison

Engineering Selection Recommendations

The M22N-BC-TYA-YE is the designated substitute for the obsolete M22R-EY-T2. Selection of this substitute is supported by:

Product Availability: The substitute is classified as Active, ensuring continued supply and long-term availability for production and maintenance applications.

Regulatory Compliance: The substitute carries ROHS3 compliance certification, meeting current environmental and material restriction requirements that may not apply to the obsolete original part.

Enhanced Environmental Protection: The substitute provides IP66, NEMA 4X, and 13 ratings, offering superior ingress protection suitable for applications requiring equivalent or higher environmental durability.

Mechanical and Functional Interchangeability: Matching panel cutout dimensions and lens geometry enable direct replacement without panel modification or mechanical redesign.

Frequently Asked Questions (FAQ)

Q: Can the M22N-BC-TYA-YE directly replace the M22R-EY-T2 in existing installations?

A: Yes. Both parts feature identical round panel cutout dimensions (0.88" / 22.30-22.35mm) and matching lens styles, enabling direct mechanical replacement without panel modification.

Q: What is the voltage difference between 220V and 230V, and does it affect compatibility?

A: The 10V difference represents a 4.3% variation within standard industrial AC supply tolerance ranges. Both ratings are compatible for equivalent applications where nominal supply voltage fluctuations are expected.

Q: Does the substitute provide better environmental protection?

A: Yes. The M22N-BC-TYA-YE provides IP66, NEMA 4X, and 13 ratings compared to the original IP65 rating, offering enhanced protection in demanding environmental conditions.

Q: What is the packaging difference between these parts?

A: The original part is supplied in standard packaging, while the substitute is supplied in bulk packaging. This affects order quantities and handling but does not impact functional or mechanical compatibility.

Q: Is the substitute RoHS compliant?

A: Yes. The M22N-BC-TYA-YE is ROHS3 compliant, meeting current environmental material restriction requirements.

Q: Are both parts subject to the same export classifications?

A: Yes. Both parts share identical ECCN (EAR99) and HTSUS (8541.41.0000) classifications, confirming equivalent regulatory treatment for export and trade purposes.
